Smooth Heavy Duty Polyurethane, PU, flexible, ultra-abrasion resistant hose; made from polyurethane, PU, liner, reinforced with Copper coated steel helix. PU liner = 4mm (max)
Product Description

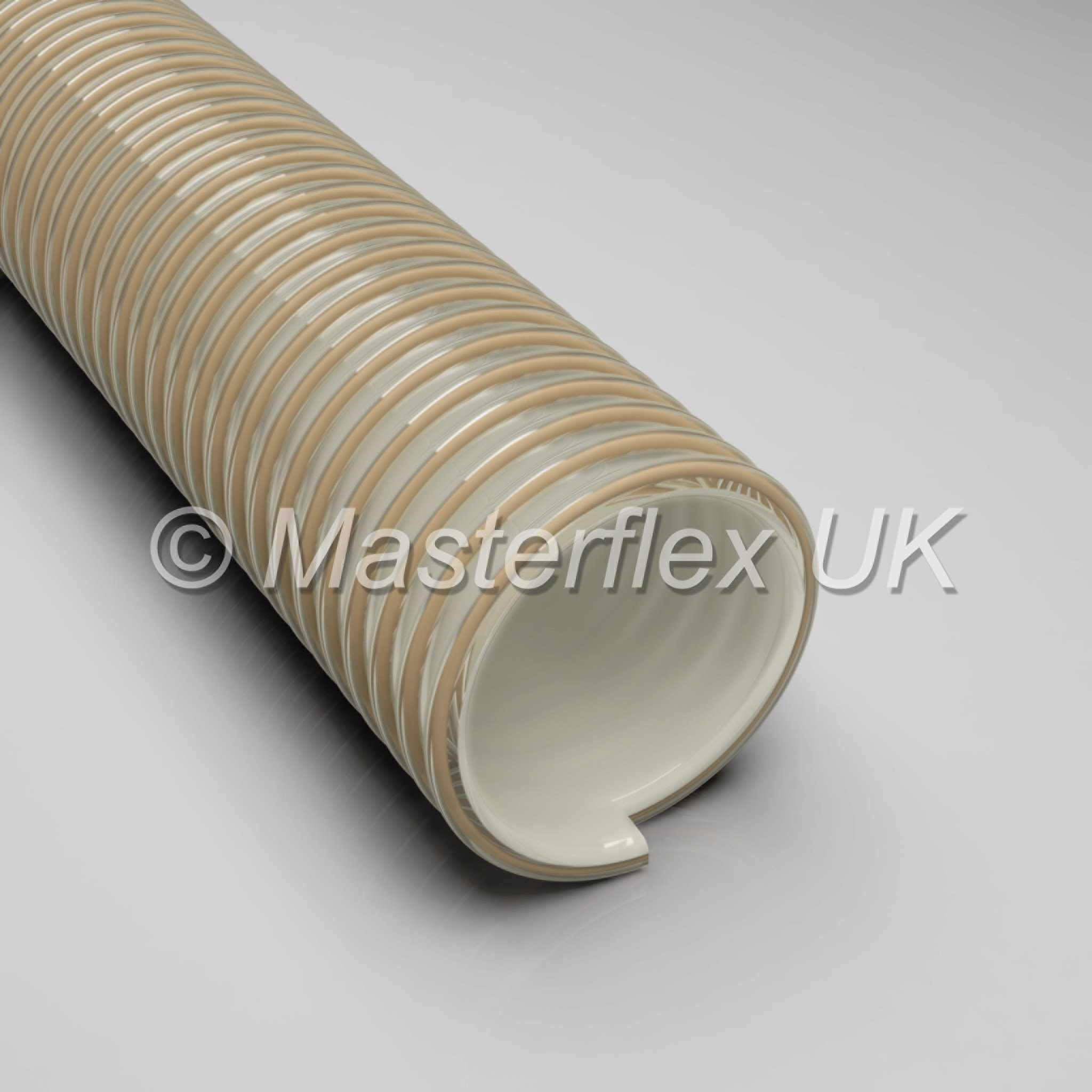

Master PUR Inline Description
This Smooth Bore Hose, Master PUR Inline, is ultra-abrasion resistant, very heavy duty with good flexibility; it is great for the transport of gravel, stones, aggregates, etc:
• Smooth Bore Hose
• Polyester polyurethane hose / PU Ducting
• Ultra-abrasion resistant Hose 60 Shore liner
• Reinforced with embedded copper-coated high tensile steel wire helix
• PU liner thickness = maximum 4mm
Properties
• Good flexibility
• Extremely abrasion resistant
• Microbe Resistant
• Seamless smooth bore
• Very heavy duty
Applications
• Transport of gravel
• Stones
• Aggregates
• Quarries
• Cement works
• Shipyards and docks
• Highest demands of service life and abrasion resistance
Colour
Translucent
Size Range
38mm to 200mm
Temp Range-40ºC to +90ºC (intermittent to +125ºC).
Options
Other lengths are available on request.
Master PUR Inline Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
| DN | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length | max. production length |
| bar | bar | mm | mm | kg | m | m | |||
| 38* | 4.65 | 0.94 | 150 | 56 | 1.72 | 119-038-x | 000195-038-x | 10 | 20 |
| 40* | 4.5 | 0.94 | 160 | 58 | 1.79 | 119-040-x | 000195-040-x | 10 | 20 |
| 50* | 4.16 | 0.94 | 196 | 69 | 1.65 | 119-050-x | 000195-050-x | 10 | 20 |
| 51 | 4,125 | 0.94 | 200 | 70 | 1.64 | 119-051-x | 000195-051-x | 10 | 20 |
| 65 | 3.9 | 0.94 | 300 | 85 | 2.02 | 119-065-x | 000195-065-x | 10 | 20 |
| 75* | 3.75 | 0.94 | 390 | 96 | 3.31 | 119-075-x | 000195-075-x | 10 | 20 |
| 76 | 3.75 | 0.94 | 400 | 97 | 3.44 | 119-076-x | 000195-076-x | 10 | 20 |
| 80 | 3,375 | 0.94 | 410 | 99 | 2.69 | 119-080-x | 000195-080-x | 10 | 20 |
| 100* | 3.03 | 0.94 | 428 | 120 | 4.24 | 119-100-x | 000195-100-x | 10 | 20 |
| 102 | 3 | 0.94 | 430 | 122 | 4.39 | 119-102-x | 000195-102-x | 10 | 20 |
| 115* | 2.6 | 0.94 | 440 | 136 | 4.9 | 119-115-x | 000195-115-x | 10 | 15 |
| 125* | 2.45 | 0.94 | 448 | 146 | 5.56 | 119-125-x | 000195-125-x | 10 | 15 |
| 127 | 2.4 | 0.94 | 450 | 148 | 5.69 | 119-127-x | 000195-127-x | 10 | 15 |
| 150* | 1.95 | 0.94 | 600 | 175 | 7.3 | 119-150-x | 000195-150-x | 10 | 15 |
| 152* | 1.95 | 0.94 | 600 | 175 | 7.3 | 119-152-x | 000195-152-x | 10 | 15 |
| 175* | 1.8 | 0.77 | 700 | 198 | 7.48 | 119-175-x | 000195-175-x | 10 | 10 |
| 180* | 1.65 | 0.75 | 700 | 202 | 7.68 | 119-180-x | 000195-180-x | 10 | 10 |
| 200 | 1.35 | 0.67 | 800 | 223 | 10.01 | 119-200-x | 000195-200-x | 10 | 10 |
| 203* | 1.35 | 0.67 | 800 | 227 | 10.2 | 119-203-x | 000195-203-x | 10 | 10 |
| 250* | 0.95 | 0.5 | 1000 | 271 | 12.07 | 119-250-x | 000195-250-x | 10 | 10 |
| 254* | 0.95 | 0.5 | 1000 | 275 | 12.1 | 119-254-x | 000195-254-x | 10 | 10 |
| All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. | |||||||||
Product Features
| Maximum Temperature | 90 ºC |
| Minimum Wall Thickness | 5.5 mm |
| Diameter Range | 38-254 mm |
