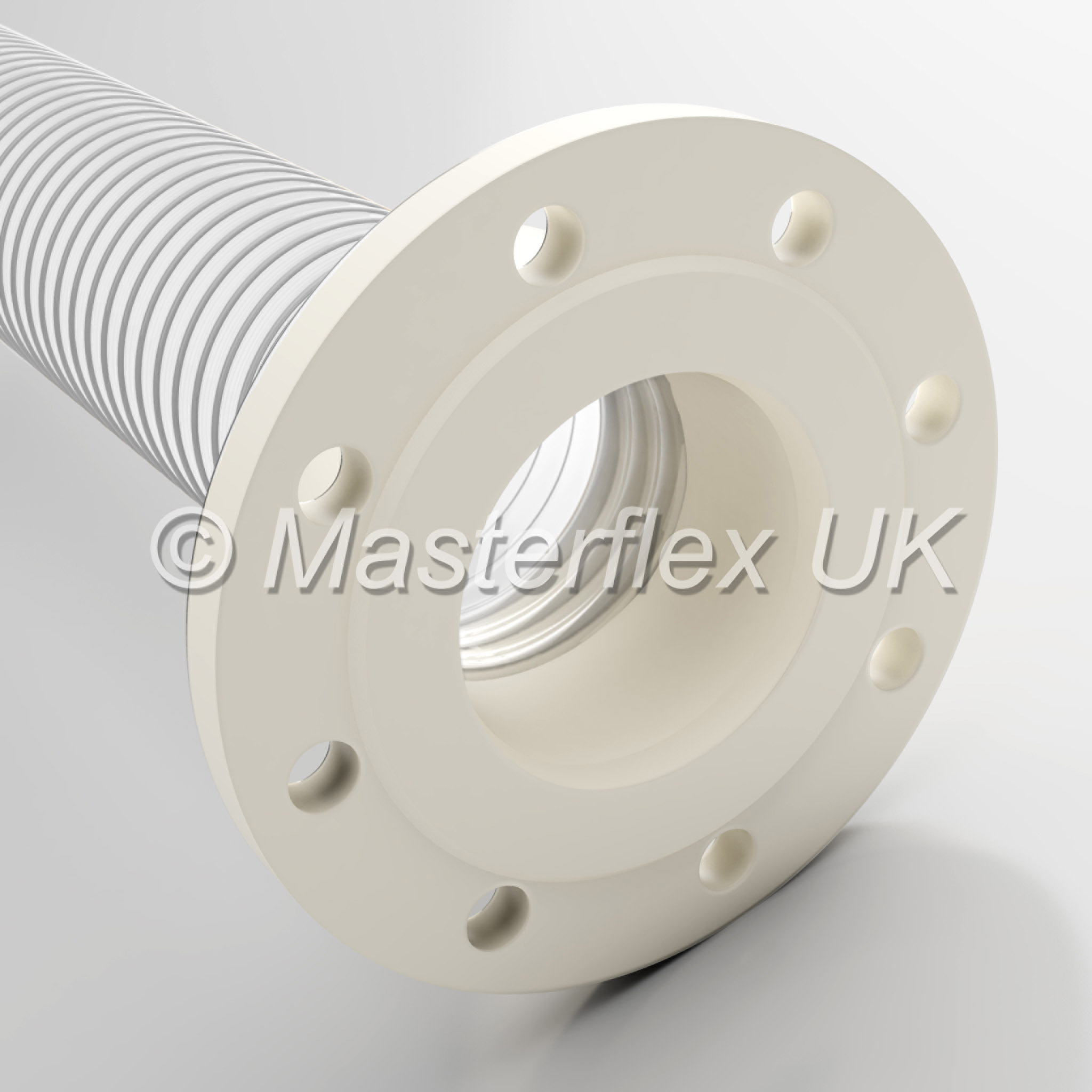

Product Description
Slip-On Food Flanges Material
food-grade polyurethane acc.to EU 10/2011 and BfR XXXIX
Applications
Slip-On Food Flanges for all Master-PUR Food hose types
Properties
• lightweight
• connection option without the adjustable constriction of the cross-section
• PU-sprue: approved for direct contact with foodstuffs according to EU directives 10/2011, 1935/2004 (German Consumer Goods Board) and their latest amendments 1282/2011, 1183/2012, 202/2014 and 2015/174 suitable for dry, watery, acidic, fatty as well as alcoholic foodstuffs (excluding spirits)
• high tension-proof
• simple mounting
• shock-proof
• abrasion, microbe and hydrolysis resistant
• pressure range PN 10/16
• dissipation of electrostatic charge via integrated earthing plate available for prefixed version
Temperature Range
• -40°C to +90°C
• peaks to +125°C
DN flange | pipe external dimension | DN hose | hole circle | weight/piece | Da: Outer Ø Cast part | total length | old article no. | new article no. |
mm | mm | kg | mm | mm | ||||
50 | 57 | 50 | 125 | 0.55 | 75 | 66 | 562-050-501 | 5502 |
50 | 60.3 | 50 | 125 | 0.55 | 75 | 66 | 562-050-502 | 1903 |
65 | 76.1 | 65 | 145 | 0.69 | 90 | 76 | 562-065-501 | 5515 |
65 | 76.1 | 70 | 145 | 0.69 | 105 | 76 | 562-070-501 | / |
80 | 88.9 | 75 | 160 | 0.85 | 105 | 76 | 562-075-501 | / |
80 | 88.9 | 80 | 160 | 0.85 | 105 | 76 | 562-080-501 | 5433 |
100 | 108 | 100 | 180 | 1.13 | 131 | 86 | 562-100-501 | 5617 |
100 | 114.3 | 100 | 180 | 1.13 | 131 | 86 | 562-100-502 | 5591 |
All data refers to a medium and ambient temperature of +20 °C. Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 90 °C |
Diameter Range | 50-100 mm |
