Carflex 300

Carflex 300 Hose

Carflex 300: Exhaust Gas Hose up to 300 °C with air; used in conventional exhaust fumes systems, e.g. hose reels, suction rail/stationary…

Product Description

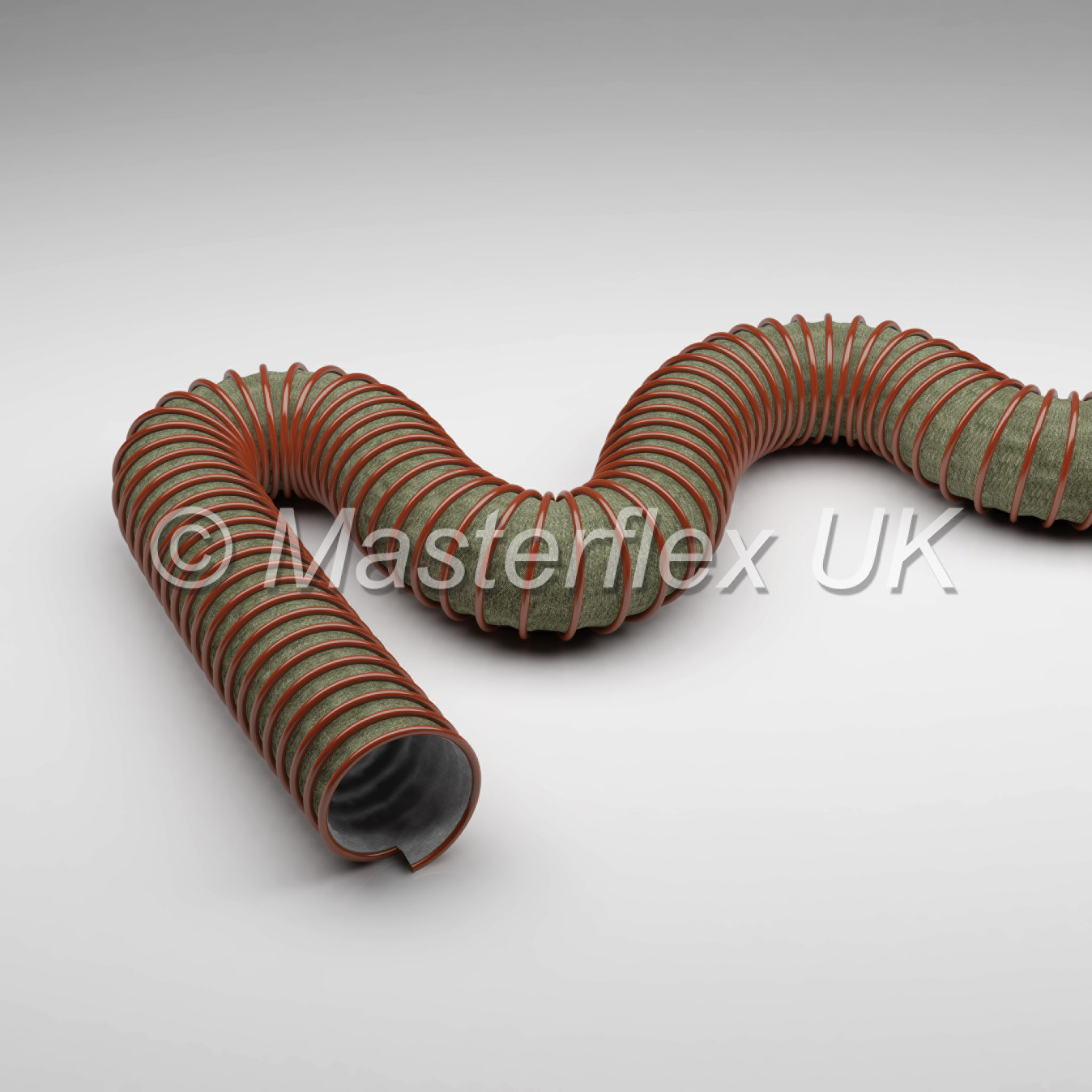

Carflex 300:

Material

1 clamp profile spiral: hot-dip galvanised steel band with additional plastic outer scuff-protection profile
2 wall: special-coated textile high-temperature fabric

Description

This Exhaust Hose is lightweight, highly flexible and robust, it is ideal for a reel or suspended applications and extraction of gasses up to 300ºC when used in conjunction with an extraction system:

• special coated high-temperature fabric ducting
• reinforced with galvanised steel helix
• additional plastic abrasion protector

Applications

• all conventional exhaust systems, such as – Exhaust Hose Reel – Suction Rail System – Upper/Lower Floor Systems – Stationary Systems
• suction of engine exhaust fumes up to max.+300 °C acc. to exhaust guidelines and sufficient fresh air intake (approximately 50%)
• medium and high wear during extraction of petrol and diesel engine exhaust fumes, especially heavy-duty and construction vehicles

Properties

• hardly inflammable
• outer chafing protection spiral
• robust & lightweight
• good flow characteristics
• extremely compressible to approx. 1:5
• vibration-proof
• withstands high mechanical loads
• high tension-proof connection of wall-lining and spiral via a special clamp mechanism
• highly flexible
• abrasion-resistant to soot particles from diesel exhaust fumes
• smallest bending radius

Colour

Green with red protector.

Size Range

63mm to 200mm.

Temp Range

from -60°C to +300 °C (Exhaust temperatures)with
appropriate use if exhaust regulators and sufficient
air supply (approx. 50%)

Options

• special diameters
• plastic abrasion protector available in other colours

Carflex 300 Hose Data Sheet

Download Masterflex Chemical Resistance Data Sheet

DNvacuumbend radiusouter Øweight/mold article no.new article no.standard
length
max. production length
barmmmmkgmm
630.1738760.55241-063-x000340-063-x1025
750.1446890.51241-075-x000340-075-x1025
800.1248930.51241-080-x000340-080-x1025
1000.08601170.64241-100-x000340-100-x1025
1250.05751420.79241-125-x000340-125-x1025
1500.04901671.23241-150-x000340-150-x1025
2000.021202171.67241-200-x000340-200-x1025
All data refers to a medium and ambient temperature of +20 °C.
* Available on request
Subject to technical changes and colour deviations.

Product Features

Maximum Temperature300 °C
Diameter Range50-900 mm
