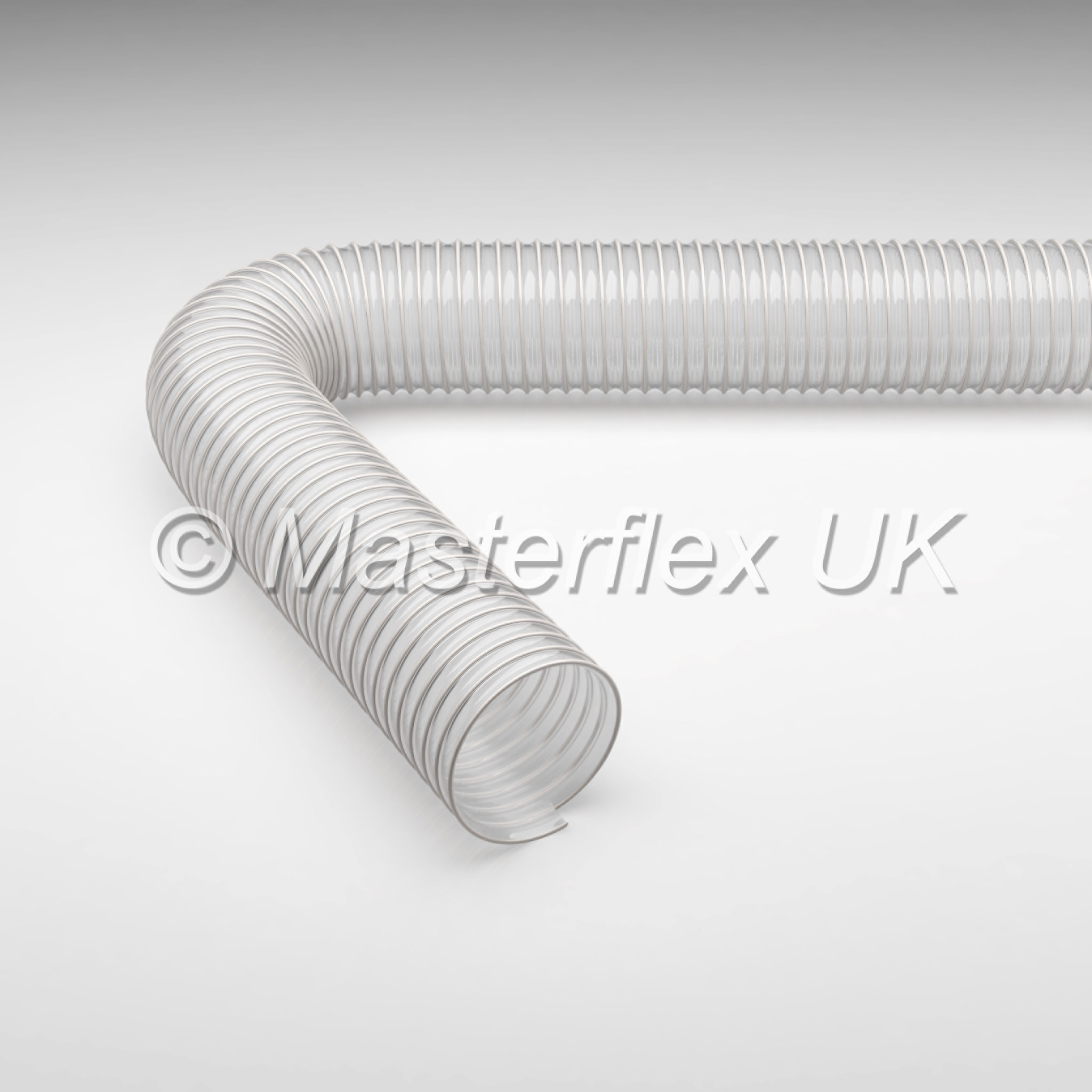

Flamex B-F H: Heavy Duty Abrasion-Resistant Suction & Transport Hoses made from PU; Hardly Inflammable.
Product Description
Flamex B-F H
Material
• spiral: spring steel wire
• wall: pure polyester polyurethane
• wall thickness: between spirals approx. 0.7 mm
Applications
• transport hose for abrasive solids
• wood processing machines
• shavings extractions in wood processing
• protective hose against mechanical wear
Properties
• symmetrical fold behaviour
• flexible
• halogen-free
• optimum flow characteristics
• extremely compressible to approx. 1:3
• heavy duty
• generally good UV and ozone resistance
• high tensile strength
• highly abrasion-resistant
• good resistance to chemicals, oil and fuel
Temperature Range
• -40°C to +90°C
• peaks to +125°C
Masterflex Chemical Resistance Sheet
DN | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length |
max. production length |
bar | bar | mm | mm | kg | m | m | |||
102* | 0.5 | 0.1 | 75 | 112 | 0.7 | 310H-100-x | 007571-100-x | 10 | 15 |
127* | 0.4 | 0.1 | 90 | 135 | 1 | 310H-125-x | 007571-125-x | 10 | 15 |
152* | 0.35 | 0.07 | 100 | 160 | 1.2 | 310H-150-x | 007571-150-x | 10 | 15 |
160* | 0.35 | 0.07 | 105 | 170 | 1.4 | 310H-160-x | 007571-160-x | 10 | 15 |
203* | 0.25 | 0.07 | 125 | 212 | 1.6 | 310H-200-x | 007571-200-x | 10 | 15 |
229* | 0.25 | 0.07 | 150 | 240 | 1.8 | 310H-225-x | 007571-225-x | 10 | 15 |
254* | 0.22 | 0.06 | 200 | 265 | 1.9 | 310H-250-x | 007571-250-x | 10 | 15 |
304* | 0.2 | 0.06 | 250 | 315 | 3 | 310H-300-x | 007571-300-x | 10 | 15 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 90 °C |
Minimum Wall Thickness | 0.7 mm |
Diameter Range | 102-304 mm |
