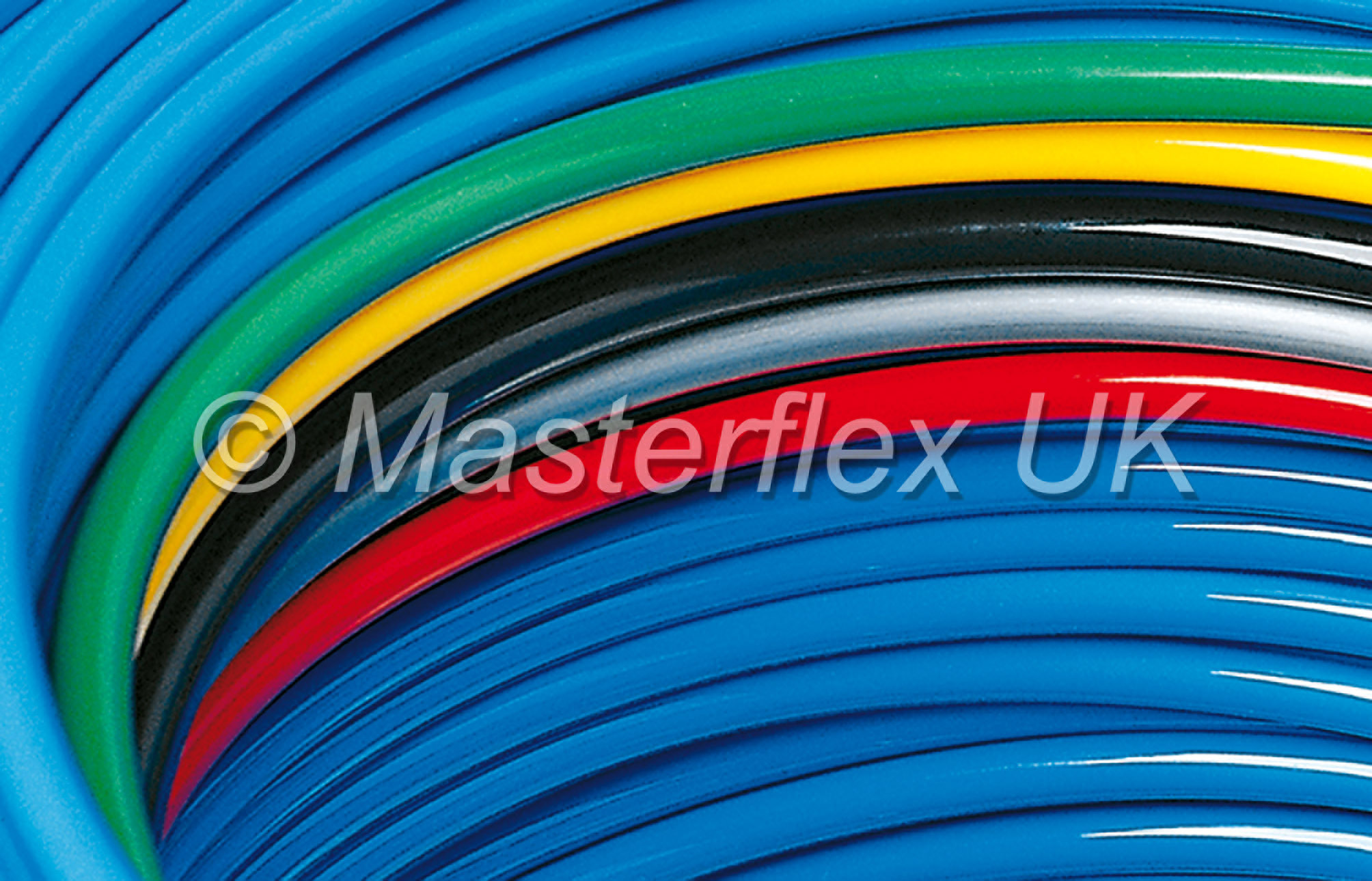

Flexible Pneumatic Tubing (Shore 98 A, Hard Polyurethane): Highly flexible at low temperatures; for control lines, machine manufacturing…
Product Description
Flexible Pneumatic Tubing:
Applications
• Pneumatic control lines
• Machine manufacturing
Properties
• lightweight
• high flexibility at low temperatures
• UV-resistant
• high elasticity
• good damping behaviour
• excellent abrasion resistance
• excellent resistance against tear propagation
• kink resistant
• oil and grease resistant
• ideally suited for push-in-connectors
• easily fitted
• available in a range of colours
• small bending radius
• unplasticized, no embrittlement
Temperature Range
• -40°C to +85°C
Standard Colours
• nature
• black
• blue
Polyurethane pneumatic tubing Shore 98 A Data Sheet
Masterflex Chemical Resistance Sheet
D* | wall thickness | OD* | Tolerance ID & OD |
weight/m | max. op. pressure resistance at 23°C | min. bend radius | article no |
mm | mm | mm | mm | g | bar | mm | |
2 | 1 | 4 | ± 0,10 | 11 | 20 | 20 | 10100-03040100 |
2,7 | 0,65 | 4 | ± 0,10 | 9 | 11 | 20 | 10100-04060100 |
3 | 1 | 5 | ± 0,10 | 15 | 15 | 25 | 10100-04530100 |
4 | 1 | 6 | ± 0,10 | 19 | 12 | 30 | 10100-06030100 |
5 | 1,5 | 8 | ± 0,10 | 37 | 13 | 40 | 10100-07560100 |
5,5 | 1,25 | 8 | ± 0,10 | 32 | 11 | 40 | 10100-08290100 |
5,7 | 1,15 | 8 | ± 0,10 | 30 | 10 | 40 | 10100-08550100 |
6 | 1 | 8 | ± 0,10 | 27 | 8 | 40 | 10100-09020100 |
6,5 | 1,75 | 10 | ± 0,10 | 55 | 12 | 50 | 10100-09780100 |
7 | 1,5 | 10 | ± 0,10 | 49 | 10 | 50 | 10100-10530100 |
8 | 1 | 10 | ± 0,10 | 34 | 6 | 50 | 10100-12020100 |
8 | 2 | 12 | ± 0,15 | 77 | 12 | 60 | 10100-12060100 |
9 | 1,5 | 12 | ± 0,15 | 60 | 8 | 60 | 10100-13530100 |
11 | 2,5 | 16 | ± 0,20 | 129 | 11 | 80 | 10100-16560100 |
All data refers to a medium and ambient temperature of +20 °C. * Refers to the inner hose lining Subject to technical changes and colour deviations |
Product Features
Maximum Temperature | 85 °C |
Diameter Range | 2-11 mm |
