Heat Shrink Cuff for easy connection and sealing of hoses.
Product Description

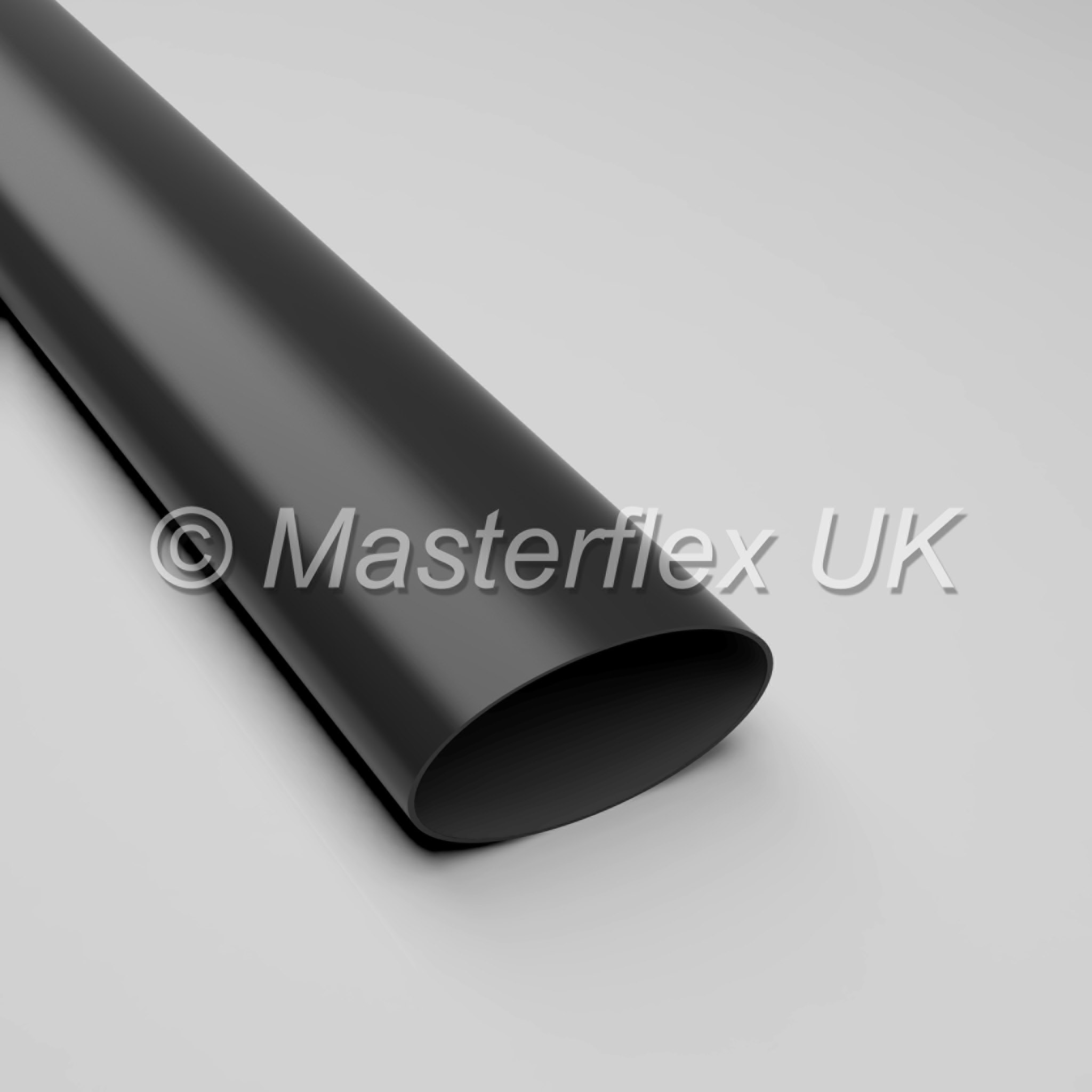

Heat Shrink Cuff
Material
Cross-linked polyolefine
Applications
Tight connection of spiral hoses or connector brackets with no technical effort required
Properties
• shrink ratio 3, 5:1
• flame-retardent
• cold resistant
• good UV resistance
• good chemical resistance
• easily adjustable to the desired length
Temperature Range
• -55°C to +110°C
Available on request
With hot-melt adhesive coating, special lengths, other shrink ranges.
| shrink range | length | old article no. | new article no. |
| mm | mm | ||
| 54 / 18 | 1200 | 655-054-118 | 2565 |
| 75 / 22 | 1000 | 655-075-022 | 2566 |
| 95 / 26 | 1200 | 655-095-026 | 2568 |
| 120 / 34 | 1000 | 655-120-034 | 2570 |
| 160 / 50 | 1000 | 655-160-150 | 2572 |
| 280 / 135 | 300 | 655-280-135 | 2578 |
| 308 / 215 | 300 | 655-308-215 | 2579 |
| 375 / 265 | 300 | 655-375-265 | 2580 |
| All data refers to a medium and ambient temperature of +20 °C. * Refers to the inner hose lining Subject to technical changes and colour deviations. |
|||
Product Features
| Maximum Temperature | 110 °C |
| Diameter Range | 18-375 mm |
| See also different: | Plastic Hose Connectors |
