Hinged Clamp: for clamp Connections per DIN 32676.
Product Description

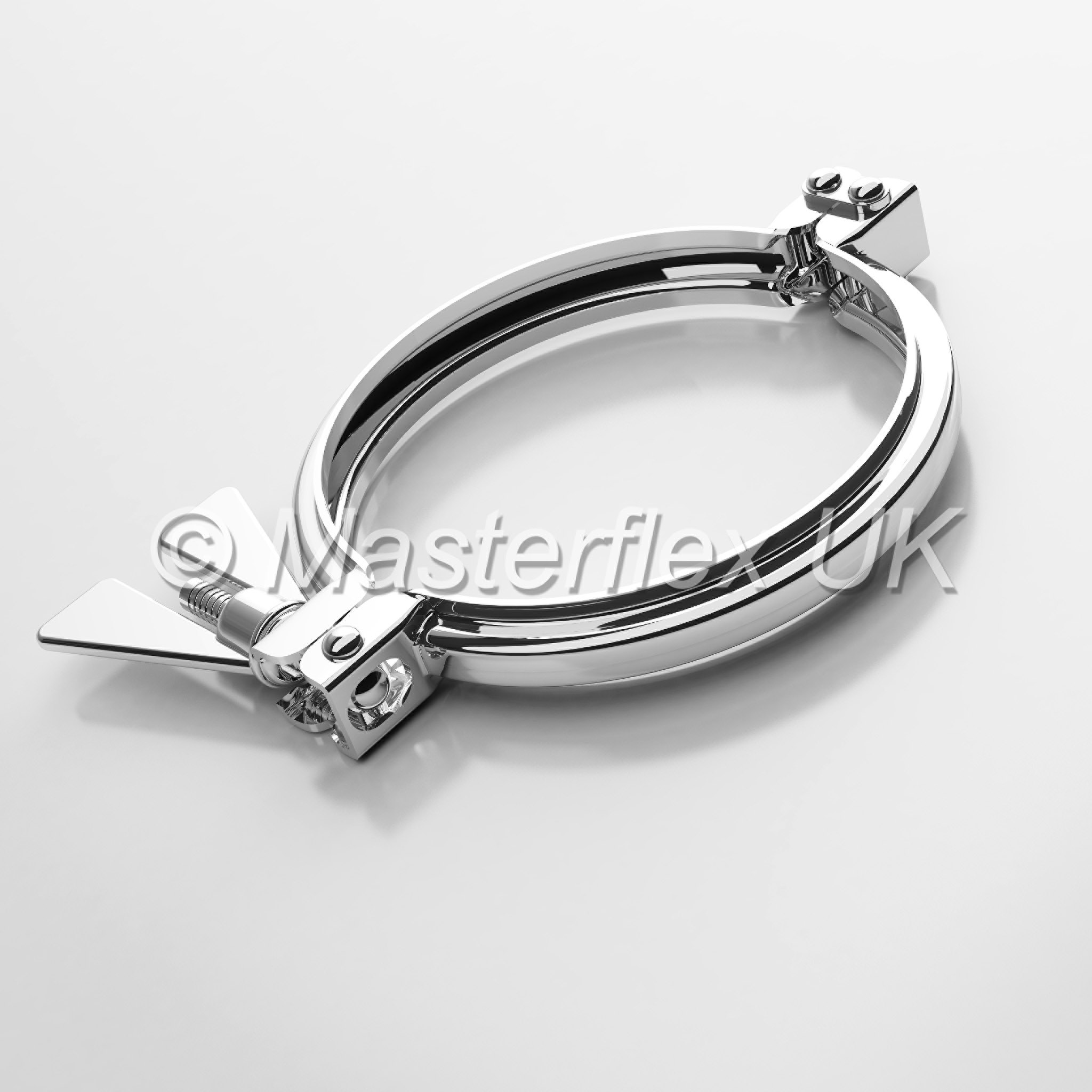

Hinged Clamp
Material
Stainless steel
Applications
• Fitting for solid, liquid and gaseous media in food, pharmaceuticals and chemicals industries
• for application for connectors to machines and piping
Properties
• materials adhere to the food-grade regulations DIN 32676 series A
• provides watertight connections
• odourless/tasteless
• good chemical resistance
• can be steam-sterilized
• high tensile strength
Available on request
In other sizes and materials.
| DN | weight/piece | old article no. | new article no. |
| kg | |||
| 32 | 0.23 | 647-032-804 | / |
| 40 | 2/9 | 647-040-804 | 2463 |
| 50 | 1/3 | 647-050-804 | 2466 |
| 65 | 1/3 | 647-065-804 | 2470 |
| 80 | 0.41 | 647-080-804 | 2474 |
| 100 | 2/5 | 647-100-804 | 2478 |
| 125 | 1.17 | 647-125-804 | 2481 |
| 150 | 1 1/3 | 647-150-804 | / |
| All data refers to a medium and ambient temperature of +20 °C. Subject to technical changes and colour deviations. |
|||
Product Features
| Diameter Range | 32-150 mm |
| See also different: | Metal Hose Connectors |
