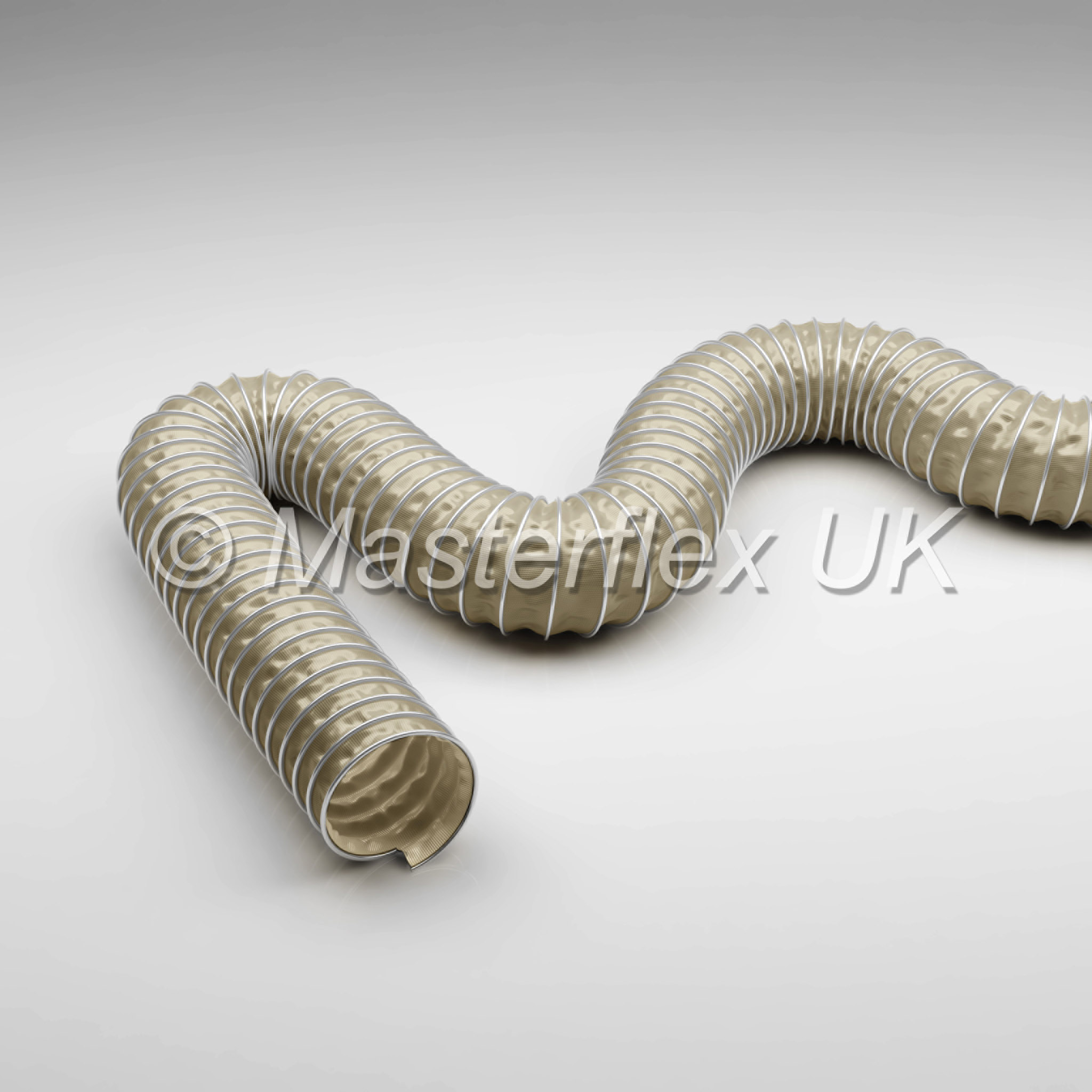

Master Clip PTFE: +250ºC Teflon flexible ducting, good for the extraction of corrosive gases, chemical and solvent fumes.
Product Description
Master Clip PTFE:
Description
We offer Chemical Resistant Hose that is great for the extraction of corrosive gasses and chemical fumes.
• PTFE coated glass fabric ducting
• Reinforced with external galvanised steel helix
Properties
• Highly flexible
• Outer helix protects against abrasion and scuffing during installation
• UV and ozone resistance and excellent chemical resistance
Applications
• Extraction of corrosive gases
• Chemical and solvent fumes
Colour
Beige
Size Range
50mm to 900mm
Temp Range
-50ºC to +250ºC (intermittent to +270ºC)
Options
• Special diameters
• Outer helix available in stainless steel
Master Clip PTFE Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
Learn More About Chemical Resistance
DN | op. pressure | vacuum | bend radius | weight/m | old article no. | new article no. | standard length | max. production length |
bar | bar | mm | kg | m | m | |||
50 | 0.85 | 0.31 | 30 | 0.4 | 250-050-x | 000354-050-x | 10 | 10 |
55 | 0.78 | 0.26 | 33 | 0.4 | 250-055-x | 000354-055-x | 10 | 10 |
60 | 0.68 | 0.22 | 36 | 0.5 | 250-060-x | 000354-060-x | 10 | 10 |
65 | 0.59 | 0.19 | 39 | 0.5 | 250-065-x | 000354-065-x | 10 | 10 |
70 | 0.53 | 0.16 | 42 | 0.5 | 250-070-x | 000354-070-x | 10 | 10 |
75 | 0.47 | 0.14 | 45 | 0.6 | 250-075-x | 000354-075-x | 10 | 15 |
80 | 0.43 | 0.12 | 48 | 0.6 | 250-080-x | 000354-080-x | 10 | 15 |
90 | 0.355 | 0.1 | 54 | 0.6 | 250-090-x | 000354-090-x | 10 | 15 |
100 | 0.3 | 0.08 | 60 | 0.6 | 250-100-x | 000354-100-x | 10 | 20 |
110 | 0.258 | 0.07 | 66 | 0.6 | 250-110-x | 000354-110-x | 10 | 20 |
120 | 0.224 | 0.06 | 72 | 0.7 | 250-120-x | 000354-120-x | 10 | 20 |
125 | 0.21 | 0.05 | 75 | 0.7 | 250-125-x | 000354-125-x | 10 | 20 |
130 | 0.197 | 0.05 | 78 | 0.7 | 250-130-x | 000354-130-x | 10 | 20 |
140 | 0.175 | 0.04 | 84 | 0.8 | 250-140-x | 000354-140-x | 10 | 20 |
150 | 0.157 | 0.04 | 90 | 0.8 | 250-150-x | 000354-150-x | 10 | 20 |
160 | 0.14 | 0.03 | 96 | 0.9 | 250-160-x | 000354-160-x | 10 | 20 |
170 | 0.128 | 0.03 | 102 | 0.9 | 250-170-x | 000354-170-x | 10 | 20 |
175 | 0.123 | 0.03 | 105 | 1 | 250-175-x | 000354-175-x | 10 | 20 |
180 | 0.117 | 0.02 | 108 | 1 | 250-180-x | 000354-180-x | 10 | 20 |
200 | 0.099 | 0.02 | 120 | 1.1 | 250-200-x | 000354-200-x | 10 | 20 |
215 | 0.088 | 0.02 | 151 | 1.2 | 250-215-x | 000354-215-x | 10 | 20 |
225 | 0.082 | 0.02 | 158 | 1.3 | 250-225-x | 000354-225-x | 10 | 20 |
250 | 0.069 | 0.01 | 175 | 1.4 | 250-250-x | 000354-250-x | 10 | 20 |
275 | 0.059 | 0.01 | 193 | 1.7 | 250-275-x | 000354-275-x | 10 | 20 |
300 | 0.052 | 0.01 | 210 | 1.9 | 250-300-x | 000354-300-x | 10 | 20 |
315 | 0.048 | 0.01 | 221 | 2 | 250-315-x | 000354-315-x | 10 | 20 |
325 | 0.046 | 0.01 | 228 | 2.1 | 250-325-x | 000354-325-x | 10 | 10 |
350 | 0.04 | 0.01 | 245 | 2.3 | 250-350-x | 000354-350-x | 10 | 10 |
375 | 0.036 | 0.01 | 263 | 2.7 | 250-375-x | 000354-375-x | 10 | 10 |
400 | 0.033 | 0.01 | 280 | 2.9 | 250-400-x | 000354-400-x | 10 | 10 |
450 | 0.027 | 0.01 | 360 | 3.5 | 250-450-x | 000354-450-x | 10 | 10 |
500 | 0.023 | 0.01 | 400 | 3.9 | 250-500-x | 000354-500-x | 10 | 10 |
550 | 0.02 | 0.01 | 440 | 4.4 | 250-550-x | 000354-550-x | 10 | 10 |
600 | 0.017 | 0.01 | 480 | 4.9 | 250-600-x | 000354-600-x | 10 | 10 |
700 | 0.014 | 0.01 | 560 | 5.8 | 250-700-x | 000354-700-x | 6 | 6 |
800 | 0.011 | 0.01 | 640 | 6.7 | 250-800-x | 000354-800-x | 6 | 6 |
900 | 0.009 | 0.01 | 720 | 7.6 | 250-900-x | 000354-900-x | 6 | 6 |
All data refers to a medium and ambient temperature of +20 °C. *Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 250 ºC |
Diameter Range | 50-900 mm |
