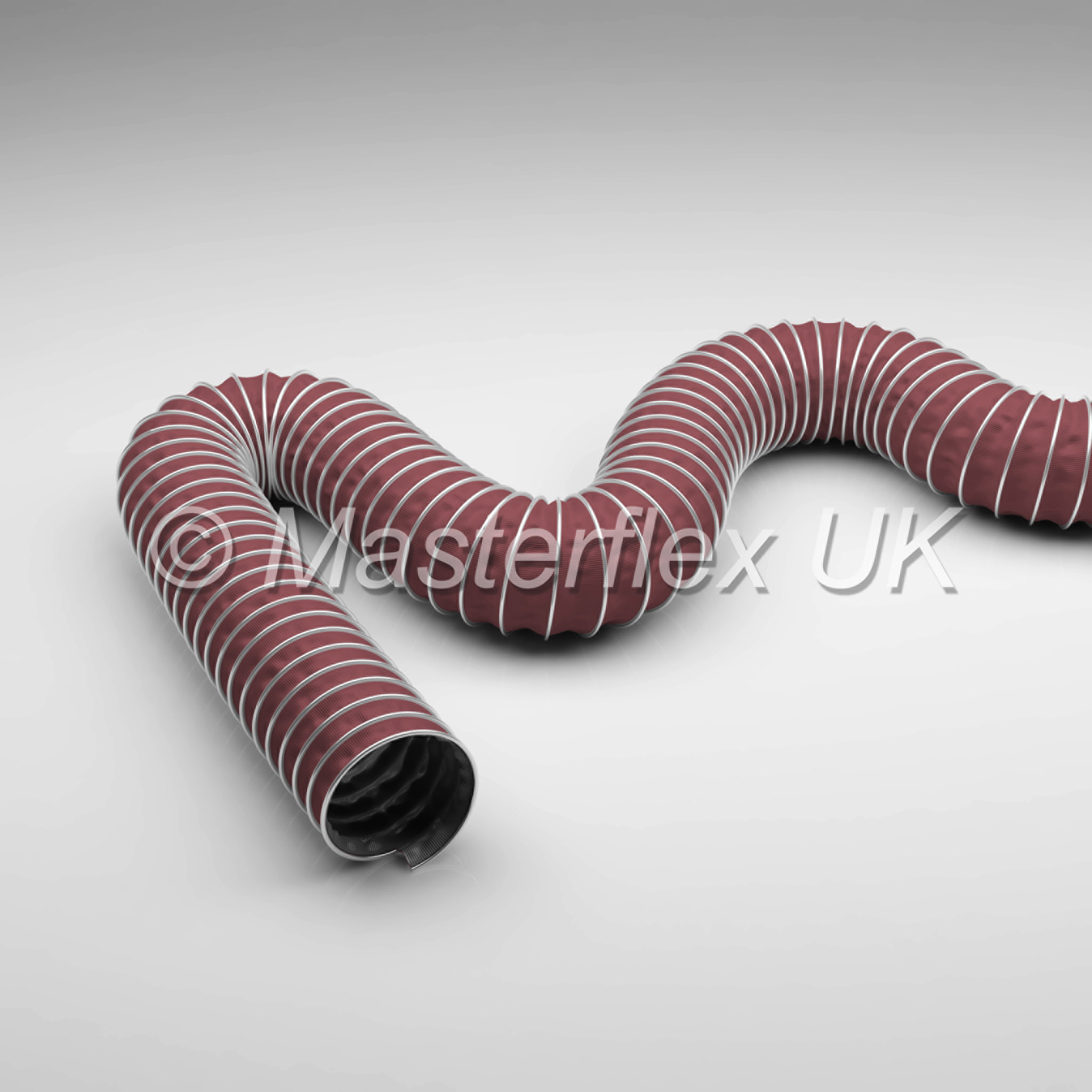

Master Clip VITON

Master Clip Viton Hose

Flexible ducting, Viton/polyester fabric ducting, external galvanised steel helix. +210ºC (Intermittent +240ºC); good for aggressive media and has good chemical resistance.

Product Description

Master Clip VITON

Material

1 clip profile spiral: hot-dip galvanised steel band
2 wall: Viton®-coated polyester fabric

Description

We offer Chemical Resistant Hose, for medium and high temperatures, which is great for the extraction of corrosive and explosive gasses and fumes.

• Chemical Resistant Hose
• Viton coated polyester fabric ducting
• External galvanised steel helix

Properties

• Highly flexible and compressible
• Outer helix protects against abrasion and scuffing
• very good chemical resistance
• increased temperature resistance
• extremely compressible to approx. 1:6
• outer chafing protection spiral
• vibration-proof
• smallest bending radius
• highly flexible
• high tension-proof connection of wall-lining and spiral via a special clamp mechanism
• tear-proof
• excellent UV / ozone resistance
• extremely lightweight

Applications

• Extraction of chemical and solvent fumes at high temperatures.

• paint mist extraction
• suction/extraction of aggressive media in the medium temperature range
• low pressure range
• chemicals industry

Colour

Red

Size Range

50mm to 900mm

Temp Range

• -25ºC to +210ºC

• peaks to +240°C

Options

• Special diameters
• Outer helix available in stainless steel

Master Clip VITON Hose Data Sheet

Download Masterflex Chemical Resistance Data Sheet

Learn More About Chemical Resistance

Product Features

Maximum Temperature210 ºC
Diameter Range50-900 mm
