Neoprene Coated, 1 Layer, DIN 75200 & FMVSS 302; good for applications in transit vehicles, shipbuilding, hot gaseous media…
Product Description

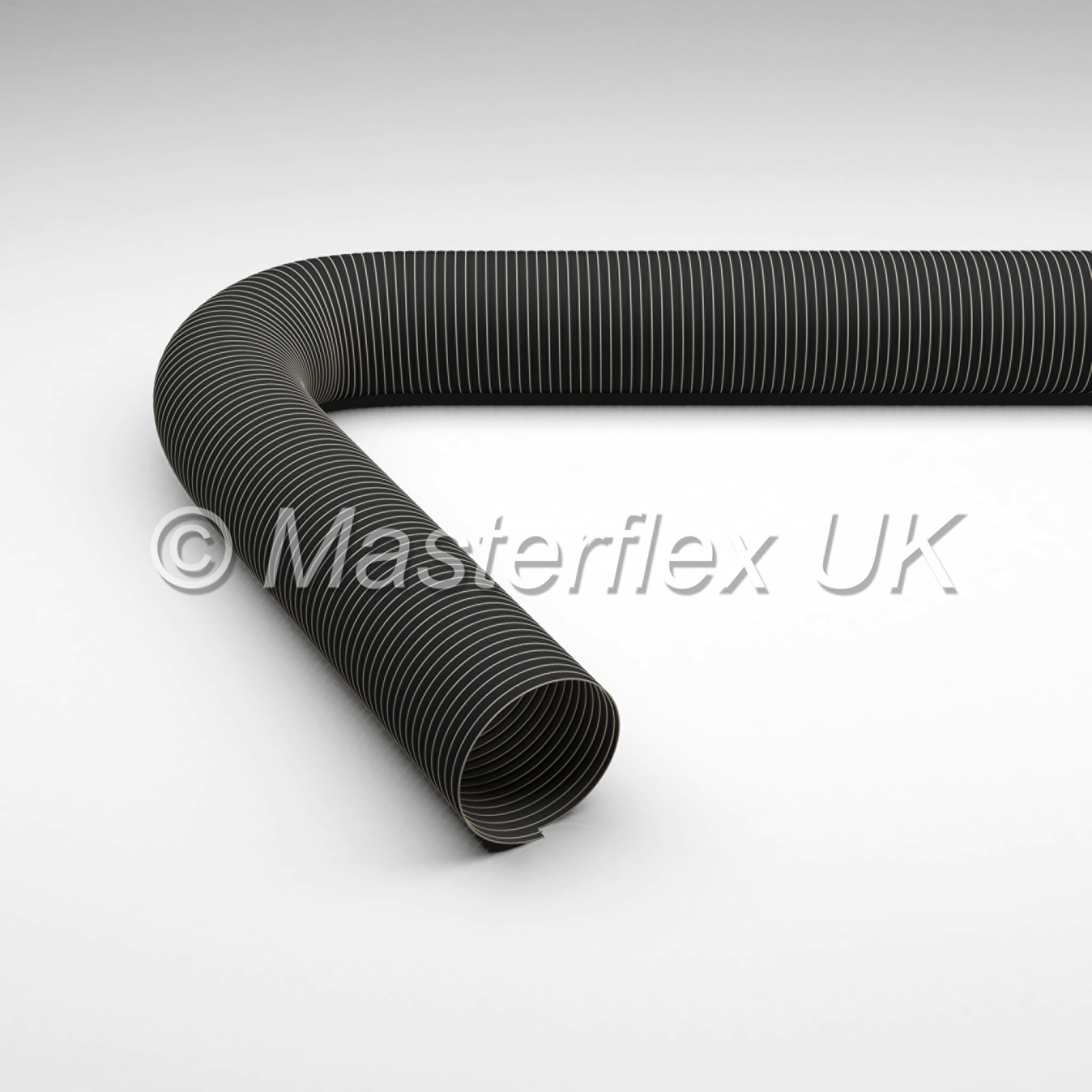

Master NEO 1
Description
Master NEO 1, ducting hose, is lightweight, highly flexible and kink-proof, it is great for industrial fumes, chemical fumes and much more.
• Single ply neoprene coated glass fabric ducting
• Reinforced internally with steel wire helix
• External glass cord
Properties
• Lightweight
• Highly flexible
• Kink-proof
Applications
• Hot and cold air
• Chemical fumes
• Industrial fumes
• Non-abrasive dust at low pressure
• Automotive
• Aerospace Ducting
Colour
Black
Size Range
13mm to 304mm
Temp Range
-35ºC to +135ºC (intermittent to +150ºC).
Download Masterflex Chemical Resistance Data Sheet
DN | op. pressure | vacuum | bend radius | weight/m | old article no. | new article no. | standard length |
max. production length |
bar | bar | mm | kg | m | m | |||
13* | 1.7 | 0.51 | 8 | 0.1 | 680-013-x | 000479-013-x | 4 | 4 |
19 | 1.6 | 0.5 | 8 | 0.11 | 680-019-x | 000479-019-x | 4 | 4 |
22 | 1.6 | 0.5 | 8 | 0.12 | 680-022-x | 000479-022-x | 4 | 4 |
25 | 1.6 | 0.5 | 8 | 0.12 | 680-025-x | 000479-025-x | 4 | 4 |
30* | 1.4 | 0.49 | 10 | 0.14 | 680-030-x | 000479-030-x | 4 | 4 |
32 | 1.37 | 0.49 | 11 | 0.15 | 680-032-x | 000479-032-x | 4 | 4 |
35* | 1.35 | 0.49 | 11 | 0.15 | 680-035-x | 000479-035-x | 4 | 4 |
38 | 1.3 | 0.49 | 12 | 0.17 | 680-038-x | 000479-038-x | 4 | 4 |
41 | 1.3 | 0.47 | 13 | 0.2 | 680-041-x | 000479-041-x | 4 | 4 |
42* | 1.2 | 0.47 | 13 | 0.2 | 680-042-x | 000479-042-x | 4 | 4 |
44 | 1.2 | 0.45 | 14 | 0.21 | 680-044-x | 000479-044-x | 4 | 4 |
45* | 1.2 | 0.45 | 14 | 0.21 | 680-045-x | 000479-045-x | 4 | 4 |
51 | 1.2 | 0.42 | 16 | 0.25 | 680-051-x | 000479-051-x | 4 | 4 |
55 | 1.1 | 0.41 | 18 | 0.27 | 680-055-x | 000479-055-x | 4 | 4 |
57 | 1.1 | 0.4 | 18 | 0.28 | 680-057-x | 000479-057-x | 4 | 4 |
60 | 1.1 | 0.39 | 20 | 0.3 | 680-060-x | 000479-060-x | 4 | 4 |
63 | 1.1 | 0.38 | 22 | 0.32 | 680-063-x | 000479-063-x | 4 | 4 |
64* | 1.1 | 0.38 | 22 | 0.32 | 680-064-x | 000479-064-x | 4 | 4 |
65* | 1.1 | 0.37 | 22 | 0.34 | 680-065-x | 000479-065-x | 4 | 4 |
70 | 1.1 | 0.35 | 24 | 0.36 | 680-070-x | 000479-070-x | 4 | 4 |
76 | 1.1 | 0.33 | 27 | 0.41 | 680-076-x | 000479-076-x | 4 | 4 |
80 | 1 | 0.31 | 28 | 0.44 | 680-080-x | 000479-080-x | 4 | 4 |
83 | 1 | 0.3 | 28 | 0.46 | 680-083-x | 000479-083-x | 4 | 4 |
90 | 1 | 0.29 | 29 | 0.49 | 680-090-x | 000479-090-x | 4 | 4 |
91* | 1 | 0.29 | 29 | 0.49 | 680-091-x | 000479-091-x | 4 | 4 |
95 | 0.9 | 0.28 | 32 | 0.56 | 680-095-x | 000479-095-x | 4 | 4 |
102 | 0.9 | 0.26 | 35 | 0.65 | 680-102-x | 000479-102-x | 4 | 4 |
108* | 0.9 | 0.24 | 38 | 0.68 | 680-108-x | 000479-108-x | 4 | 4 |
110* | 0.9 | 0.24 | 38 | 0.69 | 680-110-x | 000479-110-x | 4 | 4 |
114 | 0.9 | 0.22 | 40 | 0.71 | 680-114-x | 000479-114-x | 4 | 4 |
120 | 0.8 | 0.2 | 43 | 0.76 | 680-120-x | 000479-120-x | 4 | 4 |
127 | 0.8 | 0.17 | 46 | 0.8 | 680-127-x | 000479-127-x | 4 | 4 |
130 | 0.8 | 0.17 | 47 | 0.82 | 680-130-x | 000479-130-x | 4 | 4 |
140 | 0.7 | 0.15 | 48 | 0.9 | 680-140-x | 000479-140-x | 4 | 4 |
152 | 0.7 | 0.14 | 51 | 0.99 | 680-152-x | 000479-152-x | 4 | 4 |
160 | 0.6 | 0.13 | 53 | 1.05 | 680-160-x | 000479-160-x | 4 | 4 |
165 | 0.6 | 0.12 | 55 | 1.08 | 680-165-x | 000479-165-x | 4 | 4 |
180 | 0.6 | 0.11 | 60 | 1.19 | 680-180-x | 000479-180-x | 4 | 4 |
203 | 0.5 | 0.07 | 68 | 1.33 | 680-203-x | 000479-203-x | 4 | 4 |
229* | 0.4 | 0.06 | 84 | 1.48 | 680-229-x | 000479-229-x | 4 | 4 |
254* | 0.4 | 0.04 | 102 | 1.68 | 680-254-x | 000479-254-x | 4 | 4 |
305* | 0.2 | 0.02 | 123 | 2.05 | 680-305-x | 000479-305-x | 4 | 4 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 135 ºC |
Diameter Range | 13-305 mm |
