Medium Duty, flexible & electroconductive hoses for danger zones; oil mist, dust, course-grains, gas, liquids, common in industrial vacuum cleaners.
Product Description

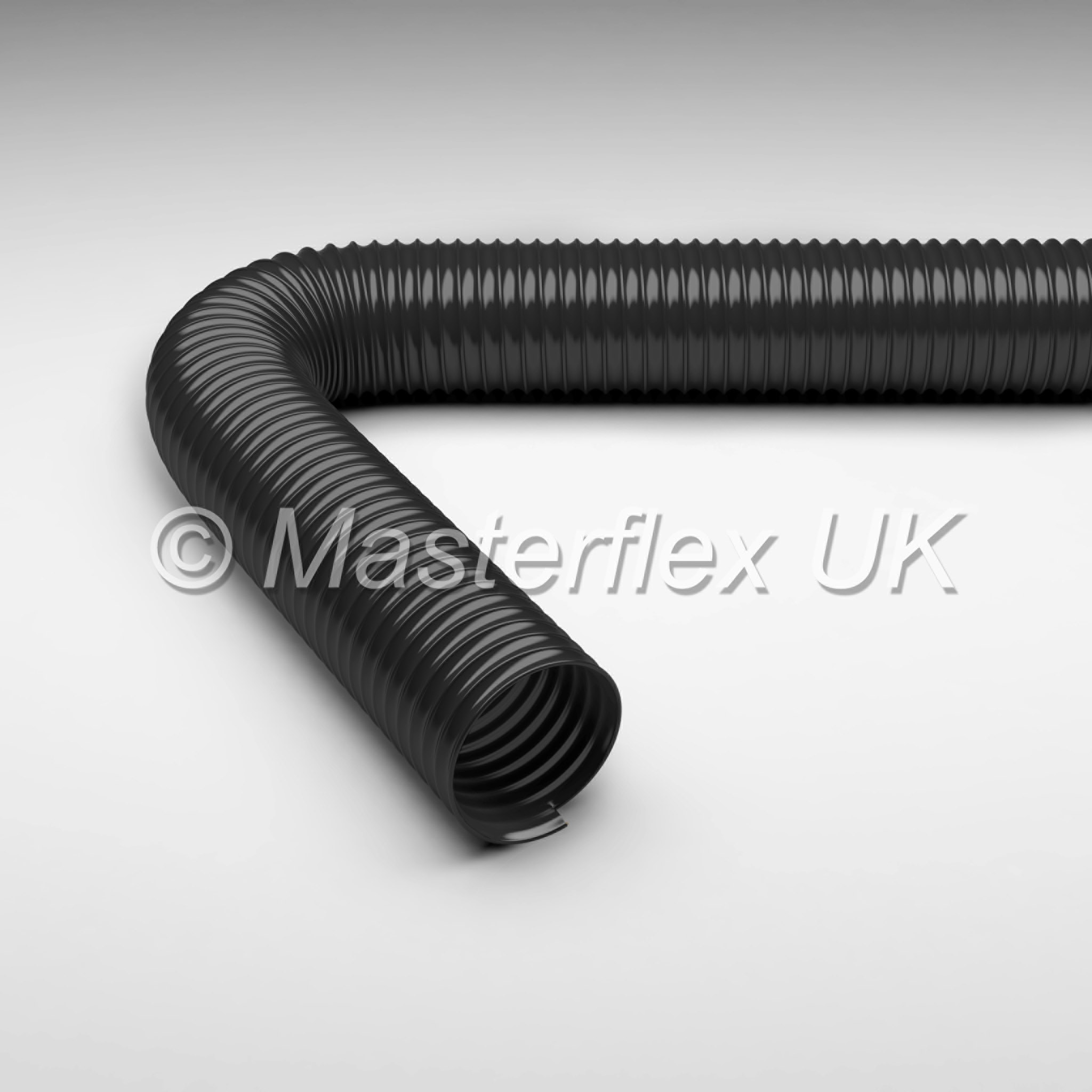

Master PUR H-EL
Description
This very flexible, Master PUR H-EL, electrically conductive ATEX Ducting Hose is suitable for use on ATEX approved equipment where transportation of abrasive materials where the elimination of static build-up is of prime importance.
• ATEX Hose
• Polyester polyurethane hose
• Reinforced with embedded high tensile steel wire helix
• PU thickness = 1.4mm
Properties
• Very flexible
• Highly Abrasion Resistant Hose
• Nearly smooth bore
• Medium to heavy-duty
• Electrically conductive
• Surface resistance < 10 to the 4 ohms
• Suitable for use on ATEX approved equipment
Applications
• Transportation of abrasive materials where the elimination of static build-up is of prime importance
• Special hose for industrial vacuum cleaners
Colour
Black
Size Range
32mm to 100mm.
Temp Range
-40ºC to +90ºC (intermittent to +125ºC).
Options
• Special diameters
• Other lengths available on request
Master PUR H-EL Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
DN | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length |
max. production length |
bar | bar | mm | mm | kg | m | m | |||
25* | 4.17 | 0.92 | 46 | 32 | 0.28 | 111E-025-x | 000075-025-x | 10 | 25 |
26 | 4.16 | 0.92 | 47 | 33 | 0.29 | 111E-026-x | 000075-026-x | 10 | 25 |
32 | 3.25 | 0.92 | 60 | 41 | 0.39 | 111E-032-x | 000075-032-x | 10 | 25 |
38 | 3.12 | 0.82 | 69 | 47 | 0.46 | 111E-038-x | 000075-038-x | 10 | 25 |
40 | 3 | 0.82 | 72 | 49 | 0.49 | 111E-040-x | 000075-040-x | 10 | 25 |
45* | 2.95 | 0.81 | 80 | 55 | 0.55 | 111E-045-x | 000075-045-x | 10 | 25 |
50* | 2.91 | 0.79 | 86 | 60 | 0.68 | 111E-050-x | 000075-050-x | 10 | 25 |
51 | 2.9 | 0.79 | 87 | 61 | 0.71 | 111E-051-x | 000075-051-x | 10 | 25 |
55* | 2.75 | 0.76 | 95 | 65 | 0.77 | 111E-055-x | 000075-055-x | 10 | 25 |
60 | 2.55 | 0.74 | 102 | 70 | 0.84 | 111E-060-x | 000075-060-x | 10 | 25 |
65 | 2.4 | 0.66 | 112 | 75 | 0.91 | 111E-065-x | 000075-065-x | 10 | 25 |
70 | 2.25 | 0.66 | 117 | 80 | 0.97 | 111E-070-x | 000075-070-x | 10 | 25 |
75* | 2.04 | 0.6 | 125 | 86 | 1.05 | 111E-075-x | 000075-075-x | 10 | 25 |
76* | 2 | 0.59 | 126 | 87 | 1.06 | 111E-076-x | 000075-076-x | 10 | 25 |
80 | 2 | 0.59 | 132 | 91 | 1.11 | 111E-080-x | 000075-080-x | 10 | 25 |
90* | 1.65 | 0.52 | 149 | 101 | 1.25 | 111E-090-x | 000075-090-x | 10 | 25 |
100* | 1.53 | 0.45 | 162 | 110 | 1.44 | 111E-100-x | 000075-100-x | 10 | 25 |
102 | 1.5 | 0.44 | 165 | 112 | 1.48 | 111E-102-x | 000075-102-x | 10 | 25 |
110* | 1.35 | 0.44 | 179 | 121 | 1.61 | 111E-110-x | 000075-110-x | 10 | 25 |
115* | 1.35 | 0.31 | 186 | 126 | 1.68 | 111E-115-x | 000075-115-x | 10 | 25 |
120* | 1.3 | 0.31 | 194 | 131 | 1.75 | 111E-120-x | 000075-120-x | 10 | 25 |
125* | 1.3 | 0.31 | 203 | 138 | 1.91 | 111E-125-x | 000075-125-x | 10 | 25 |
127* | 1.3 | 0.31 | 205 | 139 | 1.91 | 111E-127-x | 000075-127-x | 10 | 25 |
130* | 1.3 | 0.31 | 209 | 141 | 1.96 | 111E-130-x | 000075-130-x | 10 | 25 |
140* | 1.05 | 0.25 | 224 | 151 | 2.11 | 111E-140-x | 000075-140-x | 10 | 25 |
150* | 1.05 | 0.25 | 239 | 161 | 2.26 | 111E-150-x | 000075-150-x | 10 | 25 |
152* | 1.05 | 0.25 | 242 | 163 | 2.29 | 111E-152-x | 000075-152-x | 10 | 25 |
160* | 0.9 | 0.25 | 255 | 171 | 2.51 | 111E-160-x | 000075-160-x | 10 | 25 |
170* | 0.9 | 0.18 | 270 | 181 | 2.67 | 111E-170-x | 000075-170-x | 10 | 25 |
175* | 0.9 | 0.18 | 278 | 186 | 2.74 | 111E-175-x | 000075-175-x | 10 | 25 |
180* | 0.75 | 0.18 | 285 | 191 | 2.82 | 111E-180-x | 000075-180-x | 10 | 25 |
200* | 0.75 | 0.18 | 316 | 212 | 3.41 | 111E-200-x | 000075-200-x | 10 | 25 |
203* | 0.75 | 0.18 | 321 | 215 | 3.5 | 111E-203-x | 000075-203-x | 10 | 25 |
225* | 0.6 | 0.12 | 353 | 237 | 3.65 | 111E-225-x | 000075-225-x | 10 | 25 |
250* | 0.6 | 0.12 | 385 | 259 | 3.84 | 111E-250-x | 000075-250-x | 10 | 25 |
254* | 0.6 | 0.12 | 390 | 263 | 3.84 | 111E-254-x | 000075-254-x | 10 | 25 |
275* | 0.45 | 0.12 | 426 | 288 | 4.22 | 111E-275-x | 000075-275-x | 10 | 25 |
280* | 0.45 | 0.12 | 435 | 293 | 4.3 | 111E-280-x | 000075-280-x | 10 | 25 |
300* | 0.45 | 0.12 | 465 | 313 | 4.94 | 111E-300-x | 000075-300-x | 10 | 20 |
315* | 0.45 | 0.12 | 488 | 328 | 5.19 | 111E-315-x | 000075-315-x | 10 | 20 |
325* | 0.45 | 0.12 | 503 | 338 | 5.35 | 111E-325-x | 000075-325-x | 10 | 20 |
350* | 0.45 | 0.12 | 540 | 363 | 6.96 | 111E-350-x | 000075-350-x | 10 | 20 |
375* | 0.3 | 0.07 | 580 | 388 | 7.45 | 111E-375-x | 000075-375-x | 10 | 20 |
400* | 0.3 | 0.07 | 615 | 413 | 7.95 | 111E-400-x | 000075-400-x | 10 | 20 |
450* | 0.3 | 0.07 | 690 | 463 | 8.94 | 111E-450-x | 000075-450-x | 10 | 20 |
500* | 0.3 | 0.07 | 765 | 513 | 9.93 | 111E-500-x | 000075-500-x | 10 | 20 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 90 ºC |
Minimum Wall Thickness | 1.4 mm |
Diameter Range | 25-500 mm |
