Medium Duty & Permanently Antistatic food grade hose for solids and liquids: made from polyether polyurethane, per EU 10/2011 & FDA, with very high flexibility.
Product Description

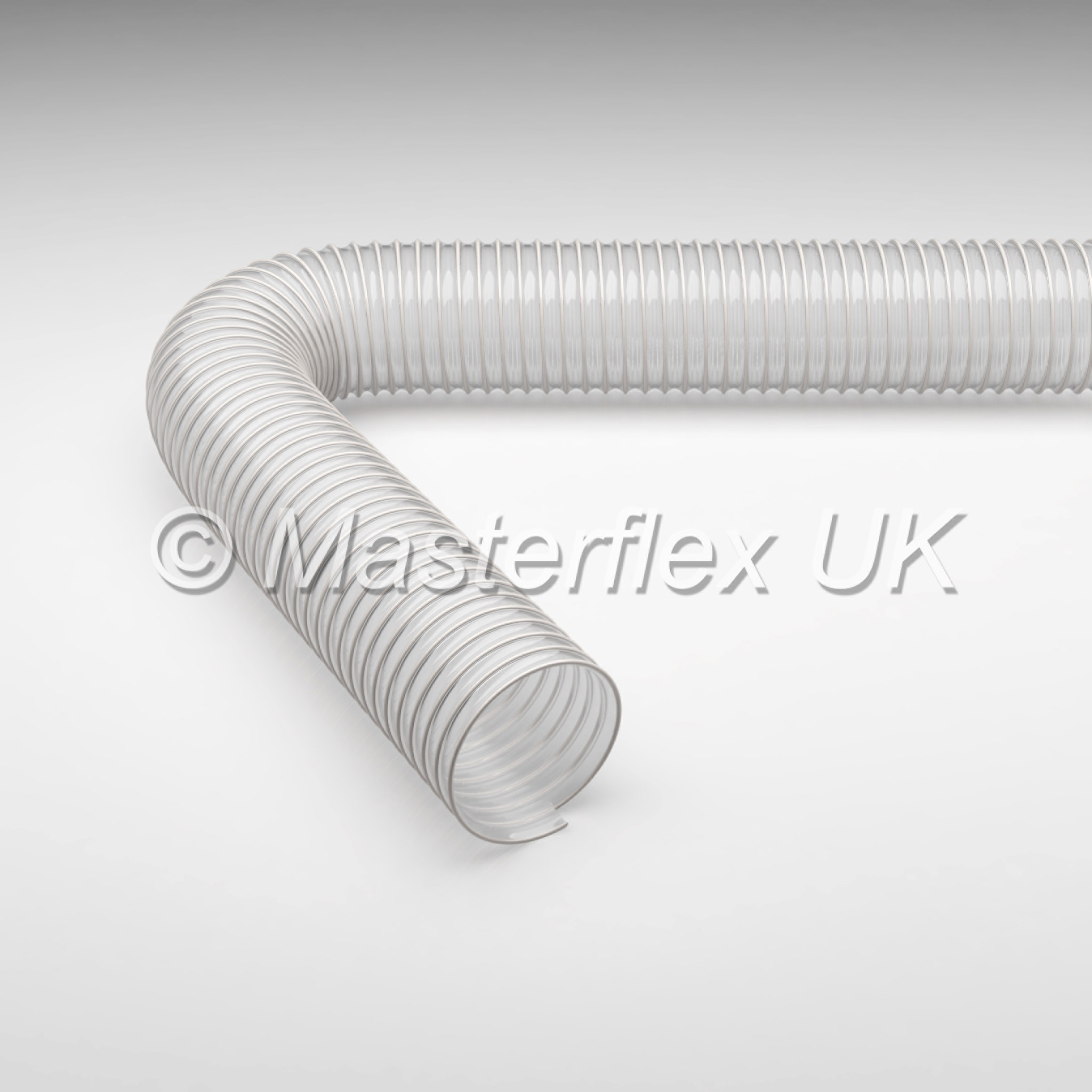

Master Pur H Food A
Description
We offer Food Grade Hose, Master PUR H Food A Hose, which is great for transportation of solid, liquid and gaseous media in the food, pharmaceutical and chemical industry.
• Food Quality, Antistatic, Polyether polyurethane hose
• Reinforced with embedded stainless steel wire helix
• PU thickness = 1.4mm
Properties
• Halogen and plasticizer-free
• Suction
• Extremely flexible
• Highly abrasion-resistant hose
• Nearly smooth bore
• Light/medium duty
• FDA approved
• Antistatic Hoses (Anti-static surface resistance ≤ 10 to the 9 Ohms)
• Microbe and hydrolysis-resistant
• Odourless/tasteless
• Improved pressure and vacuum characteristics vs Master-Pur L Food A
Applications
Transportation of solid, liquid and gaseous media in the food, pharmaceutical and chemical industry.Where antistatic properties are of prime importance.
Colour
Clear
Size Range
20mm to 200mm
Temp Range
-40ºC to +90ºC (intermittent to +125ºC).Master PUR H Food A Hose Data Sheet
Options
• Special diameters
• Other lengths available on request
Master PUR H Food A Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
DNC4:K2C4:K33 | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length |
max. production length |
bar | bar | mm | mm | kg | m | m | |||
20* | 4.3 | 0.92 | 45 | 28 | 0.23 | 111FA-020-x | 000068-020-x | 10 | 25 |
26* | 4.16 | 0.92 | 50 | 33 | 0.3 | 111FA-026-x | 000068-026-x | 10 | 25 |
30* | 3.51 | 0.92 | 56 | 39 | 0.37 | 111FA-030-x | 000068-030-x | 10 | 25 |
32 | 3.25 | 0.92 | 60 | 41 | 0.39 | 111FA-032-x | 000068-032-x | 10 | 25 |
38 | 3.12 | 0.82 | 70 | 47 | 0.46 | 111FA-038-x | 000068-038-x | 10 | 25 |
40 | 3 | 0.82 | 70 | 49 | 0.49 | 111FA-040-x | 000068-040-x | 10 | 25 |
45* | 2.95 | 0.81 | 80 | 55 | 0.55 | 111FA-045-x | 000068-045-x | 10 | 25 |
50* | 2.9 | 0.8 | 86 | 60 | 0.68 | 111FA-050-x | 000068-050-x | 10 | 25 |
51 | 2.9 | 0.79 | 87 | 61 | 0.71 | 111FA-051-x | 000068-051-x | 10 | 25 |
55* | 2.75 | 0.76 | 95 | 65 | 0.77 | 111FA-055-x | 000068-055-x | 10 | 25 |
60 | 2.55 | 0.74 | 105 | 70 | 0.84 | 111FA-060-x | 000068-060-x | 10 | 25 |
65 | 2.4 | 0.66 | 115 | 75 | 0.91 | 111FA-065-x | 000068-065-x | 10 | 25 |
70* | 2.25 | 0.66 | 120 | 80 | 0.97 | 111FA-070-x | 000068-070-x | 10 | 25 |
75* | 2 | 0.6 | 124 | 86 | 1.05 | 111FA-075-x | 000068-075-x | 10 | 25 |
76* | 2 | 0.59 | 125 | 87 | 1.06 | 111FA-076-x | 000068-076-x | 10 | 25 |
80 | 2 | 0.59 | 135 | 91 | 1.11 | 111FA-080-x | 000068-080-x | 10 | 25 |
90* | 1.65 | 0.52 | 149 | 101 | 1.25 | 111FA-090-x | 000068-090-x | 10 | 25 |
100* | 1.5 | 0.45 | 163 | 110 | 1.44 | 111FA-100-x | 000068-100-x | 10 | 25 |
102 | 1.5 | 0.44 | 165 | 112 | 1.48 | 111FA-102-x | 000068-102-x | 10 | 25 |
115* | 1.35 | 0.31 | 186 | 126 | 1.68 | 111FA-115-x | 000068-115-x | 10 | 25 |
120* | 1.3 | 0.31 | 195 | 131 | 1.75 | 111FA-120-x | 000068-120-x | 10 | 25 |
125* | 1.3 | 0.31 | 203 | 136 | 1.86 | 111FA-125-x | 000068-125-x | 10 | 25 |
127* | 1.3 | 0.31 | 205 | 138 | 1.91 | 111FA-127-x | 000068-127-x | 10 | 25 |
130* | 1.3 | 0.31 | 209 | 141 | 1.96 | 111FA-130-x | 000068-130-x | 10 | 25 |
140* | 1.05 | 0.25 | 224 | 151 | 2.11 | 111FA-140-x | 000068-140-x | 10 | 25 |
150* | 1.05 | 0.25 | 243 | 161 | 2.26 | 111FA-150-x | 000068-150-x | 10 | 25 |
152* | 1.05 | 0.25 | 245 | 163 | 2.29 | 111FA-152-x | 000068-152-x | 10 | 25 |
160* | 0.9 | 0.25 | 255 | 171 | 2.51 | 111FA-160-x | 000068-160-x | 10 | 25 |
170* | 0.9 | 0.18 | 255 | 181 | 2.67 | 111FA-170-x | 000068-170-x | 10 | 25 |
175* | 0.9 | 0.18 | 255 | 186 | 2.74 | 111FA-175-x | 000068-175-x | 10 | 25 |
180* | 0.75 | 0.18 | 285 | 191 | 2.82 | 111FA-180-x | 000068-180-x | 10 | 25 |
200* | 0.75 | 0.18 | 320 | 212 | 3.41 | 111FA-200-x | 000068-200-x | 10 | 25 |
203* | 0.75 | 0.18 | 325 | 215 | 3.5 | 111FA-203-x | 000068-203-x | 10 | 25 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 90 ºC |
Minimum Wall Thickness | 1.4 mm |
Diameter Range | 20-203 mm |
