Master PUR HX Trivolution

Product Description

Master PUR HX Trivolution

Description

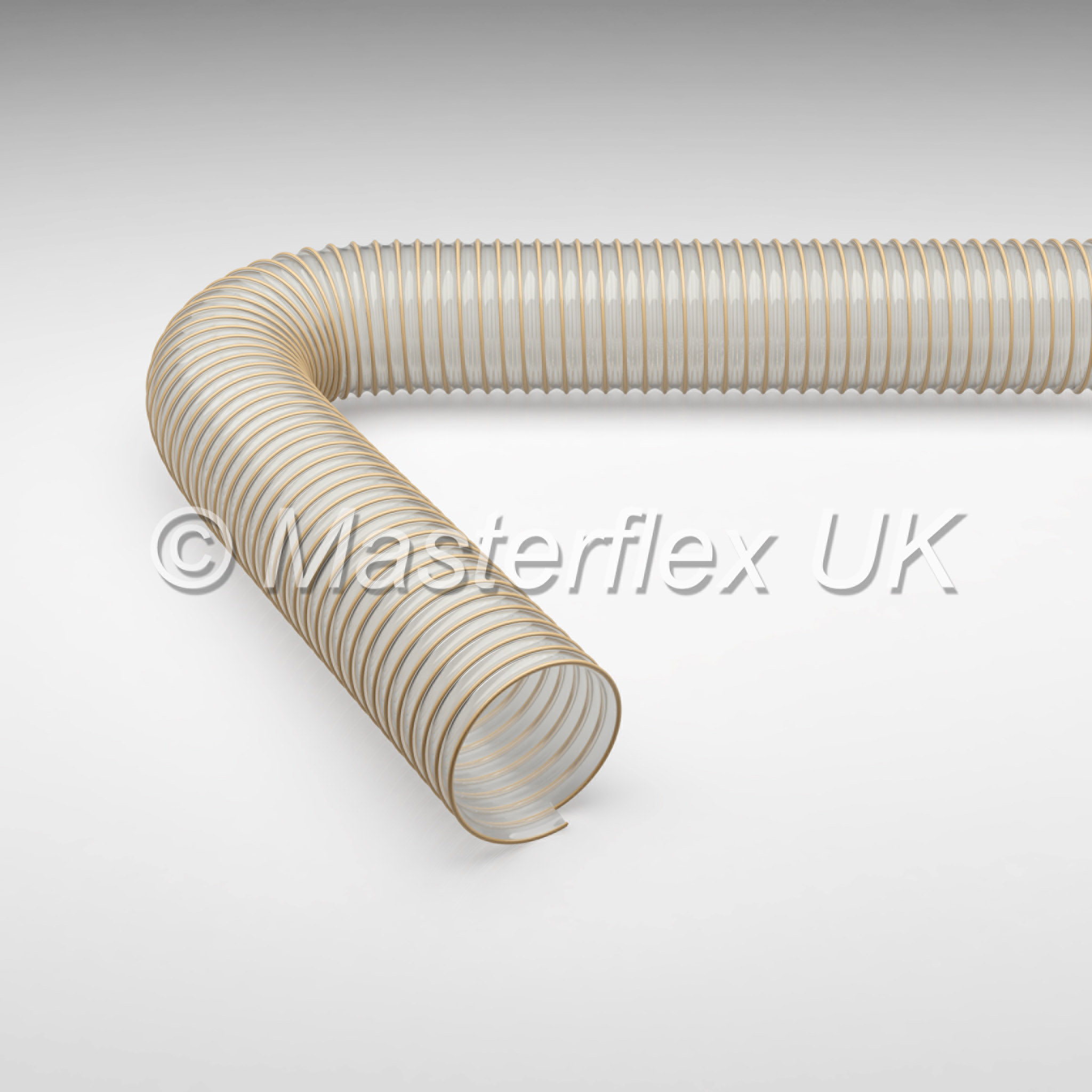

Master PUR HX Trivolution, Heavy Duty Hose, is extremely abrasion resistant, microbe-resistant and heavy duty with a nearly smooth bore; it is great for transportation of sand, gravel, glass wool, etc…

• Polyester polyurethane hose / PU Ducting (microbe-resistant, hardly-inflammable & antistatic)
• Reinforced with embedded copper-coated high tensile steel wire helix
• PU thickness = maximum 2.1mm

Properties

• Good flexibility
• An Extremely abrasion resistant hose
• Microbe Resistant
• Hardly Inflammable to DIN4102 B1
• Antistatic Hose (Anti-static, surface resistance < 10 to the 9 ohms)
• Nearly smooth bore
• Heavy duty
• Improved pressure and vacuum characteristics over Master-Pur H

Applications

• Transportation of sand, gravel, grain, glass wool
• For highest demands of service life and abrasion resistance

Colour

Clear

Size Range

32mm to 300mm.

Temp Range

-40ºC to +90ºC (intermittent to +125ºC).

Options

• Other lengths available on request
• A range of end fittings is available on request

Master PUR HX Trivolution Hose Data Sheet

Download Masterflex Chemical Resistance Data Sheet

DN	op. pressure	vacuum	bend radius	outer Ø	weight/m	old article no.	new article no.	standard length	max. production length
	bar	bar	mm	mm	kg			m	m
32	4.85	0.94	80	42	0.66	114-032-x	000158-032-x	10	20
38	4.39	0.94	95	48	0.78	114-038-x	000158-038-x	10	20
40	4.27	0.94	100	50	0.83	114-040-x	000158-040-x	10	20
45	4.1	0.94	115	55	0.92	114-045-x	000158-045-x	10	20
50*	4.02	0.94	124	60	1.02	114-050-x	000158-050-x	10	20
51	4	0.94	125	61	1.04	114-051-x	000158-051-x	10	20
55	3.75	0.89	140	65	1.1	114-055-x	000158-055-x	10	20
60	3.6	0.89	150	70	1.2	114-060-x	000158-060-x	10	20
65	3.3	0.89	165	75	1.29	114-065-x	000158-065-x	10	20
70	3.15	0.89	175	80	1.38	114-070-x	000158-070-x	10	20
75*	2.95	0.89	188	85	1.48	114-075-x	000158-075-x	10	20
76	2.92	0.89	190	87	1.5	114-076-x	000158-076-x	10	20
80	2.77	0.89	200	93	1.93	114-080-x	000158-080-x	10	20
90	2.4	0.89	225	103	2.16	114-090-x	000158-090-x	10	20
100*	2.15	0.88	238	113	2.53	114-100-x	000158-100-x	10	20
102	2.1	0.87	250	115	2.6	114-102-x	000158-102-x	10	20
110	1.95	0.87	275	124	2.82	114-110-x	000158-110-x	10	20
115	1.8	0.87	290	129	2.94	114-115-x	000158-115-x	10	20
120	1.65	0.87	300	134	3.07	114-120-x	000158-120-x	10	20
125*	1.65	0.87	311	138	3.34	114-125-x	000158-125-x	10	20
127	1.65	0.87	315	140	3.44	114-127-x	000158-127-x	10	20
130*	1.65	0.84	325	143	3.54	114-130-x	000158-130-x	10	20
140	1.5	0.83	350	153	3.81	114-140-x	000158-140-x	10	20
150*	1.5	0.82	434	165	4.08	114-150-x	000158-150-x	10	20
152	1.5	0.82	450	167	4.13	114-152-x	000158-152-x	10	20
160	1.35	0.81	500	175	4.81	114-160-x	000158-160-x	10	20
170*	1.2	0.8	600	185	5.1	114-170-x	000158-170-x	10	20
175*	1.2	0.79	650	190	5.25	114-175-x	000158-175-x	10	20
180	1.2	0.77	700	195	5.4	114-180-x	000158-180-x	10	20
200*	1.07	0.68	918	217	6.3	114-200-x	000158-200-x	10	15
203	1.05	0.66	950	220	6.43	114-203-x	000158-203-x	10	15
225	0.9	0.58	1150	241	7.11	114-225-x	000158-225-x	10	10
250	0.9	0.51	1300	267	7.91	114-250-x	000158-250-x	10	10
254*	0.88	0.5	1325	271	8.04	114-254-x	000158-254-x	10	10
275*	0.75	0.47	1450	292	8.68	114-275-x	000158-275-x	10	10
300	0.6	0.42	1600	317	9.45	114-300-x	000158-300-x	10	10
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations.
