Lightweight & Light Duty PU Suction & Transport Hose, light-duty, food-grade quality according to EU 10/2011 and FDA
Product Description

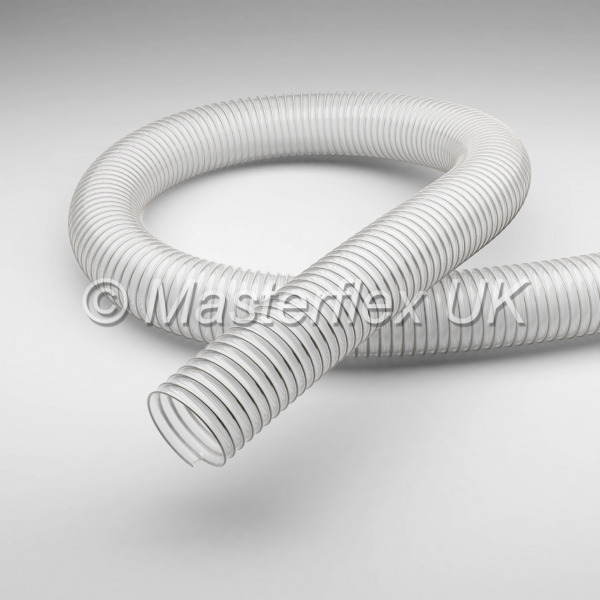

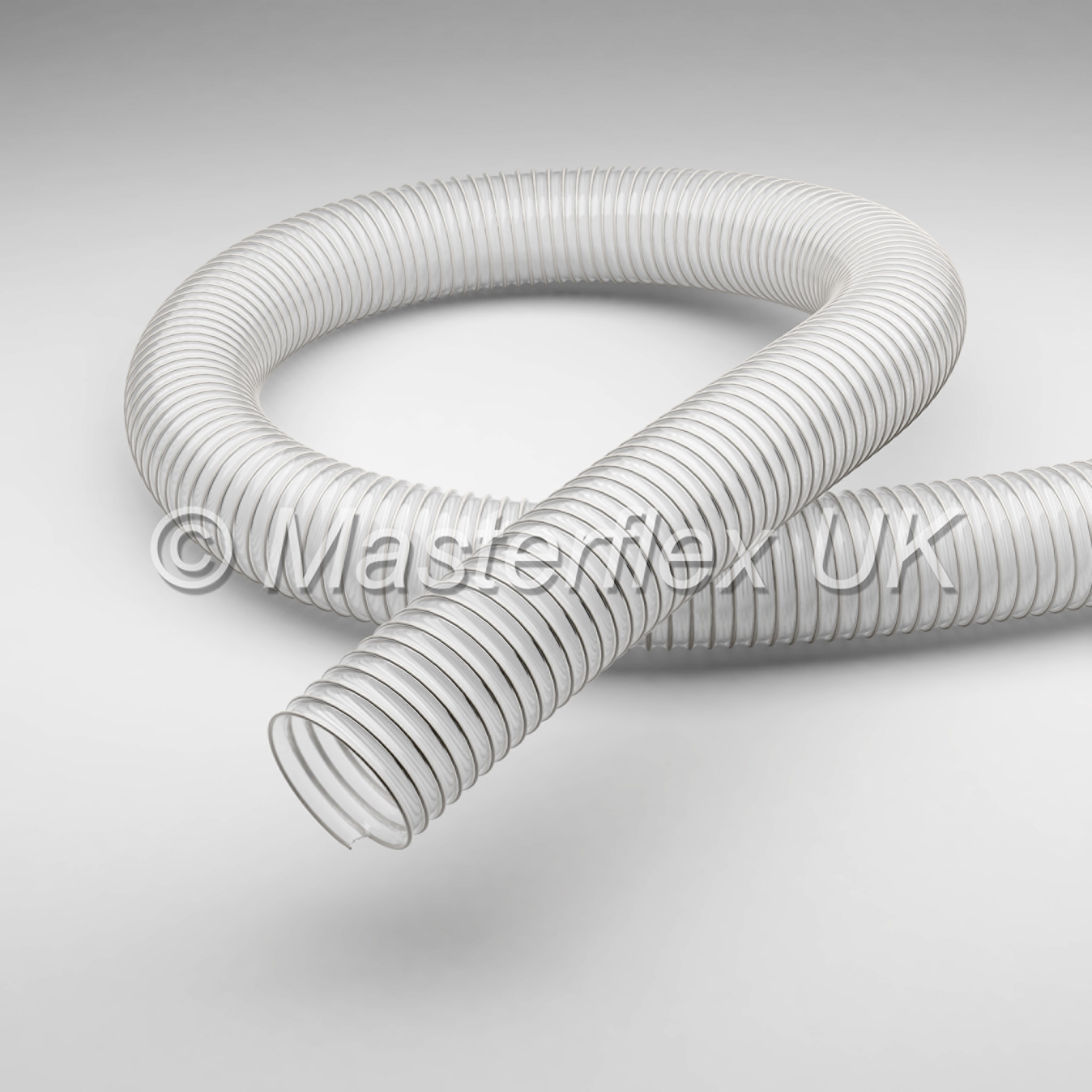

Master Pur L Food
Description
This FDA approved, Master PUR L Food, Food Grade Hose which is extremely lightweight and highly abrasion-resistant, is great for food applications:
• Polyether polyurethane hose / PU Ducting
• Reinforced with embedded stainless steel wire helix
• PU thickness = 0.7mm
Properties
• Extremely flexible
• Light Suction
• Highly abrasion-resistant
• Nearly smooth bore
• Light/medium duty
• FDA approved
Applications
Transportation of solid, liquid and gaseous media in the food, pharmaceutical and chemical industry.
Colour
Clear
Size Range
32mm to 200mm.
Temp Range
-40ºC to +90ºC (intermittent to +125ºC).
Options
• Special diameters
• Other lengths available on request
Master PUR L Food Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
DN | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length | max. production length |
bar | bar | mm | mm | kg | m | ||||
32 | 2.52 | 0.71 | 40 | 40 | 0.35 | 110F-032-x | 000012-032-x | 10 | 25 |
38 | 2.1 | 0.66 | 46 | 46 | 0.39 | 110F-038-x | 000012-038-x | 10 | 25 |
40 | 2.1 | 0.66 | 48 | 48 | 0.4 | 110F-040-x | 000012-040-x | 10 | 25 |
45* | 1.84 | 0.59 | 53 | 53 | 0.44 | 110F-045-x | 000012-045-x | 10 | 25 |
50* | 1.71 | 0.51 | 57 | 57 | 0.45 | 110F-050-x | 000012-050-x | 10 | 25 |
51 | 1.68 | 0.52 | 58 | 58 | 0.45 | 110F-051-x | 000012-051-x | 10 | 25 |
55* | 1.54 | 0.44 | 63 | 63 | 0.54 | 110F-055-x | 000012-055-x | 10 | 25 |
60 | 1.4 | 0.44 | 68 | 68 | 0.53 | 110F-060-x | 000012-060-x | 10 | 25 |
65 | 1.26 | 0.37 | 75 | 73 | 0.64 | 110F-065-x | 000012-065-x | 10 | 25 |
70 | 1.12 | 0.37 | 80 | 78 | 0.68 | 110F-070-x | 000012-070-x | 10 | 25 |
75* | 1.12 | 0.3 | 84 | 83 | 0.71 | 110F-075-x | 000012-075-x | 10 | 25 |
76 | 1.12 | 0.29 | 85 | 84 | 0.72 | 110F-076-x | 000012-076-x | 10 | 25 |
80 | 0.98 | 0.29 | 90 | 88 | 0.76 | 110F-080-x | 000012-080-x | 10 | 25 |
90* | 0.84 | 0.22 | 99 | 99 | 0.88 | 110F-090-x | 000012-090-x | 10 | 25 |
100* | 0.84 | 0.22 | 108 | 108 | 0.94 | 110F-100-x | 000012-100-x | 10 | 25 |
102 | 0.84 | 0.22 | 110 | 110 | 0.95 | 110F-102-x | 000012-102-x | 10 | 25 |
110* | 0.7 | 0.22 | 119 | 119 | 1.23 | 110F-110-x | 000012-110-x | 10 | 25 |
115* | 0.7 | 0.22 | 124 | 124 | 1.28 | 110F-115-x | 000012-115-x | 10 | 25 |
120* | 0.7 | 0.22 | 130 | 129 | 1.12 | 110F-120-x | 000012-120-x | 10 | 25 |
125* | 0.7 | 0.22 | 133 | 133 | 1.17 | 110F-125-x | 000012-125-x | 10 | 25 |
127 | 0.7 | 0.22 | 135 | 135 | 1.18 | 110F-127-x | 000012-127-x | 10 | 25 |
130* | 0.56 | 0.22 | 141 | 140 | 1.2 | 110F-130-x | 000012-130-x | 10 | 25 |
140* | 0.56 | 0.15 | 153 | 150 | 1.38 | 110F-140-x | 000012-140-x | 10 | 25 |
150* | 0.56 | 0.15 | 163 | 159 | 1.47 | 110F-150-x | 000012-150-x | 10 | 25 |
152 | 0.56 | 0.15 | 165 | 161 | 1.48 | 110F-152-x | 000012-152-x | 10 | 25 |
160* | 0.56 | 0.15 | 170 | 170 | 1.74 | 110F-160-x | 000012-160-x | 10 | 25 |
175* | 0.42 | 0.15 | 185 | 185 | 1.85 | 110F-175-x | 000012-175-x | 10 | 25 |
180* | 0.42 | 0.15 | 190 | 190 | 1.9 | 110F-180-x | 000012-180-x | 10 | 25 |
200* | 0.42 | 0.15 | 212 | 211 | 2.25 | 110F-200-x | 000012-200-x | 10 | 25 |
203 | 0.42 | 0.15 | 215 | 214 | 2.3 | 110F-203-x | 000012-203-x | 10 | 25 |
225 | 0.28 | 0.07 | 235 | 235 | 2.55 | 110F-225-x | 000012-225-x | 10 | 25 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 90 ºC |
Minimum Wall Thickness | 0.7 mm |
Diameter Range | 32-203 mm |
