Master Pur L Food A

Product Description

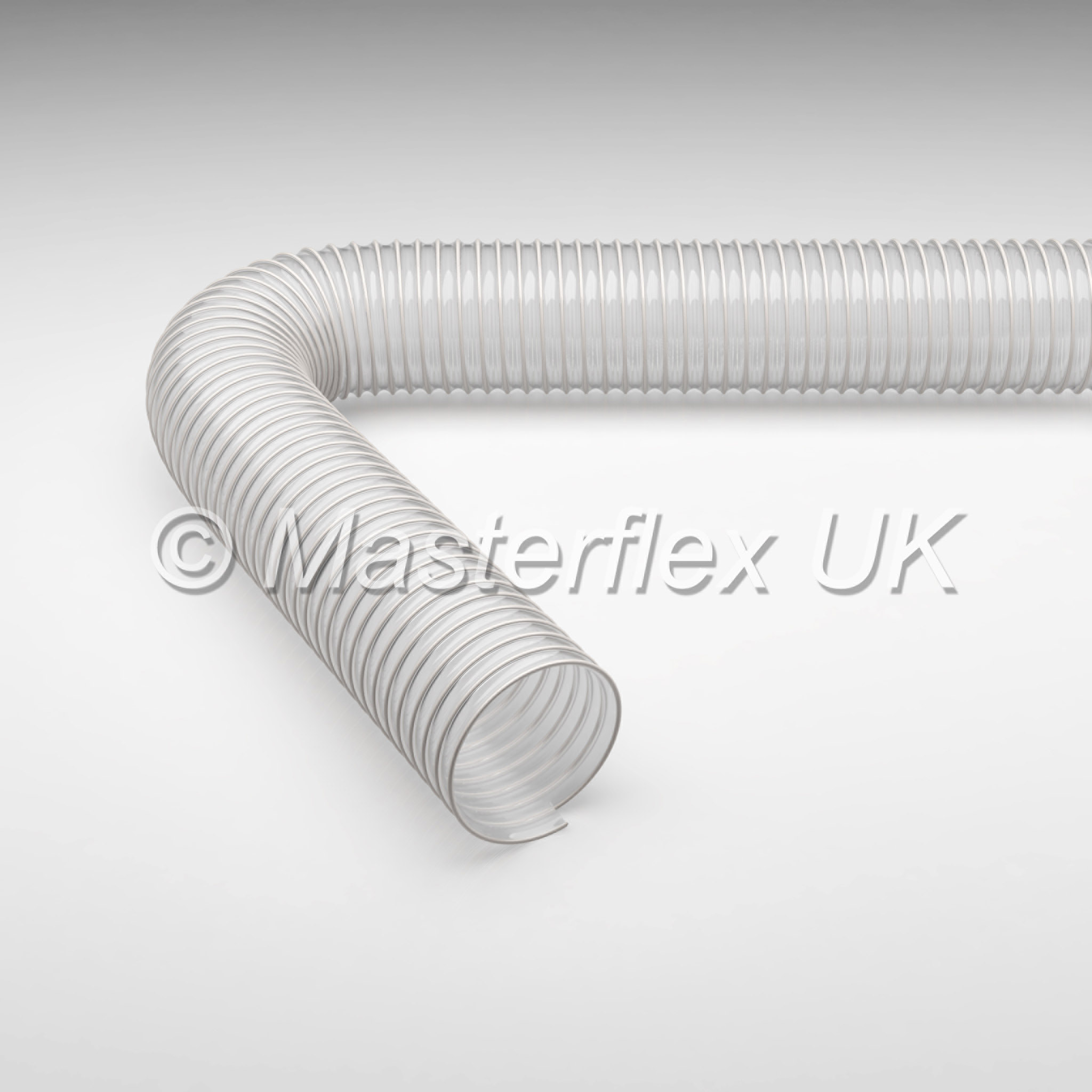

Master PUR L Food A

Description

This FDA approved Food Grade Hose, which is extremely flexible, is great for food applications where antistatic properties are of prime importance.

Applications

Transportation of solid, liquid and gaseous media in the food, pharmaceutical and chemical industry; where antistatic properties are of prime importance.

Properties

• EU guidelines EU 10/2011 and most recent amending directives
• approved for food-grade category: E (contact duration according to Test Report)
• the material of the wall complies with the FDA Food Regulations 21 CFR § 177.1680 and 21 CFR § 177.2600
• permanently antistatic, surface resistance RO < 109 Ohm, measured acc. to DIN EN ISO 8031
• approved acc. to TRGS 727 and ATEX 2014/34 EU. Details according to the certificate
• light-duty
• very good flexibility
• smallest bending radius
• abrasion-resistant
• optimum flow characteristics
• mostly smooth inner lining
• odourless/tasteless
• microbe and hydrolysis-resistant
• halogen and plasticizer-free
• generally good UV and ozone resistance
• good chemical resistance
• high tensile strength
• Halogen and plasticiser-free
• Light suction
• Highly abrasion-resistant
• Anti-static Hoses (Antistatic surface resistance ≤ 10 to the 9 Ohms)

Colour

Clear

Size Range

32mm to 200mm

Temp Range

-40ºC to +90ºC (intermittent to +125ºC).

Options

• Special diameters
• Other lengths available on request

Master PUR L Food A Hose Data Sheet

Download Masterflex Chemical Resistance Data Sheet

Read About FDA at https://www.fda.gov/

DN	op. pressure	vacuum	bend radius	outer Ø	weight/m	old article no.	new article no.	standard length	max. production length
	bar	bar	mm	mm	kg			m	m
32*	2.52	0.71	40	40	0.35	110FA-032-x	000014-032-x	10	25
38*	2.1	0.66	46	46	0.39	110FA-038-x	000014-038-x	10	25
40	2.1	0.66	48	48	0.4	110FA-040-x	000014-040-x	10	25
45*	1.84	0.59	53	53	0.44	110FA-045-x	000014-045-x	10	25
50*	1.71	0.53	57	57	0.45	110FA-050-x	000014-050-x	10	25
51	1.68	0.52	58	58	0.45	110FA-051-x	000014-051-x	10	25
55*	1.54	0.44	63	63	0.54	110FA-055-x	000014-055-x	10	25
60*	1.4	0.44	68	68	0.53	110FA-060-x	000014-060-x	10	25
65	1.26	0.37	75	73	0.64	110FA-065-x	000014-065-x	10	25
70*	1.12	0.37	80	78	0.68	110FA-070-x	000014-070-x	10	25
75*	1.12	0.3	84	83	0.71	110FA-075-x	000014-075-x	10	25
76*	1.12	0.29	85	84	0.72	110FA-076-x	000014-076-x	10	25
80	0.98	0.29	90	88	0.76	110FA-080-x	000014-080-x	10	25
90*	0.84	0.22	99	99	0.88	110FA-090-x	000014-090-x	10	25
100*	0.84	0.22	108	108	0.94	110FA-100-x	000014-100-x	10	25
102	0.84	0.22	110	110	0.95	110FA-102-x	000014-102-x	10	25
110*	0.7	0.22	119	119	1.23	110FA-110-x	000014-110-x	10	25
115*	0.7	0.22	124	124	1.28	110FA-115-x	000014-115-x	10	25
120*	0.7	0.22	130	129	1.12	110FA-120-x	000014-120-x	10	25
125*	0.7	0.22	133	133	1.16	110FA-125-x	000014-125-x	10	25
127*	0.7	0.22	135	135	1.18	110FA-127-x	000014-127-x	10	25
130*	0.56	0.22	141	140	1.23	110FA-130-x	000014-130-x	10	25
140*	0.56	0.15	153	150	1.4	110FA-140-x	000014-140-x	10	25
150*	0.56	0.15	163	159	1.57	110FA-150-x	000014-150-x	10	25
152*	0.56	0.15	165	161	1.6	110FA-152-x	000014-152-x	10	25
160*	0.56	0.15	170	170	1.74	110FA-160-x	000014-160-x	10	25
175*	0.42	0.15	185	185	1.85	110FA-175-x	000014-175-x	10	25
180*	0.42	0.15	190	190	1.9	110FA-180-x	000014-180-x	10	25
200*	0.42	0.15	212	212	2.25	110FA-200-x	000014-200-x	10	25
203*	0.42	0.15	215	214	2.3	110FA-203-x	000014-203-x	10	25
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations.
