Smooth & Heavy Duty Polyurethane flexible suction & transport hose with extremely abrasion-resistant smooth liner, PU wall thickness = 2.5mm (min)
Product Description

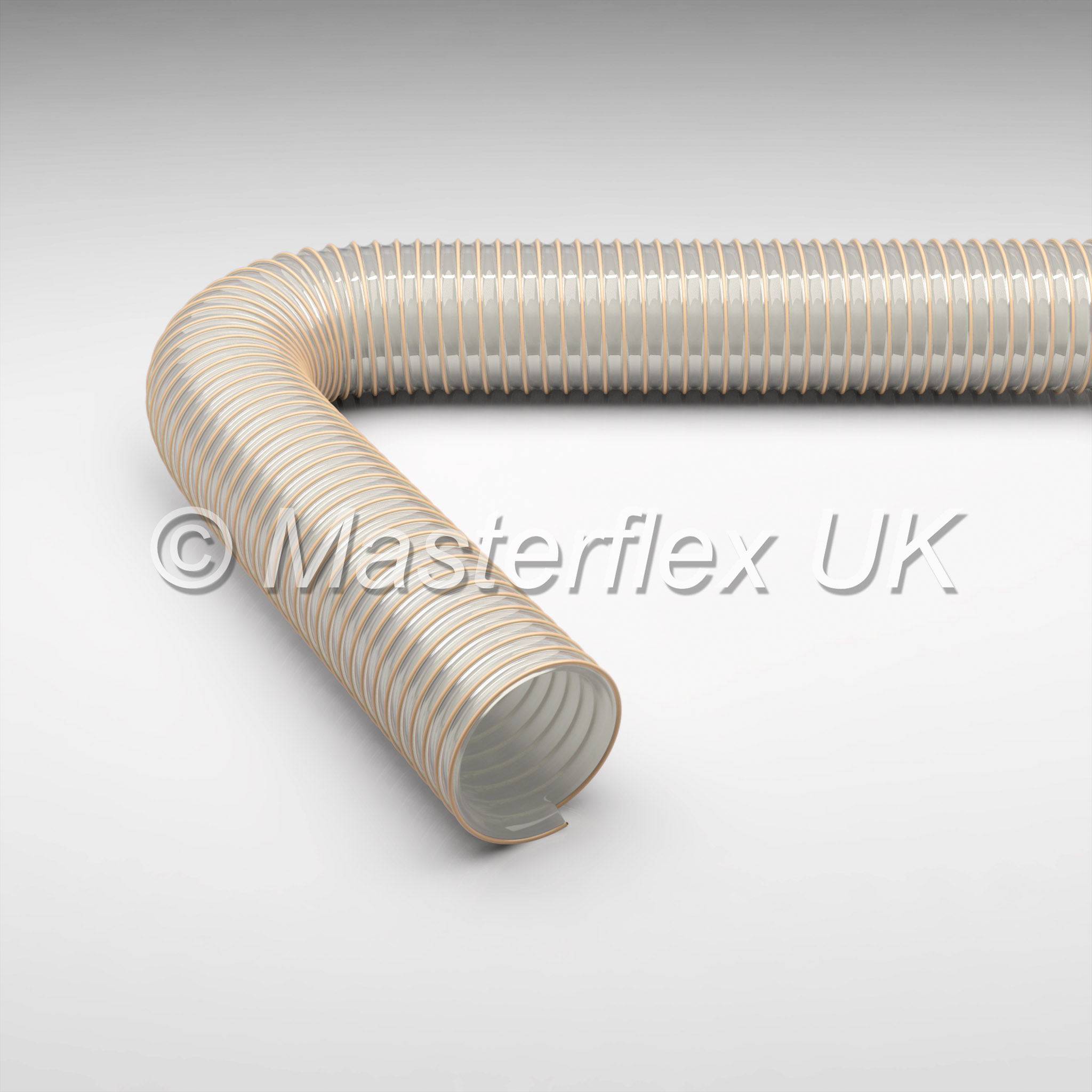

Master PUR Performance
Description
Master PUR Performance Hose, heavy-Duty Suction Hose, is a Polyurethane (PU) suction hose, an extremely abrasion-resistant hose with extra strong PU lining, it is good for problematic media, including, sand, gravel, etc:
• PU Heavy Duty Suction & transport hose / PU Ducting
• Extremely abrasion resistant smooth liner with spring steel wire reinforcement
• PU liner = 2.5mm (min)
Properties
• Good flexibility
• Extremely abrasion resistant extra strong PU lining
• Seamless smooth bore for optimum flow
• Very heavy duty
• Antistatic Hoses, surface resistance < 10 to the 9 Ohms
• Microbe Resistant
• Halogen & plasticiser free
• Excellent vacuum resistance
Applications
• Transport hose for problematic media, e.g. sand, gravel, grain, granules
• Transport hose for handling and conveying
• Transport hose for feeding and cleaning of glassworks, mineral processing plants, steelworks, quarries, shipyards and docks, cement works, flat roof gravelling
• Other conveyor and loading plants
Colour
Translucent
Size Range
38mm to 150mm
Temp Range
-40ºC to +90ºC (intermittent to +125ºC
Options
Other lengths are available on request.
Master PUR Performance Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
DN | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length |
max. production length |
bar | bar | mm | mm | kg | m | m | |||
38 | 4.35 | 0.94 | 130 | 50 | 0.8 | 123-038-x | 000210-038-x | 10 | 20 |
40 | 4.25 | 0.94 | 135 | 52 | 0.8 | 123-040-x | 000210-040-x | 10 | 20 |
45 | 4.12 | 0.94 | 155 | 57 | 1 | 123-045-x | 000210-045-x | 10 | 20 |
50* | 4 | 0.94 | 168 | 65 | 1.17 | 123-050-x | 000210-050-x | 10 | 20 |
51 | 4 | 0.94 | 170 | 66 | 1.2 | 123-051-x | 000210-051-x | 10 | 20 |
55 | 3.8 | 0.94 | 175 | 72 | 1.3 | 123-055-x | 000210-055-x | 10 | 20 |
60 | 3.7 | 0.94 | 185 | 77 | 1.5 | 123-060-x | 000210-060-x | 10 | 20 |
65 | 4 | 0.94 | 190 | 82 | 1.6 | 123-065-x | 000210-065-x | 10 | 20 |
75* | 3.18 | 0.94 | 245 | 92 | 1.87 | 123-075-x | 000210-075-x | 10 | 20 |
76 | 3.15 | 0.94 | 250 | 93 | 1.9 | 123-076-x | 000210-076-x | 10 | 20 |
80 | 2.9 | 0.94 | 270 | 97 | 2.1 | 123-080-x | 000210-080-x | 10 | 20 |
90 | 2.7 | 0.94 | 285 | 107 | 2.4 | 123-090-x | 000210-090-x | 10 | 20 |
100* | 2.53 | 0.94 | 297 | 117 | 2.58 | 123-100-x | 000210-100-x | 10 | 20 |
102 | 2.5 | 0.94 | 300 | 119 | 2.6 | 123-102-x | 000210-102-x | 10 | 20 |
115* | 2.3 | 0.94 | 325 | 132 | 3 | 123-115-x | 000210-115-x | 10 | 15 |
125* | 2.05 | 0.94 | 345 | 142 | 3.25 | 123-125-x | 000210-125-x | 10 | 15 |
127 | 2 | 0.94 | 350 | 144 | 3.3 | 123-127-x | 000210-127-x | 10 | 15 |
140 | 1.8 | 0.94 | 370 | 154 | 3.46 | 123-140-x | 000210-140-x | 10 | 15 |
150* | 1.54 | 0.94 | 396 | 167 | 3.67 | 123-150-x | 000210-150-x | 10 | 15 |
152 | 1.5 | 0.94 | 400 | 169 | 3.7 | 123-152-x | 000210-152-x | 10 | 15 |
175* | 1.1 | 0.7 | 770 | 190 | 4.6 | 123-175-x | 000210-175-x | 10 | 10 |
180* | 1 | 0.68 | 780 | 195 | 4.7 | 123-180-x | 000210-180-x | 10 | 10 |
200 | 0.8 | 0.55 | 840 | 215 | 5 | 123-200-x | 000210-200-x | 10 | 10 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 90 ºC |
Minimum Wall Thickness | 2.5 mm |
Diameter Range | 38-200 mm |
