Lightweight, Flexible, Film/Foil, Electroconductive, antistatic PVC Film/Foil Hoses; great for danger zones, fine-grained particles, gases, liquids.
Product Description

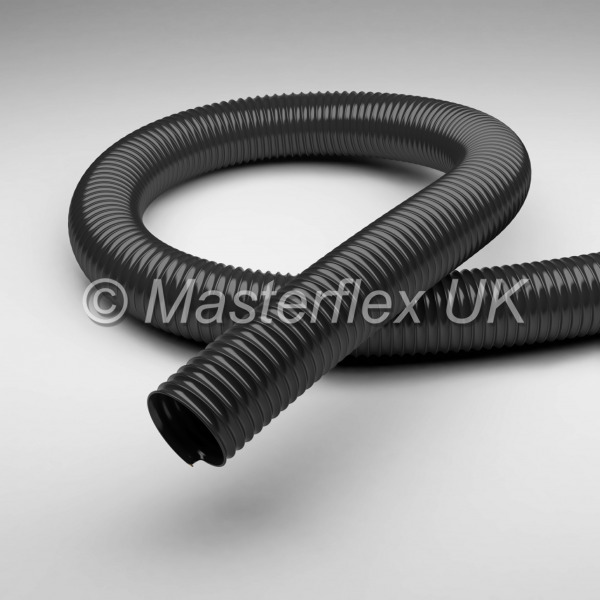

Master PVC L-F EL
Material
• spiral: spring steel wire, plastic-coated
• wall: soft PVC, electrically conductive
• wall thickness between spirals approx. 0.5 mm
Applications
• chemicals industry
• apparatus construction
• suction and transport hose, Master PVC L-F EL, for solid, liquid and gaseous media
• danger zones, which require electrically conductive hoses
• transport of fine-grained particles, such as dust and powder
Properties
• surface resistance < 106 Ohm
• approved acc. to TRGS 727 and ATEX 2014/34 EU. Details according to a certificate
• extremely flexible
• axial compressible
• mostly smooth inner lining
• good oil/alkali/acid resistance
• light
• smallest bending radius
• good chemical resistance
Temperature Range
• -20°C to +70°C
• peaks to +80°C
Master PVC L-F EL Hose Data Sheet Hoses Data Sheet
Masterflex Chemical Resistance Sheet
DN | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length |
max. production length |
bar | bar | mm | mm | kg | m | m | |||
50* | 0.7 | 0.19 | 29 | 56 | 0.33 | 340-050-x | 000434-050-x | 10 | 25 |
51* | 0.7 | 0.19 | 30 | 57 | 0.33 | 340-051-x | 000434-051-x | 10 | 25 |
60* | 0.68 | 0.19 | 35 | 68 | 0.39 | 340-060-x | 000434-060-x | 10 | 25 |
63* | 0.65 | 0.17 | 37 | 70 | 0.41 | 340-063-x | 000434-063-x | 10 | 25 |
65* | 0.61 | 0.16 | 38 | 72 | 0.42 | 340-065-x | 000434-065-x | 10 | 25 |
70* | 0.55 | 0.13 | 40 | 77 | 0.45 | 340-070-x | 000434-070-x | 10 | 25 |
75* | 0.53 | 0.13 | 42 | 81 | 0.48 | 340-075-x | 000434-075-x | 10 | 25 |
76* | 0.52 | 0.13 | 43 | 82 | 0.48 | 340-076-x | 000434-076-x | 10 | 25 |
80* | 0.48 | 0.13 | 45 | 87 | 0.51 | 340-080-x | 000434-080-x | 10 | 25 |
90* | 0.41 | 0.09 | 50 | 98 | 0.58 | 340-090-x | 000434-090-x | 10 | 25 |
100* | 0.39 | 0.09 | 54 | 107 | 0.63 | 340-100-x | 000434-100-x | 10 | 25 |
102 | 0.38 | 0.09 | 55 | 109 | 0.64 | 340-102-x | 000434-102-x | 10 | 25 |
110 | 0.34 | 0.09 | 60 | 117 | 0.69 | 340-110-x | 000434-110-x | 10 | 25 |
115* | 0.34 | 0.09 | 63 | 122 | 0.72 | 340-115-x | 000434-115-x | 10 | 25 |
120* | 0.32 | 0.09 | 65 | 128 | 0.76 | 340-120-x | 000434-120-x | 10 | 25 |
125* | 0.32 | 0.09 | 67 | 131 | 0.77 | 340-125-x | 000434-125-x | 10 | 25 |
127 | 0.32 | 0.09 | 68 | 133 | 0.78 | 340-127-x | 000434-127-x | 10 | 25 |
130* | 0.27 | 0.09 | 70 | 136 | 0.81 | 340-130-x | 000434-130-x | 10 | 25 |
140* | 0.27 | 0.06 | 75 | 147 | 0.87 | 340-140-x | 000434-140-x | 10 | 25 |
150* | 0.27 | 0.06 | 79 | 156 | 0.93 | 340-150-x | 000434-150-x | 10 | 25 |
152* | 0.27 | 0.06 | 80 | 158 | 0.94 | 340-152-x | 000434-152-x | 10 | 25 |
160 | 0.21 | 0.06 | 85 | 170 | 1.14 | 340-160-x | 000434-160-x | 10 | 25 |
170* | 0.21 | 0.06 | 90 | 180 | 1.21 | 340-170-x | 000434-170-x | 10 | 25 |
175* | 0.21 | 0.06 | 93 | 185 | 1.24 | 340-175-x | 000434-175-x | 10 | 25 |
180* | 0.21 | 0.06 | 95 | 190 | 1.28 | 340-180-x | 000434-180-x | 10 | 25 |
200* | 0.21 | 0.06 | 103 | 207 | 1.4 | 340-200-x | 000434-200-x | 10 | 25 |
203* | 0.21 | 0.06 | 105 | 210 | 1.42 | 340-203-x | 000434-203-x | 10 | 25 |
225* | 0.14 | 0.03 | 118 | 235 | 1.59 | 340-225-x | 000434-225-x | 10 | 25 |
250* | 0.14 | 0.03 | 128 | 257 | 1.75 | 340-250-x | 000434-250-x | 10 | 25 |
254* | 0.14 | 0.03 | 130 | 261 | 1.77 | 340-254-x | 000434-254-x | 10 | 25 |
275* | 0.13 | 0.03 | 143 | 285 | 1.94 | 340-275-x | 000434-275-x | 10 | 25 |
280* | 0.13 | 0.03 | 145 | 290 | 1.97 | 340-280-x | 000434-280-x | 10 | 25 |
300* | 0.13 | 0.03 | 155 | 311 | 2.11 | 340-300-x | 000434-300-x | 10 | 25 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 70 °C |
Minimum Wall Thickness | 0.5 mm |
Diameter Range | 50-300 mm |
