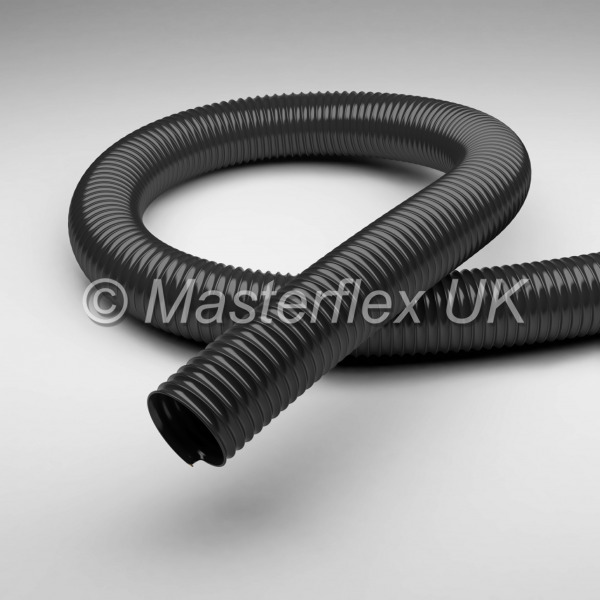

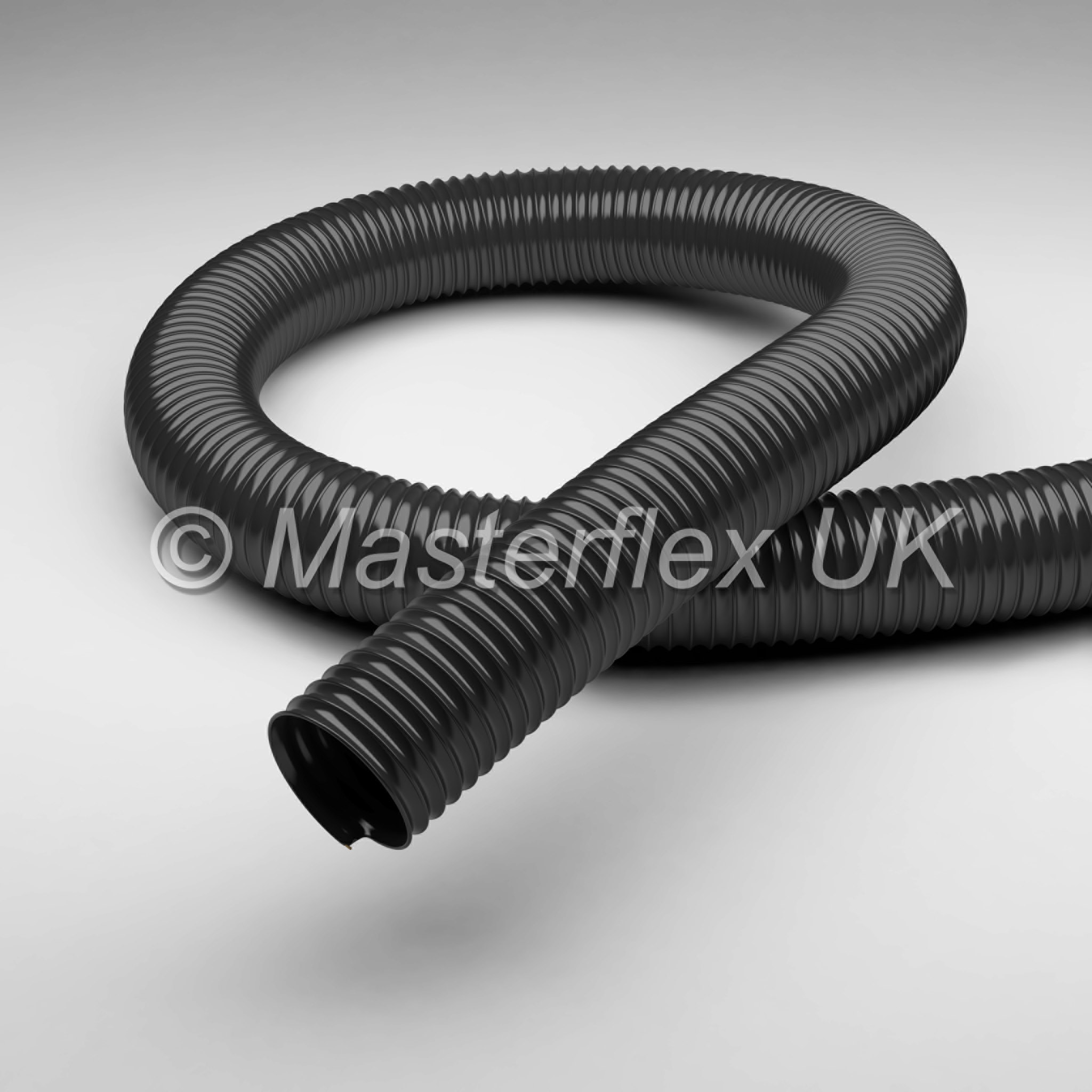

Master PVC L-F L

Master PVC L-F L Hose

Light Duty, Light Weight Flexible PVC ducting hose; made from soft black PVC, reinforced with a PVC coated spring steel wire helix. +70ºC (Intermittent +80ºC)

Product Description

Master PVC L-F L

Description

This PVC coated, light-duty, very flexible and lightweight Suction Hose, Master PVC L-F L, is great for automotive, industrial fumes and general dust, as detailed below:

• Soft PVC ducting
• Reinforced with high tensile PVC coated steel wire helix

Properties

• Light duty
• Very flexible and lightweight
• Small bend radius
• Flame retardant

Applications

• Automotive and industrial fumes
• General dust under low pressure or vacuum

Colour

Black

Size Range

25mm to 150mm

Temp Range

-0ºC to +70ºC (intermittent to +80ºC)

Master PVC L-F L Hose Data Sheet

Download Masterflex Chemical Resistance Data Sheet

DNop. pressurevacuumbend radiusouter Øweight/mold article no.new article no.standard
length
max. production length
barbarmmmmkgmm
251.50.1813300.15662L-025-x007577-025-x1020
321.30.1816370.15662L-032-x007577-032-x1020
381.20.1820430.2662L-038-x007577-038-x1020
451.10.1423500.25662L-045-x007577-045-x1020
511.10.1326560.3662L-051-x007577-051-x1020
5710.1228620.32662L-057-x007577-057-x1020
630.80.1231680.35662L-063-x007577-063-x1020
760.60.0838810.6662L-076-x007577-076-x1020
800.50.0838850.65662L-080-x007577-080-x1020
890.50.0745940.7662L-089-x007577-089-x1020
1020.40.06501070.75662L-102-x007577-102-x1020
1150.20.04581200.8662L-115-x007577-115-x1020
1270.20.03641320.85662L-127-x007577-127-x1020
1520.10.02761580.9662L-152-x007577-152-x1020
All data refers to a medium and ambient temperature of +20 °C.
* Available on request
Subject to technical changes and colour deviations.

Product Features

Maximum Temperature70 ºC
Minimum Wall Thickness0.35 mm
Diameter Range25-152 mm
