Medium Duty Flexible PVC hose and ducting manufactured from soft grey PVC, reinforced with high tensile PVC coated steel wire helix. +70ºC (Intermittent +85ºC)
Product Description

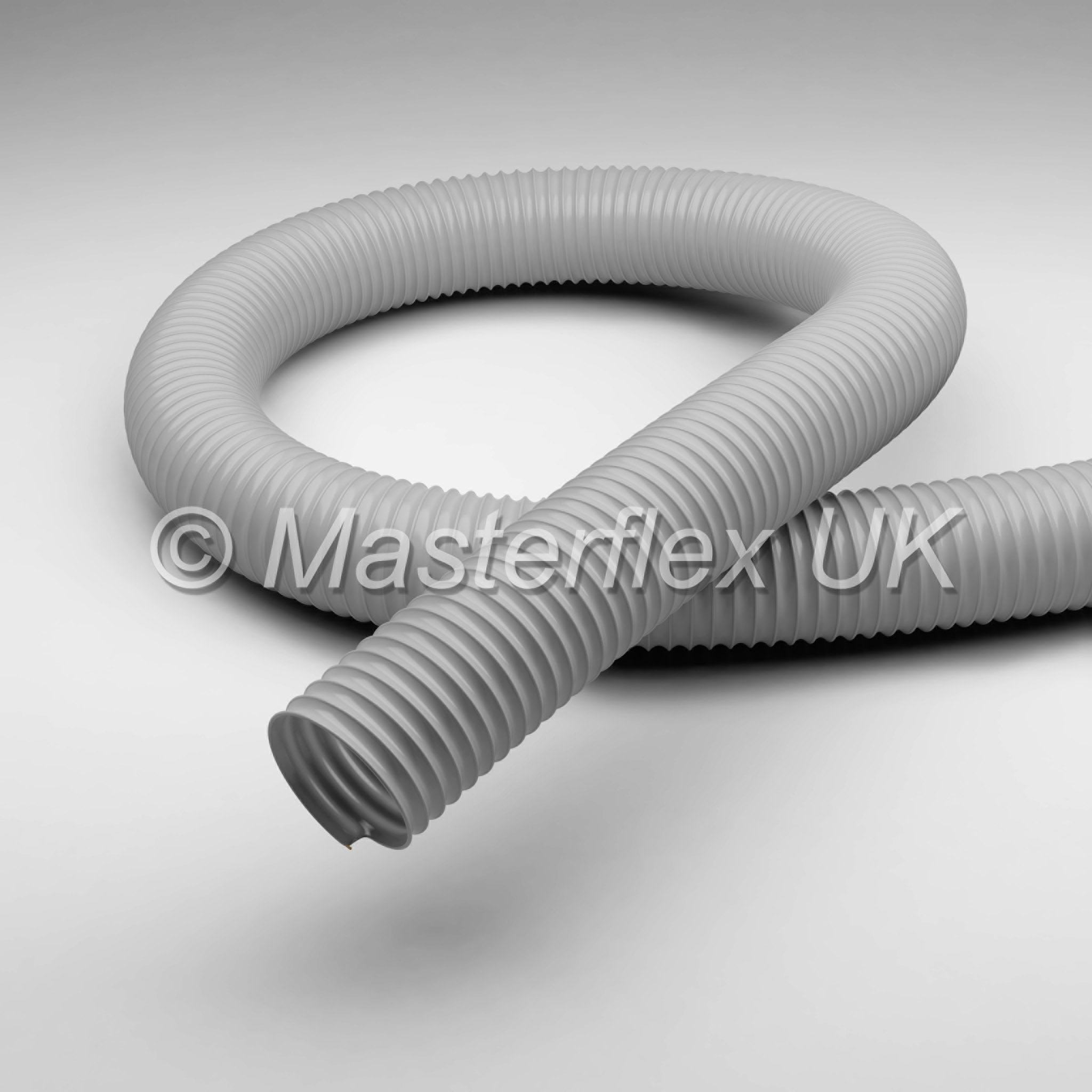

Master-PVC L-F M Hose
Description
We offer this soft PVC Suction Hose, Master-PVC L-F M Hose, which is great for general purpose engine fumes, industrial fumes and moderate abrasive dust; as detailed below:
• Soft PVC ducting
• Reinforced with high tensile PVC coated steel wire helix
Properties
• Medium duty
• Very flexible and lightweight
• Small bend radius
• Flame retardant
Applications
• Automotive fumes
• Industrial fumes
• Moderate abrasive dust under low pressure and vacuum
Colour
Grey
Size Range
25mm to 150mm
Temp Range
0ºC to +70ºC (intermittent to +85ºC).
Master PVC L-F M Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
DN | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length |
max. production length |
bar | bar | mm | mm | kg | m | m | |||
25 | 1.7 | 0.2 | 14 | 31 | 0.15 | 662M-025-x | 007578-025-x | 10 | 20 |
32 | 1.5 | 0.2 | 18 | 38 | 0.15 | 662M-032-x | 007578-032-x | 10 | 20 |
38 | 1.4 | 0.2 | 22 | 44 | 0.25 | 662M-038-x | 007578-038-x | 10 | 20 |
45 | 1.3 | 0.18 | 25 | 51 | 0.32 | 662M-045-x | 007578-045-x | 10 | 20 |
51 | 1.3 | 0.15 | 28 | 57 | 0.35 | 662M-051-x | 007578-051-x | 10 | 20 |
57 | 1.2 | 0.14 | 30 | 63 | 0.41 | 662M-057-x | 007578-057-x | 10 | 20 |
63 | 1 | 0.14 | 34 | 69 | 0.45 | 662M-063-x | 007578-063-x | 10 | 20 |
76 | 0.8 | 0.1 | 40 | 82 | 0.6 | 662M-076-x | 007578-076-x | 10 | 20 |
80 | 0.7 | 0.09 | 42 | 86 | 0.62 | 662M-080-x | 007578-080-x | 10 | 20 |
89 | 0.7 | 0.09 | 48 | 95 | 0.65 | 662M-089-x | 007578-089-x | 10 | 20 |
102 | 0.6 | 0.08 | 52 | 108 | 0.75 | 662M-102-x | 007578-102-x | 10 | 20 |
115 | 0.5 | 0.07 | 60 | 121 | 0.8 | 662M-115-x | 007578-115-x | 10 | 20 |
127 | 0.4 | 0.06 | 66 | 133 | 0.9 | 662M-127-x | 007578-127-x | 10 | 20 |
152 | 0.3 | 0.05 | 80 | 158 | 1.1 | 662M-152-x | 007578-152-x | 10 | 20 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 70 ºC |
Minimum Wall Thickness | 0.55 mm |
Diameter Range | 25-152 mm |
