Master Santo LF – flexible Santoprene™ (TPV) hose is good for liquids & gaseous media; including steam extraction & air, under low pressure.
Product Description

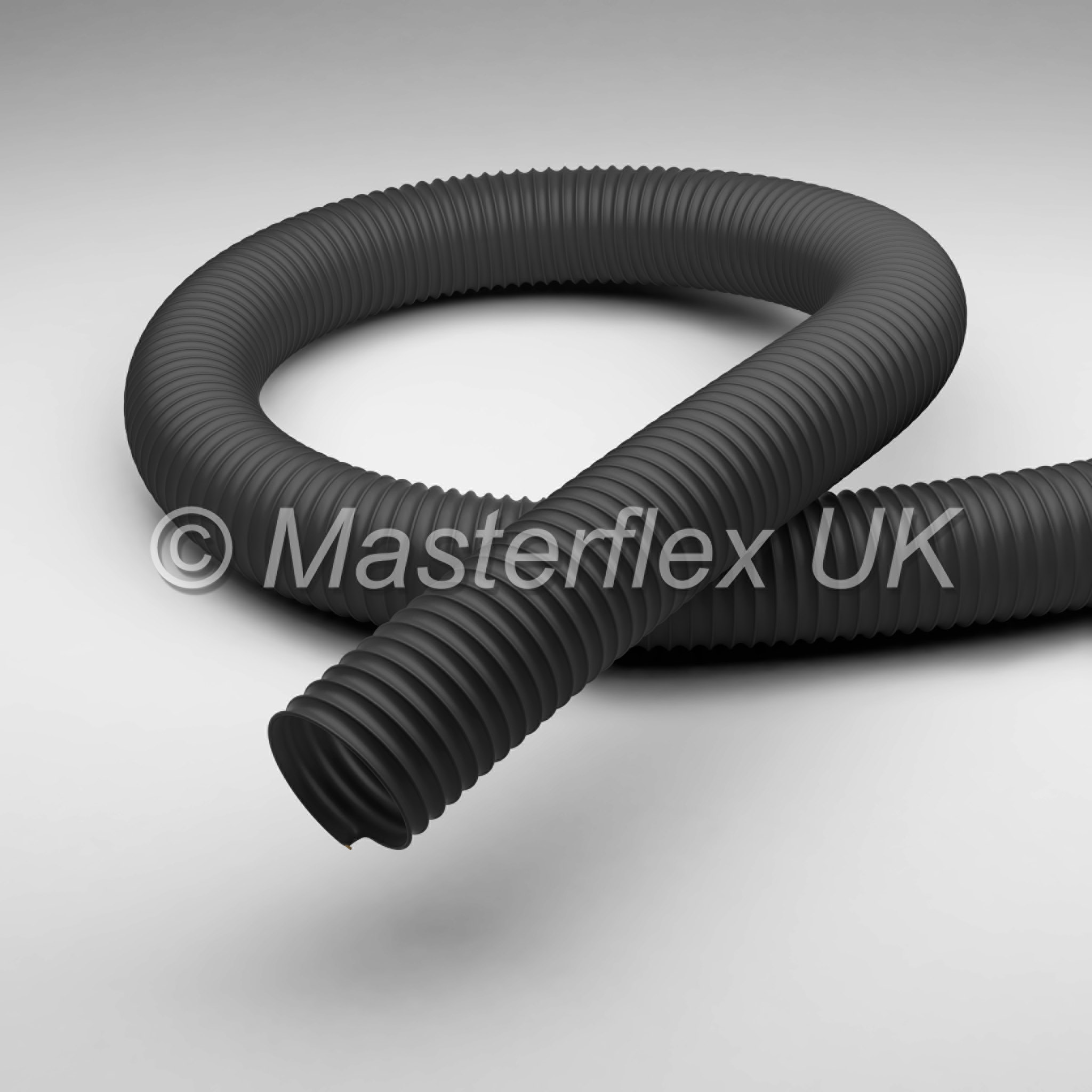

Master Santo LF
Description
This oil-resistant hose, Master Santo LF, is both lightweight and flexible and is great for automotive air intakes, oil mist extraction, industrial fumes, chemical fumes and much more.
• Thermoplastic rubber ducting
• Wire spiral reinforcement
Properties
• Lightweight and flexible
• Good general chemical resistance
• UV and ozone resistant
Applications
• Automotive air intake
• Materials drying
• Oil mist extraction
• Chemical fumes
• Industrial fumes
• Steam
Colour
Black
Size Range
26mm to 200mm
Temp Range
-40ºC to +130ºC (intermittent to +150ºC)
Master SANTO L F Hose Data Sheet
Download the Masterflex Chemical Resistance Data Sheet
Read More About Oil Resistance at Science Direct
DN | op. pressure | vacuum | bend radius | outer Ø | weight/m | old article no. | new article no. | standard length |
max. production length |
bar | bar | mm | mm | kg | m | m | |||
26 | 1.7 | 0.4 | 25 | 31 | 0.19 | 321-026-x | 007576-026-x | 10 | 20 |
32 | 1.5 | 0.35 | 32 | 38 | 0.26 | 321-032-x | 007576-032-x | 10 | 20 |
38 | 1.4 | 0.3 | 38 | 44 | 0.32 | 321-038-x | 007576-038-x | 10 | 20 |
44 | 1.3 | 0.28 | 44 | 50 | 0.39 | 321-044-x | 007576-044-x | 10 | 20 |
51 | 1.3 | 0.28 | 51 | 57 | 0.45 | 321-050-x | 007576-050-x | 10 | 20 |
63 | 1 | 0.25 | 63 | 69 | 0.5 | 321-065-x | 007576-065-x | 10 | 20 |
76 | 0.8 | 0.2 | 76 | 82 | 0.65 | 321-075-x | 007576-075-x | 10 | 20 |
80 | 0.7 | 0.18 | 80 | 86 | 0.7 | 321-080-x | 007576-080-x | 10 | 20 |
102 | 0.6 | 0.18 | 102 | 111 | 0.75 | 321-100-x | 007576-100-x | 10 | 20 |
127 | 0.6 | 0.12 | 127 | 132 | 0.85 | 321-125-x | 007576-125-x | 10 | 20 |
152 | 0.5 | 0.11 | 152 | 157 | 0.95 | 321-150-x | 007576-150-x | 10 | 20 |
203 | 0.4 | 0.1 | 203 | 210 | 1.7 | 321-200-x | 007576-200-x | 10 | 15 |
254 | 0.4 | 0.1 | 254 | 262 | 1.8 | 321-250-x | 007576-250-x | 10 | 15 |
304 | 0.3 | 0.1 | 304 | 312 | 2.8 | 321-300-x | 007576-300-x | 10 | 15 |
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 130 ºC |
Minimum Wall Thickness | 0.5 mm |
Diameter Range | 26-400 mm |
