Master VAC EL

Product Description

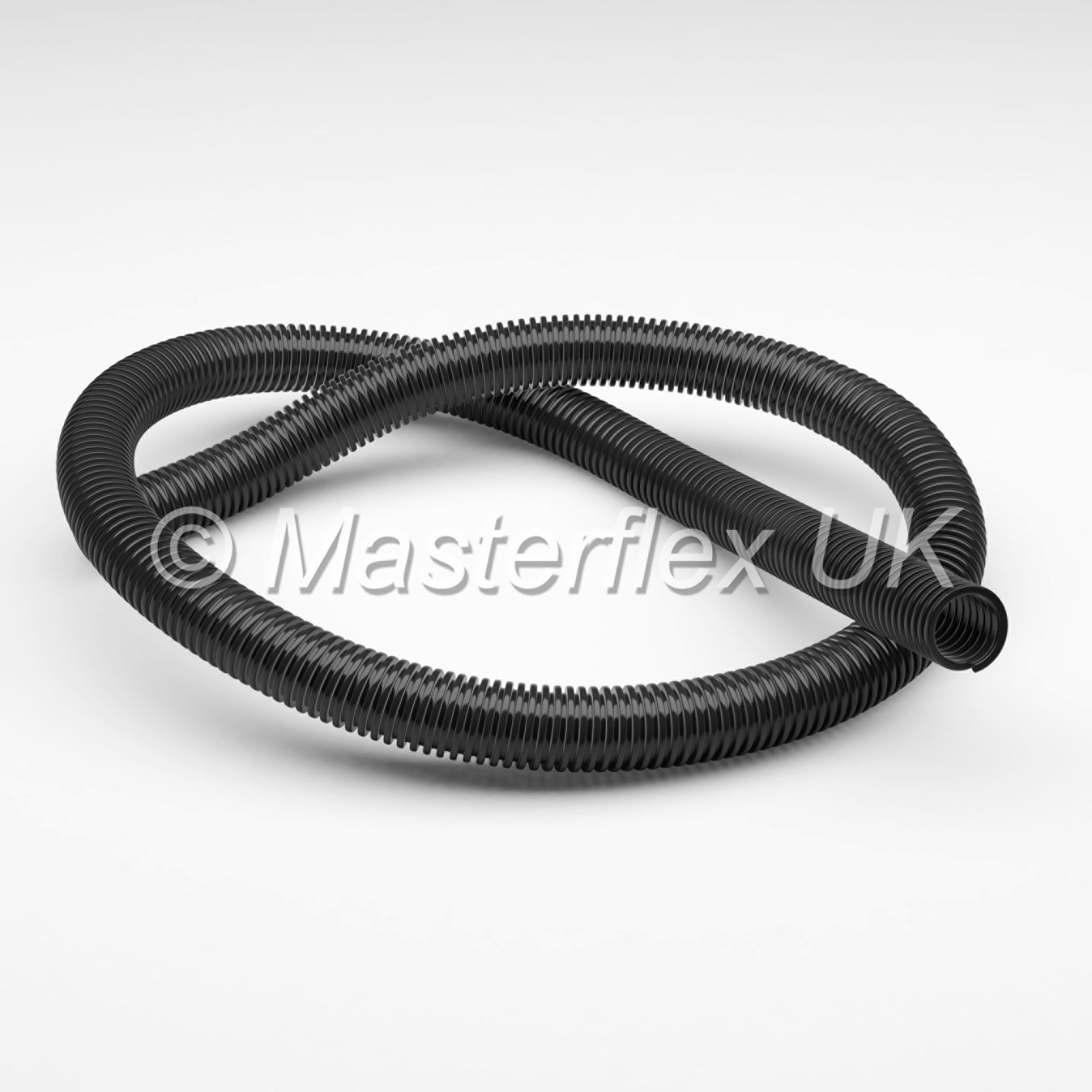

Master VAC EL

Description

This Vacuum Hose is very flexible, lightweight, crush resistant and it is great for both domestic and industrial vacuum cleaners, as well as, dust and fume extraction where the elimination of static build-up is of prime importance:

Material

wall: PE-EVA co-polymer

Properties

• Very flexible and lightweight
• Suction Hose
• Crush resistant
• Electrically conductive
• Antistatic Hoses (Surface resistance < 10 to the 6 ohms)

Applications

• Domestic and industrial vacuum cleaners
• Dust and fume extraction where the elimination of static build-up is of prime importance

Colour

Black.

Size Range

32mm to 50mm.

Temp Range-40ºC to +60ºC (intermittent to +70ºC).

Options

Screw-on cuffs available on request

Master VAC EL Hose Data Sheet

Download Masterflex Chemical Resistance Data Sheet

Learn About Vacuum Cleaners

DN	vacuum	bend radius	weight/m	old article no.	new article no.	standard length	max. production length
	bar	mm	kg			m	m
25	0.74	60	0.15	670E-025-x	000467-025-x	15	20
28*	0.74	70	0.19	670E-028-x	000467-028-x	15	20
32	0.49	70	0.22	670E-032-x	000467-032-x	20	20
38	0.49	80	0.29	670E-038-x	000467-038-x	20	20
45*	0.49	90	0.37	670E-045-x	000467-045-x	20	20
50	0.39	100	0.42	670E-050-x	000467-050-x	20	20
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations.
