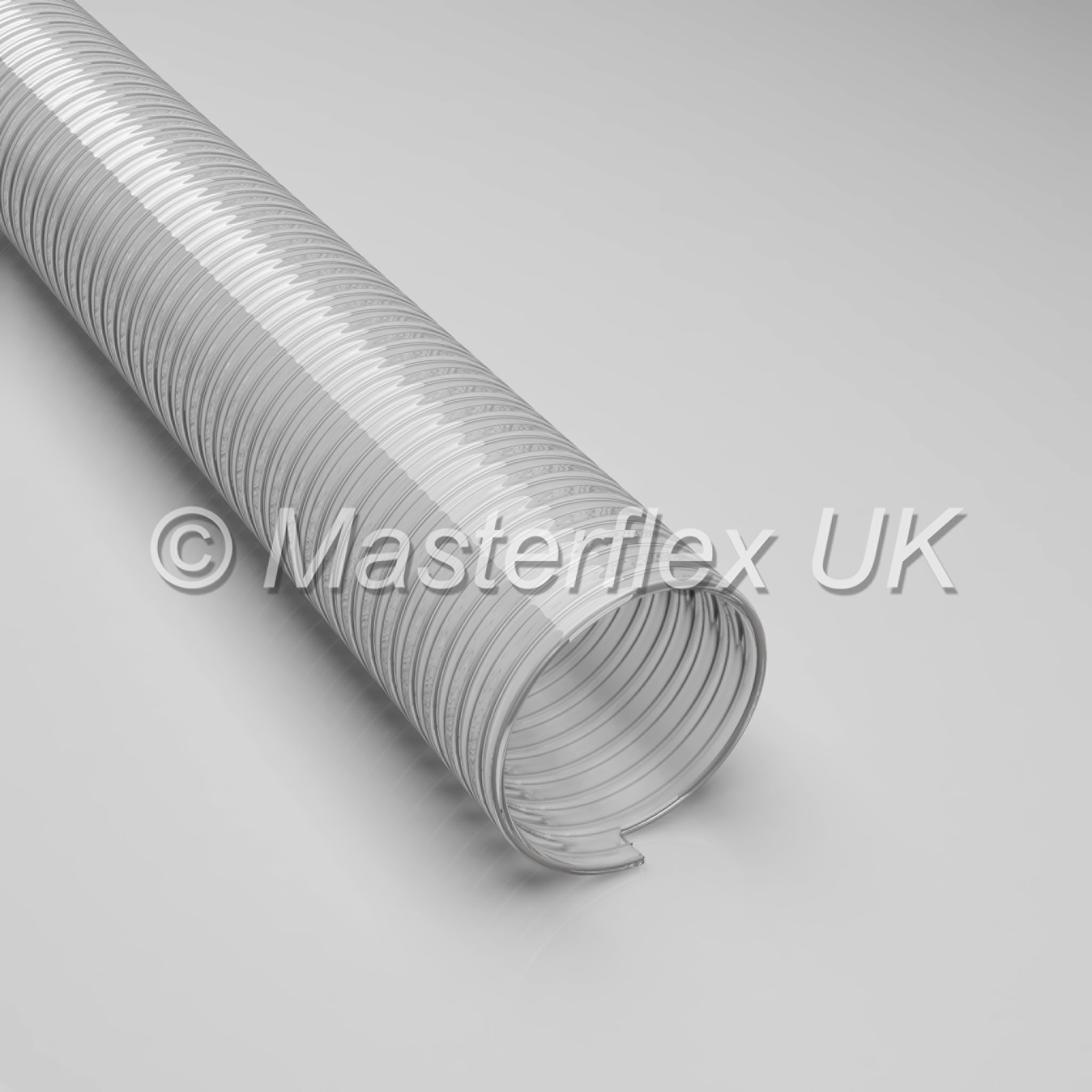

Polderflex PUR Food

Product Description

Polderflex PUR Food

Material
• spiral: spring steel wire (stainless steel 1.4310)
• wall: pure polyether polyurethane, food-grade quality (FDA)
• wall thickness: 3-5 mm depending on DN

Applications

• pharmaceutical industry
• chemicals industry
• food industry
Properties
• Polderflex PUR Food hose conforms with EU Guideline 10/2011
• approved for food-grade categories: A, B, C, D1, D2, E (contact durations acc. to Test Report)
• materials comply with the following food regulations:
– FDA 21 CFR §177.2600
– FDA 21 CFR §178.2010
• extra heavyweight
• flexible
• smooth inner and outer linings
• odourless/tasteless
• microbe and hydrolysis-resistant
• increased pressure and vacuum resistance
• halogen and plasticizer-free
• optimum flow characteristics
• good chemical resistance
• highly abrasion-resistant
• high tensile strength
• generally good UV and ozone resistance
• according to TRGS 727 and ATEX 2014/34 EU, with earthing at both ends of the spiral for non-flammable dust/bulk solids in Zone 22. For gases/liquids with low conductivity
of electrostatic charges in Zone 2.

Temperature Range

• -40°C to +90°C
• peaks to +125°C

Polderflex PUR Food Hose Data Sheet

Masterflex Chemical Resistance Sheet

DN	op. pressure	vacuum	bend radius	outer Ø	weight/m	old article no.	new article no.	standard length	max. production length
	bar	bar	mm	mm	kg			m	m
32*	5.75	0.93	160	41.5	0.88	118F-032-x	000188-032-x	10	20
38*	5,625	0.93	190	47.5	1.03	118F-038-x	000188-038-x	10	20
40*	5.5	0.93	200	49.5	1.07	118F-040-x	000188-040-x	10	20
50*	5	0.93	245	61.5	1.23	118F-050-x	000188-050-x	10	20
51*	5.25	0.93	250	62.5	1.25	118F-051-x	000188-051-x	10	20
60*	5,125	0.93	300	71.5	1.44	118F-060-x	000188-060-x	10	20
65*	5	0.93	325	76.5	1.56	118F-065-x	000188-065-x	10	20
70*	5.05	0.93	350	81.5	1.77	118F-070-x	000188-070-x	10	20
75*	5.01	0.93	375	86.5	1.9	118F-075-x	000188-075-x	10	20
76*	5	0.93	380	87.5	1.92	118F-076-x	000188-076-x	10	20
80*	4.5	0.88	400	91.5	2.01	118F-080-x	000188-080-x	10	20
100*	4.16	0.86	580	111	3	118F-100-x	000188-100-x	10	20
102*	4,125	0.86	600	113	3.1	118F-102-x	000188-102-x	10	20
125*	3	0.66	692	136	3.79	118F-125-x	000188-125-x	10	20
127*	3.25	0.64	700	138.5	3.85	118F-127-x	000188-127-x	10	20
150*	2.22	0.44	792	162	4.53	118F-150-x	000188-150-x	10	20
152*	2,125	0.42	800	164	4.59	118F-152-x	000188-152-x	10	20
All data refers to a medium and ambient temperature of +20 °C. * Available on request Subject to technical changes and colour deviations.
