Combiflex Cast-on PU Swivel Flange

Product Description

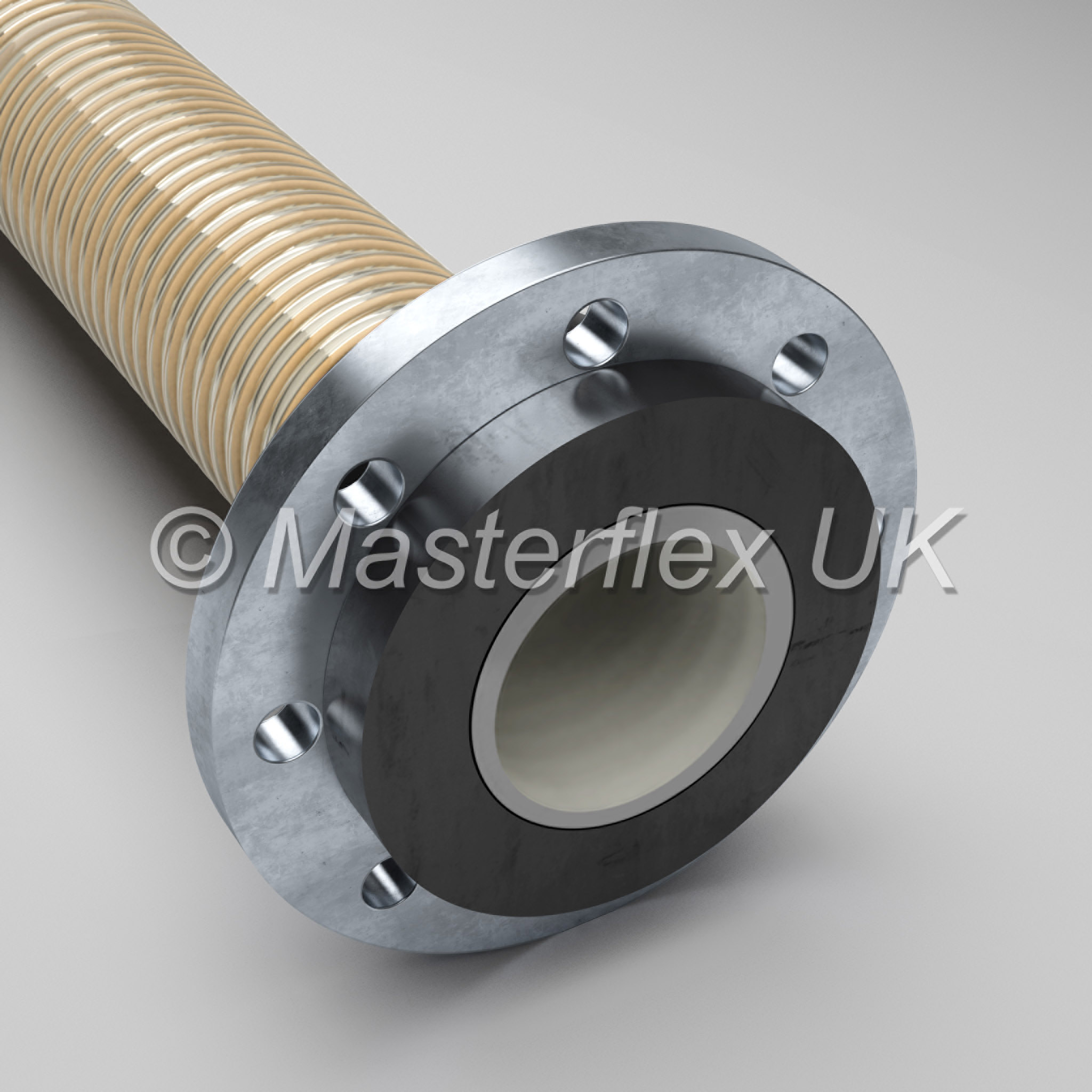

Polyurethane Slip-On Swivel Flange:

Material

• loose flange: aluminium
• collar: abrasion-resistant polyurethane

Applications

Polyurethane Slip-On Swivel Flange for Master-PUR Inline hose types

Properties

• lightweight
• high tension-proof connection
• microbe-resistant
• front-flush hose integration
• abrasion-resistant
• shock-proof
• pressure level PN 6 at DN 200 or PN 10/16 at all other DN
• gas-tight / watertight

Temperature Range

• -40°C to +90°C
• peaks to +125°C

DN flange	pipe external dimension	DN hose	hole circle	weight/piece	Da: Outer Ø Cast part	total length	For Master PUR type	old article no.	new article no.
	mm		mm	kg	mm	mm
50	57	51	125	0.92	75	66	L/H/HX/Performance	572-050-057-AL	5506
50	60.3	51	125	0.92	75	66	L/H/HX/Performance	572-050-060-AL	5577
65	76.1	65	145	1.19	90	76	L/H/HX/Performance	572-065-076-AL	5519
65	76.1	70	145	1.14	90	76	L/H/HX/Performance	572-070-076-AL	/
80	88.9	76	160	1.48	105	76	L/H/HX/Performance	572-075-088-AL	5579
80	88.9	80	160	1.43	105	76	L/H/HX/Performance	572-080-088-AL	5425
100	108	102	180	1.74	131	86	L/H/HX/Performance	572-100-108-AL	5442
100	114.3	102	180	1.74	131	86	L/H/HX/Performance	572-100-114-AL	5534
125	133	127	210	2.26	156	92	L/H/HX/Performance	572-125-133-AL	5540
125	139.7	127	210	2.26	156	92	L/H/HX/Performance	572-125-139-AL	5594
150	159	152	240	2.82	184	98	L/H/HX/Performance	572-150-159-AL	5549
150	168.3	152	240	2.82	184	98	L/H/HX/Performance	572-150-168-AL	5599
150	177.8	160	240	2.53	184	98	L/H/HX/Performance	572-160-168-AL	5560
200	219.1	203	295	4.18	235	108	L/H/HX/Performance	572-200-219-AL	5482
250	267	250	350	5.88	292	118	L/H/HX/Performance	572-250-267-AL	5569
250	273	250	350	5.88	292	118	L/H/HX/Performance	572-250-273-AL	5610
300	323.9	300	400	7.12	344	123	L/H/HX/Performance	572-300-323-AL	5614
50	57	51	125	0.92	75	66	Inline	574-051-107-AL	2008
50	60.3	51	125	0.92	75	66	Inline	574-051-107-AL	5620
65	76.1	65	145	1.19	90	76	Inline	574-054-107-AL	5622
80	88.9	76	160	1.48	105	76	Inline	574-076-107-AL	5624
80	88.9	80	160	1.43	105	76	Inline	574-080-107-AL	5625
100	108	102	180	1.74	131	86	Inline	574-102-107-AL	2012
100	114.3	102	180	1.74	131	86	Inline	574-102-107-AL	5626
125	133	127	210	2.26	156	92	Inline	574-127-107-AL	5631
125	139.7	127	210	2.26	156	92	Inline	574-127-107-AL	5631
150	159	152	240	2.82	184	98	Inline	574-152-107-AL	2014
150	168.3	152	240	2.82	184	98	Inline	574-152-107-AL	5633
200	219.1	203	295	4.18	235	108	Inline	574-204-107-AL	2015
All data refers to a medium and ambient temperature of +20 °C. Subject to technical changes and colour deviations.
