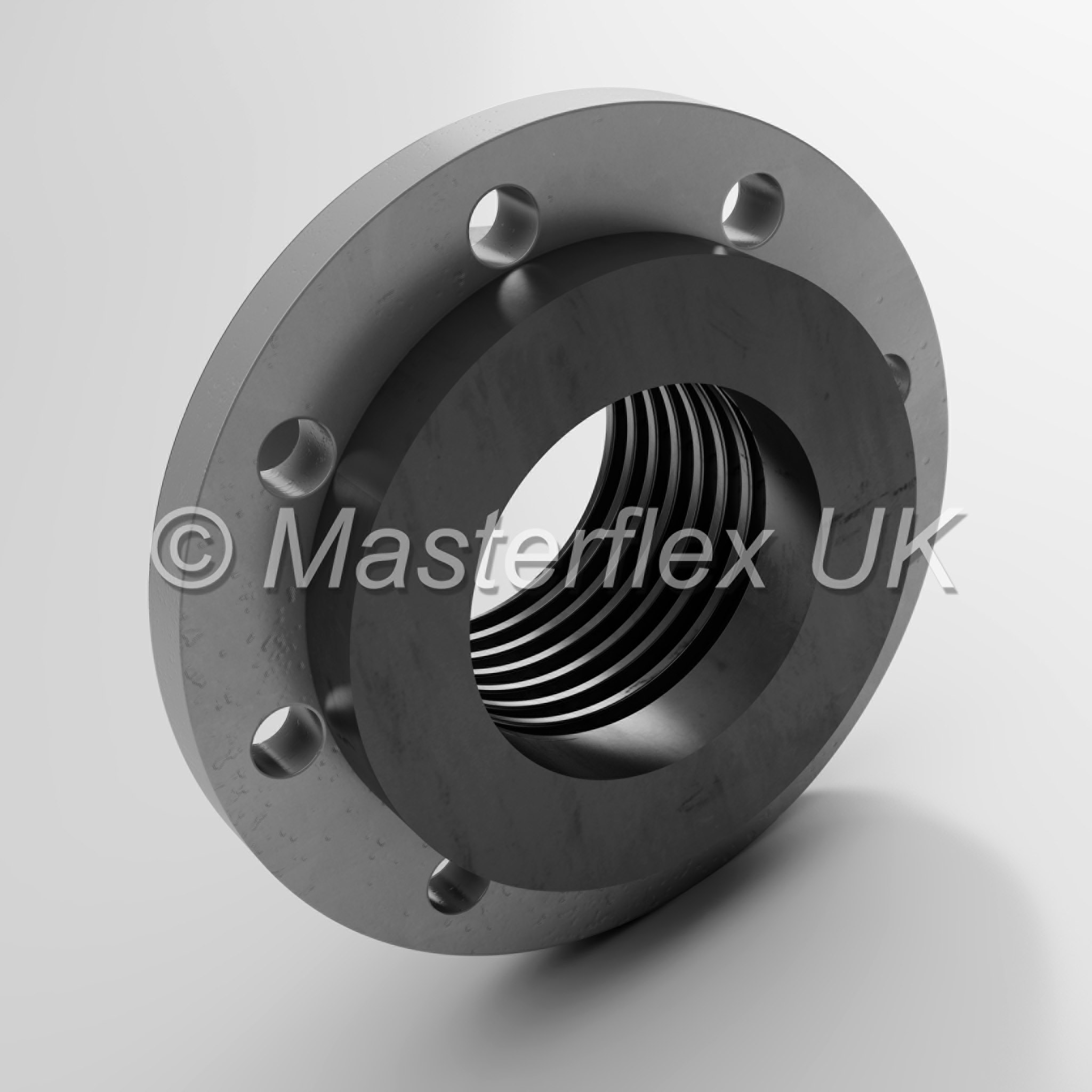

Combiflex PU Swivel Flange

Product Description

Polyurethane Swivel Flange:

Material

• loose flange: aluminium
• collar: abrasion-resistant polyurethane

Applications

Polyurethane Swivel Flange for the hose types Master-PUR L / H / HX

Properties

• abrasion and microbe-resistant
• connection option without the adjustable constriction of the cross-section
• high tension-proof
• reusable and exchangeable
• simple mounting
• shock-proof
• pressure level PN 6 at DN 200 or PN 10/16 at all other DN

Temperature Range

• -40°C to +90°C
• peaks to +125°C

Available on request

available on request in a permanently mounted version for watertight, tensile strengthened connections, other DN sizes and colour.

DN flange	pipe external dimension	DN hose	hole circle	weight/piece	Da: Outer Ø Screw in socket	total length	For Master PUR type	old article no.	new article no.
	mm		mm	kg	mm	mm
50	57	50	125	0.92	75	66	L	570-050-057-AL	1946
50	60.3	50	125	0.92	75	66	L	570-050-060-AL	1947
65	76.1	65	145	1.19	90	76	L	570-065-076-AL	/
65	76.1	70	145	1.14	90	76	L	570-070-076-AL	/
80	88.9	75	160	1.48	105	76	L	570-075-088-AL	1948
80	88.9	80	160	1.43	105	76	L	570-080-088-AL	1949
100	108	100	180	1.74	131	86	L	570-100-108-AL	1951
100	114.3	100	180	1.74	131	86	L	570-100-114-AL	1952
125	133	120	210	2.37	156	92	L	570-120-133-AL	1953
125	139.7	120	210	2.37	156	92	L	570-120-139-AL	/
125	133	125	210	2.26	156	92	L	570-125-133-AL	1954
125	139.7	125	210	2.26	156	92	L	570-125-139-AL	1955
150	159	140	240	3.09	184	98	L	570-140-159-AL	1956
150	159	150	240	2.82	184	98	L	570-150-159-AL	1957
150	168.3	150	240	2.82	184	98	L	570-150-168-AL	1958
150	177.8	160	240	2.53	184	98	L	570-160-168-AL	/
200	219.1	200	295	4.18	235	108	L	570-200-219-AL	1959
250	267	250	350	5.88	292	118	L	570-250-267-AL	1960
250	273	250	350	5.88	292	118	L	570-250-273-AL	/
300	323.9	300	400	7.12	344	123	L	570-300-323-AL	1961
50	57	50	125	0.92	75	66	H	571-050-057-AL	1962
50	60.3	50	125	0.92	75	66	H	571-050-060-AL	1963
65	76.1	65	145	1.19	90	76	H	571-065-076-AL	/
65	76.1	70	145	1.14	90	76	H	571-070-076-AL	1964
80	88.9	75	160	1.48	105	76	H	571-075-088-AL	/
80	88.9	80	160	1.43	105	76	H	571-080-088-AL	1965
100	108	100	180	1.74	131	86	H	571-100-108-AL	1966
100	114.3	100	180	1.74	131	86	H	571-100-114-AL	1967
125	133	120	210	2.37	156	92	H	571-120-133-AL	/
125	139.7	120	210	2.37	156	92	H	571-120-139-AL	/
125	133	125	210	2.26	156	92	H	571-125-133-AL	1969
125	139.7	125	210	2.26	156	92	H	571-125-139-AL	1970
150	159	140	240	3.09	184	98	H	571-140-159-AL	/
150	159	150	240	2.82	184	98	H	571-150-159-AL	1971
150	168.3	150	240	2.82	184	98	H	571-150-168-AL	1972
150	177.8	160	240	2.53	184	98	H	571-160-168-AL	/
200	219.1	200	295	4.18	235	108	H	571-200-219-AL	1973
250	267	250	350	5.88	292	118	H	571-250-267-AL	1974
250	273	250	350	5.88	292	118	H	571-250-273-AL	1975
300	323.9	300	400	7.12	344	123	H	571-300-323-AL	1976
50	57	50	125	0.92	75	66	HX	573-050-057-AL	1990
50	60.3	50	125	0.92	75	66	HX	573-050-060-AL	1991
65	76.1	65	145	1.19	90	76	HX	573-065-076-AL	1992
65	76.1	70	145	1.14	90	76	HX	573-070-076-AL	1993
80	88.9	75	160	1.48	105	76	HX	573-075-088-AL	/
80	88.9	80	160	1.43	105	76	HX	573-080-088-AL	1994
100	108	100	180	1.74	131	86	HX	573-100-108-AL	1995
100	114.3	100	180	1.74	131	86	HX	573-100-114-AL	1996
125	133	120	210	2.37	156	92	HX	573-120-133-AL	/
125	139.7	120	210	2.37	156	92	HX	573-120-139-AL	/
125	133	125	210	2.26	156	92	HX	573-125-133-AL	1998
125	139.7	125	210	2.26	156	92	HX	573-125-139-AL	1999
150	159	140	240	3.09	184	98	HX	573-140-159-AL	2000
150	159	150	240	2.82	184	98	HX	573-150-159-AL	2001
150	168.3	150	240	2.82	184	98	HX	573-150-168-AL	2002
150	177.8	160	240	2.53	184	98	HX	573-160-168-AL	2003
200	219.1	200	295	4.18	235	108	HX	573-200-219-AL	2004
250	267	250	350	5.88	292	118	HX	573-250-267-AL	2005
250	273	250	350	5.88	292	118	HX	573-250-273-AL	2006
300	323.9	300	400	7.12	344	123	HX	573-300-323-AL	2007
50	57	50	125	0.92	75	66	Performance	575-051-057	7174
50	60.3	50	125	0.92	75	66	Performance	575-051-060	/
65	76.1	65	145	1.19	90	76	Performance	575-065-076	6216
80	88.9	75	160	1.48	105	76	Performance	575-076-088	2017
80	88.9	80	160	1.43	105	76	Performance	575-080-088	2018
100	108	100	180	1.74	131	86	Performance	575-102-108	/
100	114.3	100	180	1.74	131	86	Performance	575-102-114	2019
125	133	125	210	2.26	156	92	Performance	575-127-133	7103
125	139.7	125	210	2.26	156	92	Performance	575-127-139	/
150	159	140	240	3.09	184	98	Performance	575-140-159	/
150	159	150	240	2.82	184	98	Performance	575-152-159	/
150	168.3	150	240	2.82	184	98	Performance	575-152-168	6096
All data refers to a medium and ambient temperature of +20 °C. Subject to technical changes and colour deviations.
