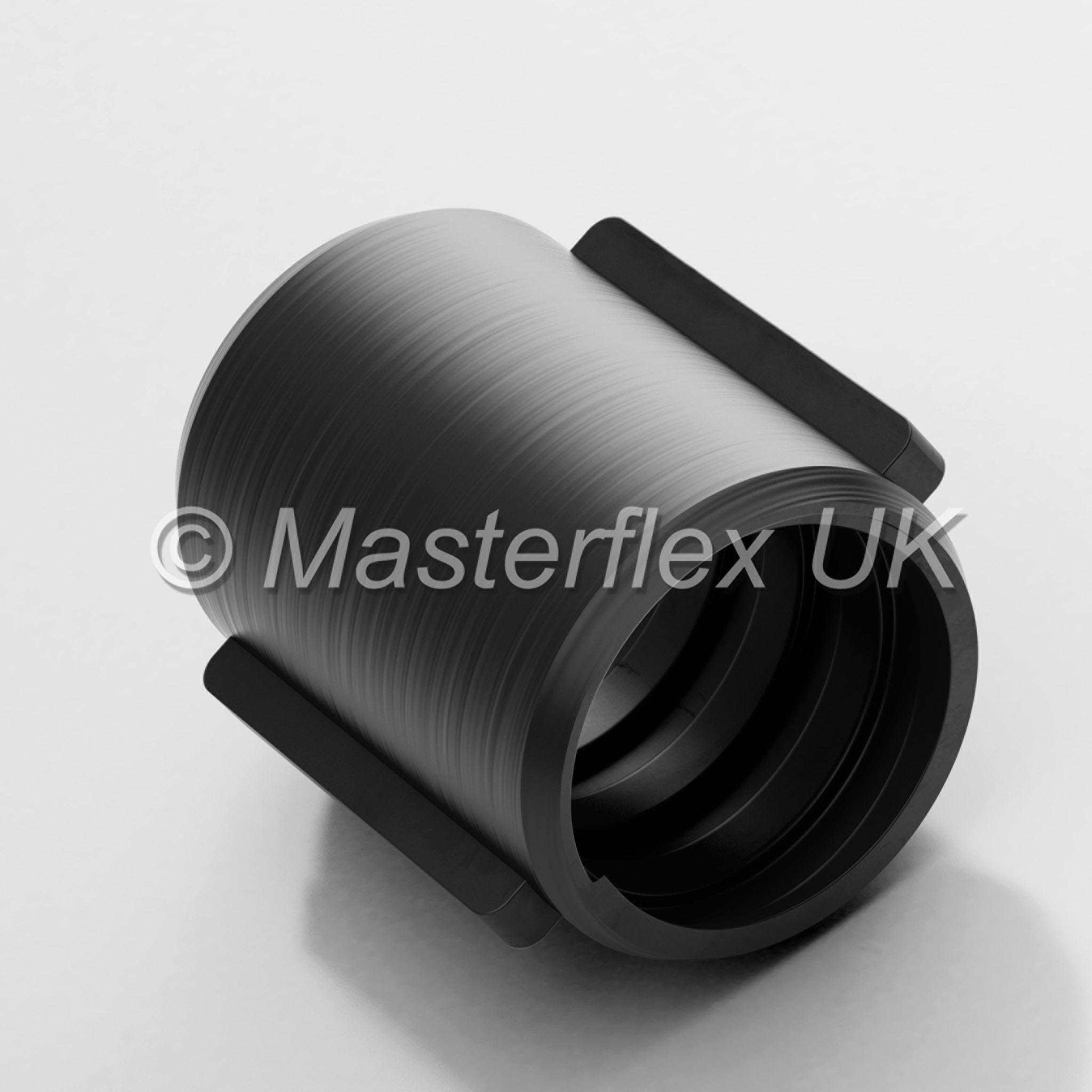

Screwable PU Hose Connector for Master-PUR L and H hoses.
Product Description
PU Hose Connector
Material
Abrasion-resistant polyurethane
Applications
Screwable hose connector for the hose types Master-PUR L/H/HX
Properties
• lightweight
• high tension-proof and primarily water-tight connection
• reusable and exchangeable
• simple mounting
• abrasion-resistant
• microbe and hydrolysis-resistant
• shock-proof
Temperature Range
• -40°C to +90°C
• peaks to +125°C
| DN Hose | total length | weight/piece | old article no. | new article no. |
| mm | kg | |||
| 25 | 65 | 0.09 | 580-025-107 | 2020 |
| 32 | 70 | 0.1 | 580-032-107 | 2021 |
| 38 | 75 | 0.13 | 580-038-107 | 2022 |
| 50 | 90 | 0.2 | 580-050-107 | 2023 |
| 65 | 100 | 0.23 | 580-065-107 | 2025 |
| 80 | 115 | 0.39 | 580-080-107 | 2028 |
| 100 | 125 | 0.58 | 580-100-107 | 2029 |
| All data refers to a medium and ambient temperature of +20 °C. Subject to technical changes and colour deviations. |
||||
Product Features
| Maximum Temperature | 90 °C |
| Diameter Range | 25-100 mm |
