Product Description

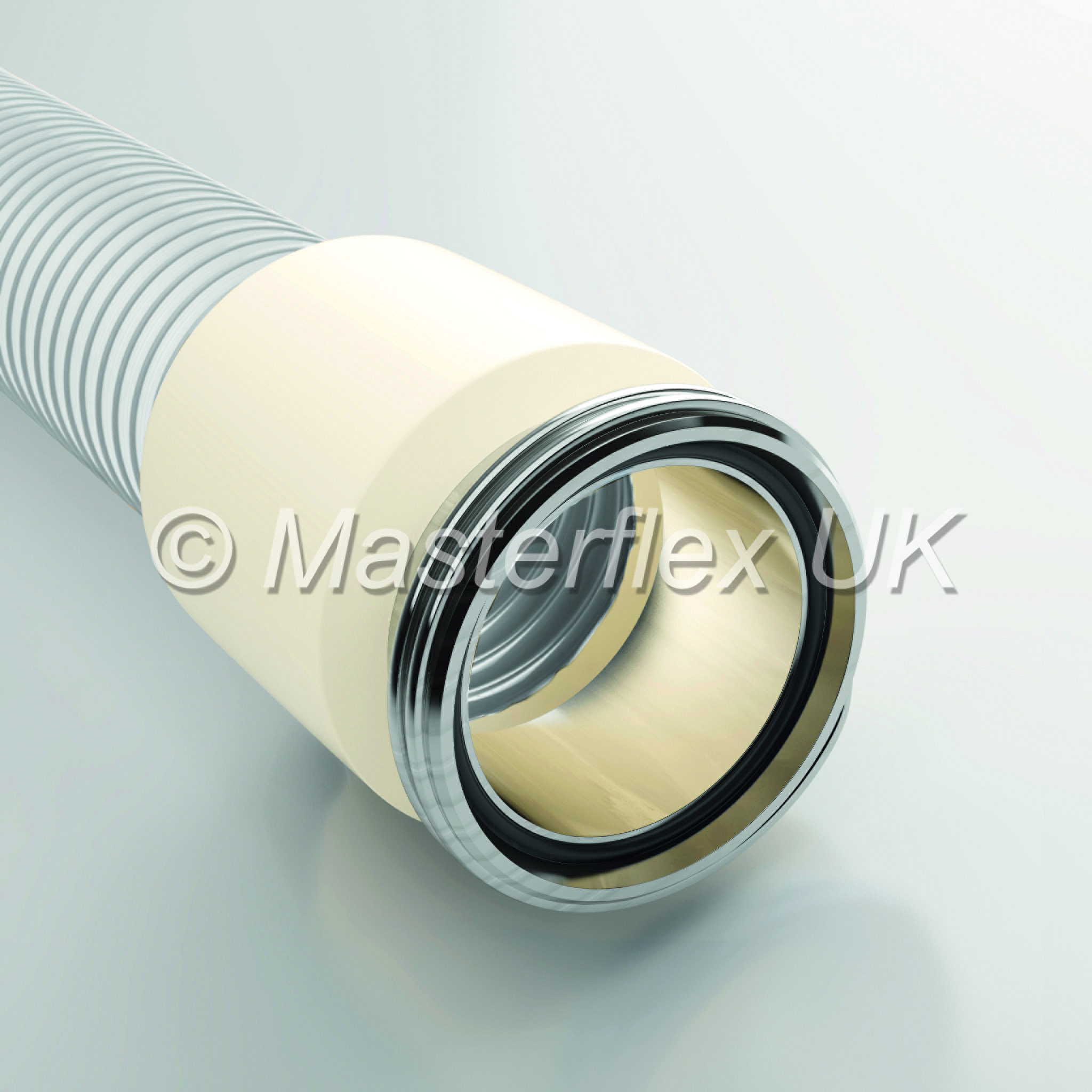

Threaded Dairy Hose Sockets:
Material
• colour: white
• collar: food-grade polyurethane acc. to EU directive 10/2011 and BfR XXXIX
• threaded hose sockets according to DIN 11851: stainless steel
• ring seal: NBR, colour: blue
Applications
• Cast-on pipe screw connection according to DIN 11851 for Master-PUR Food hoses
• These threaded dairy hose sockets are for solid, liquid and gaseous media in food, pharmaceuticals and chemicals industries
Properties
• watertight
• rust-free
• PU-sprue: approved for direct contact with foodstuffs according to EU directives 10/2011, 1935/2004 (German Consumer Goods Board) and their latest amendments 1282/2011,
1183/2012, 202/2014 and 2015/174 suitable for dry, watery, acidic, fatty as well as alcoholic foodstuffs (excluding spirits), acc. to the certificate
• good flow characteristics
• threaded supports: materials according to food industry regulations DIN 11851
• odourless/tasteless
• good chemical resistance
•dissipation of electrostatic charges via grounding connection between hose and valve/fitting
• high tensile strength
Temperature Range
• -40°C to +90°C
• peaks to +125°C
Available on request
In aseptic version according to DIN 11864-1, as weld-on version, pressed, other material.
DN | access DS | thread (DG) acc. to DIN 405-1 | weight/piece incl. cast-on section | old article no. cast-on section | new article no. cast-on section | old article no. hose thread connection | new article no. hose thread connection | old article no. cone socket | new article no. cone socket |
kg | |||||||||
32 | 32 | RD 58×1/6 | 0.46 | 528-032-510 | 5376 | 648-032-801 | 5378 | 648-032-802 | 5377 |
38 | 40 | RD 65×1/6 | 0.5 | 528-038-510 | 5380 | 648-038-801 | / | 648-038-802 | 5381 |
40 | 40 | RD 65×1/6 | 0.58 | 528-040-510 | 5384 | 648-040-801 | / | 648-040-802 | 5498 |
50 | 50 | RD 78×1/6 | 0.72 | 528-050-510 | 5389 | 648-050-801 | 5391 | 648-050-802 | 5392 |
65 | 65 | RD 95×1/6 | 0.97 | 528-065-510 | 5405 | 648-065-801 | 5520 | 648-065-802 | 5404 |
75 | 80 | RD 110×1/4 | 1.2 | 528-075-510 | 5421 | 648-075-801 | / | 648-075-802 | 5420 |
80 | 80 | RD 110×1/4 | 1.3 | 528-080-510 | 5427 | 648-080-801 | 5528 | 648-080-802 | 5426 |
100 | 100 | RD 130×1/4 | 2.1 | 528-100-510 | 5435 | 648-100-801 | 5446 | 648-100-802 | 5434 |
125 | 125 | RD 160×1/4 | 2.63 | 528-125-510 | 5450 | 648-125-801 | / | 648-125-802 | 5449 |
150 | 150 | RD 190×1/4 | 3.4 | 528-150-510 | 5466 | 648-150-801 | / | 648-150-802 | 5470 |
All data refers to a medium and ambient temperature of +20 °C. Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 90 °C |
Diameter Range | 32-150 mm |
See also different: | Metal Hose Connectors |
