Master Clip Hypalon: Flexible ducting, Hypalon/polyester fabric ducting, external galvanised steel helix. +175ºC (Intermittent 190ºC); good for automotive manufacturing, extractor units, exhaust gas, as a standard industrial hose.
Product Description

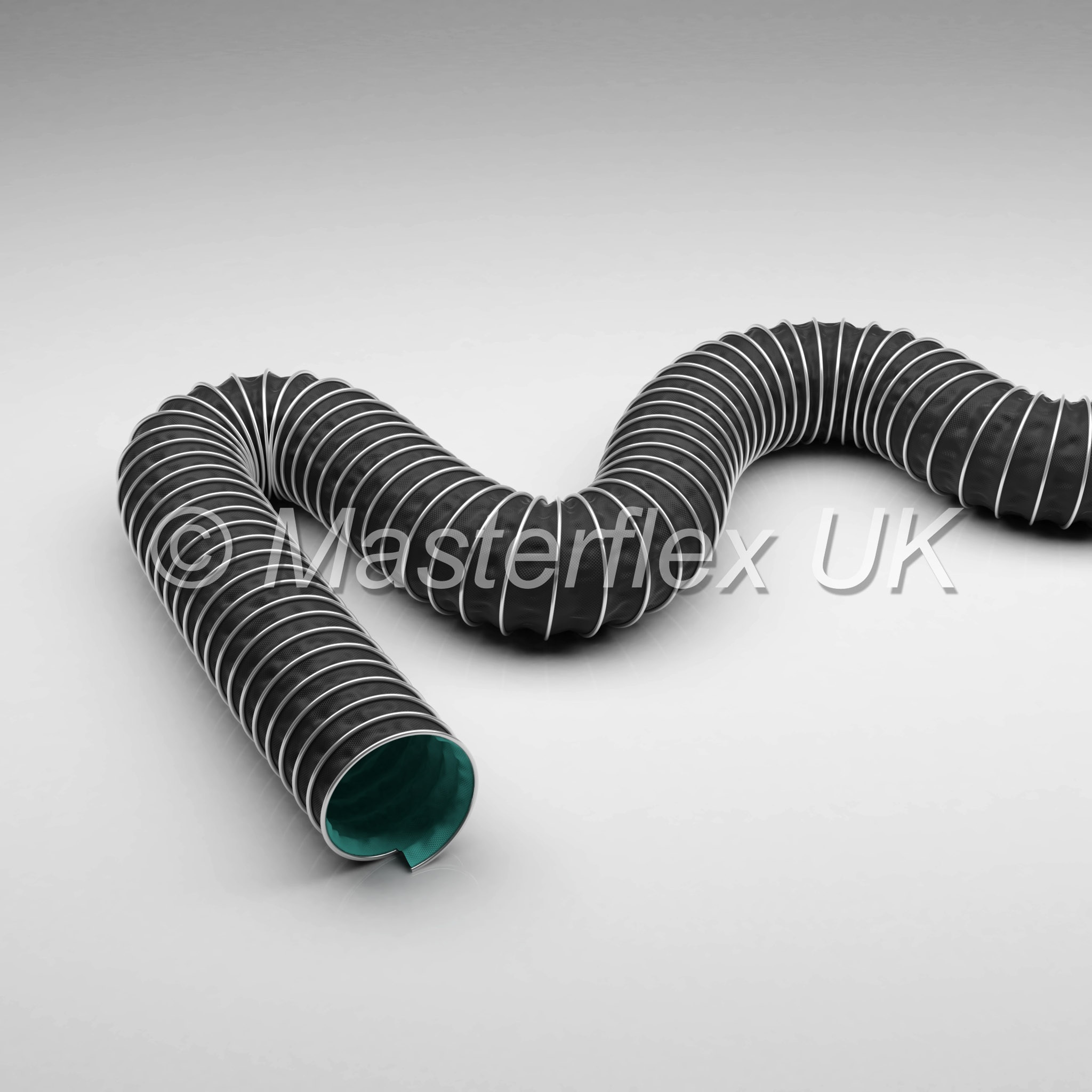

Master Clip Hypalon
Material
1 clip profile spiral: hot-dip galvanised steel band
2 wall: HYPALON®-coated polyester fabric
Description
We offer this Chemical Resistant High-Temperature Hose that is great for industrial heating, Chemical Fumes, Solvent Fumes, Steam and more.
• Hypalon coated polyester fabric ducting
• External galvanised steel helix
Properties
• Outer helix protects against abrasion and scuffing
• hardly inflammable
• increased temperature resistance
• extremely compressible to approx. 1:6
• outer chafing protection spiral
• vibration-proof
• excellent UV / ozone resistance
• smallest bending radius
• highly flexible
• very good chemical resistance
• high tension-proof connection of wall-lining and spiral via a special clamp mechanism
• extremely lightweight
Applications
• industrial heating/ventilation
• chemical fumes
• solvent fumes
• industrial fumes
• steam
• air-conditioning and ventilation systems
• engine manufacturing
• exhaust gas extraction
• suction of aggressive media
• transport of hot and cold air
• granulate drying
• standard industrial hose
• automotive manufacturing
• low pressure range
• extractor units
Colour
Black
Size Range
50mm to 900mm
Temp Range
-40ºC +175ºC (intermittent to +190ºC)
Options
• Special diameters
• Other lengths available on request
Master Clip HYPALON Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
DN | op. pressure | vacuum | bend radius | weight/m | old article no. | new article no. | standard length | max. production length |
bar | bar | mm | kg | m | m | |||
50 | 0.9 | 0.39 | 30 | 0.4 | 221-050-x | 000273-50-x | 10 | 10 |
55 | 0.85 | 0.32 | 33 | 0.4 | 221-055-x | 000273-55-x | 10 | 10 |
60 | 0.78 | 0.27 | 36 | 0.5 | 221-060-x | 000273-60-x | 10 | 10 |
65 | 0.68 | 0.23 | 39 | 0.5 | 221-065-x | 000273-65-x | 10 | 10 |
70 | 0.67 | 0.2 | 42 | 0.5 | 221-070-x | 000273-70-x | 10 | 10 |
75 | 0.62 | 0.18 | 45 | 0.6 | 221-075-x | 000273-75-x | 10 | 15 |
80 | 0.61 | 0.15 | 48 | 0.6 | 221-080-x | 000273-80-x | 10 | 15 |
90 | 0.56 | 0.12 | 54 | 0.6 | 221-090-x | 000273-90-x | 10 | 15 |
100 | 0.51 | 0.1 | 60 | 0.6 | 221-100-x | 000273-100-x | 10 | 15 |
110 | 0.48 | 0.08 | 66 | 0.7 | 221-110-x | 000273-110-x | 10 | 15 |
120 | 0.36 | 0.07 | 72 | 0.7 | 221-120-x | 000273-120-x | 10 | 15 |
125 | 0.33 | 0.06 | 75 | 0.8 | 221-125-x | 000273-125-x | 10 | 15 |
130 | 0.28 | 0.06 | 78 | 0.8 | 221-130-x | 000273-130-x | 10 | 15 |
140 | 0.25 | 0.05 | 84 | 0.8 | 221-140-x | 000273-140-x | 10 | 15 |
150 | 0.22 | 0.04 | 90 | 0.9 | 221-150-x | 000273-150-x | 10 | 15 |
160 | 0.21 | 0.04 | 96 | 0.9 | 221-160-x | 000273-160-x | 10 | 15 |
170 | 0.19 | 0.03 | 102 | 0.9 | 221-170-x | 000273-170-x | 10 | 15 |
175 | 0.185 | 0.03 | 105 | 1 | 221-175-x | 000273-175-x | 10 | 15 |
180 | 0.172 | 0.03 | 108 | 1 | 221-180-x | 000273-180-x | 10 | 15 |
200 | 0.148 | 0.03 | 120 | 1.2 | 221-200-x | 000273-200-x | 10 | 15 |
215 | 0.128 | 0.02 | 151 | 1.3 | 221-215-x | 000273-215-x | 10 | 15 |
225 | 0.115 | 0.02 | 158 | 1.4 | 221-225-x | 000273-225-x | 10 | 15 |
250 | 0.1 | 0.02 | 175 | 1.6 | 221-250-x | 000273-250-x | 10 | 15 |
275 | 0.08 | 0.01 | 193 | 1.9 | 221-275-x | 000273-275-x | 10 | 15 |
300 | 0.07 | 0.01 | 210 | 2.1 | 221-300-x | 000273-300-x | 10 | 15 |
315 | 0.062 | 0.01 | 221 | 2.1 | 221-315-x | 000273-315-x | 10 | 10 |
325 | 0.059 | 0.01 | 228 | 2.2 | 221-325-x | 000273-325-x | 10 | 10 |
350 | 0.056 | 0.01 | 245 | 2.5 | 221-350-x | 000273-350-x | 10 | 10 |
375 | 0.05 | 0.01 | 263 | 2.9 | 221-375-x | 000273-375-x | 10 | 10 |
400 | 0.047 | 0.01 | 280 | 3.1 | 221-400-x | 000273-400-x | 10 | 10 |
450 | 0.045 | 0.01 | 360 | 3.6 | 221-450-x | 000273-450-x | 10 | 10 |
500 | 0.043 | 0.01 | 400 | 4.1 | 221-500-x | 000273-500-x | 10 | 10 |
550 | 0.042 | 0.01 | 440 | 4.6 | 221-550-x | 000273-550-x | 10 | 10 |
600 | 0.039 | 0.01 | 480 | 5.1 | 221-600-x | 000273-600-x | 10 | 10 |
700 | 0.031 | 0.01 | 560 | 6 | 221-700-x | 000273-700-x | 6 | 6 |
800 | 0.022 | 0.01 | 640 | 6.9 | 221-800-x | 000273-800-x | 6 | 6 |
900 | 0.016 | 0.01 | 720 | 7.8 | 221-900-x | 000273-900-x | 6 | 6 |
All data refers to a medium and ambient temperature of +20 °C. *Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 175 ºC |
Diameter Range | 50-900 mm |
