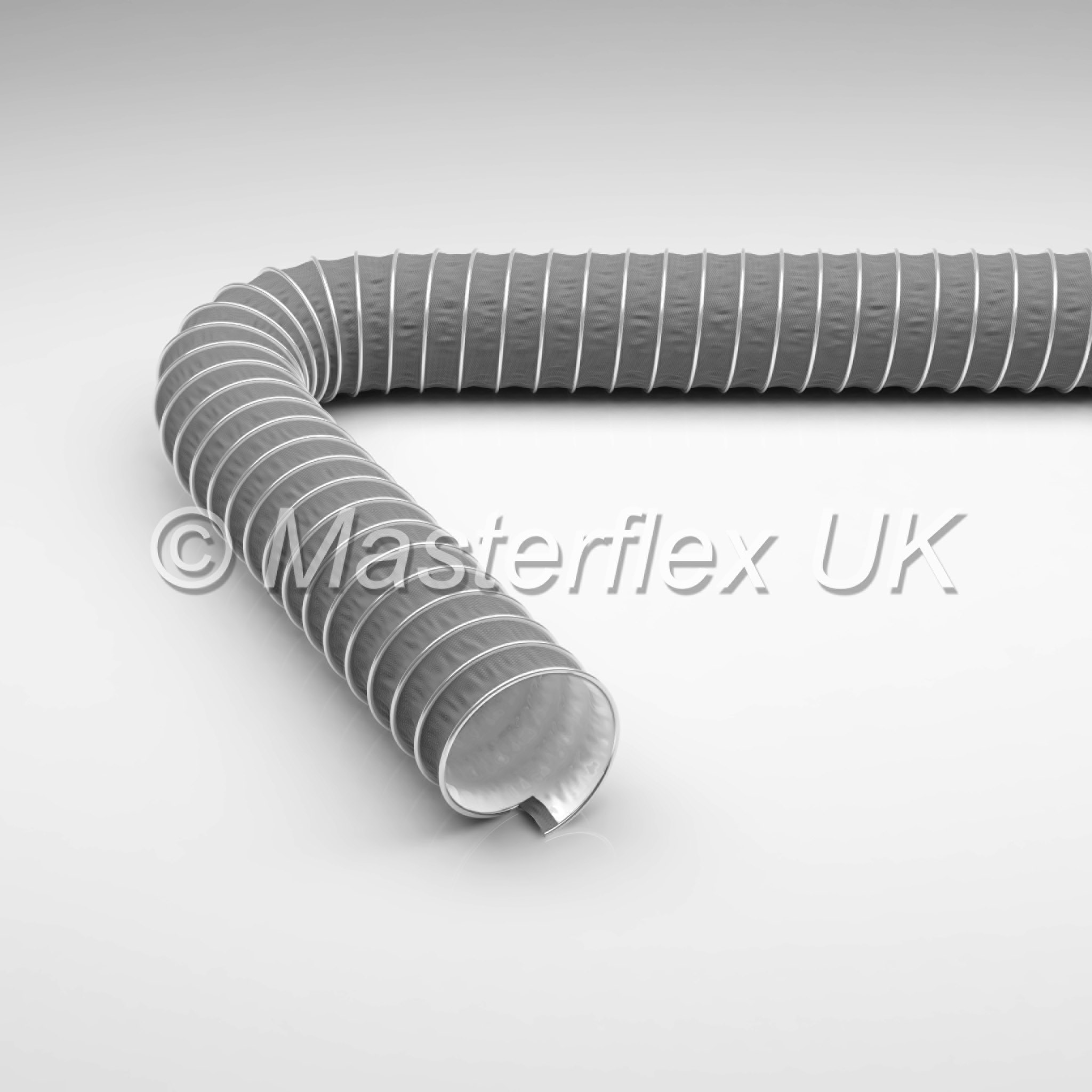

Master Clip PTFE S: Flexible ducting, PTFE lined Silicone/glass fabric ducting, external galvanised steel helix. +250ºC (Intermittent +270ºC)
Product Description
Master Clip PTFE S
A Chemical Resistant Ducting Hose is great for the extraction of gases and fumes.
• PTFE lined silicone-coated glass fabric ducting
• Reinforced with external galvanised steel helix
Properties
• Smallest bending radii
• Highly flexible
• Outer helix protects against abrasion and scuffing during installation
• UV and ozone resistant
• Excellent chemical resistance
• Cold and heat-resistant
• Weather-proof
• Optimum medium flow characteristics
• Robust outer wall material
• Anti-adhesive internal wall lining material
• High tension-proof connection of wall-lining and spiral via special clamp mechanisms
• PTFE: no health risk
Applications
• Extraction of corrosive gases
• Extraction of chemical and solvent fumes
• Pharmaceutical industry
• Chemicals
• Low-pressure range
• Suction and conveyance of aggressive media, explosive gases and fumes
• Paint mist extraction
• Paint, wood and paper industry
• Solvent extraction
Colour
Silver grey
Size Range
50mm to 900mm
Temp Range
-70ºC to +250ºC (intermittent to +270ºC).
Options
• Special diameters possible
• Outer helix available in stainless steel
• All Other Masterflex Chemical Resistant Hoses
• Chemical Hoses common in the Chemical Industry
Master Clip PTFE S Hose Data Sheet
Download Masterflex Chemical Resistance Data Sheet
Learn More About Chemical Resistance
DN | op. pressure | vacuum | bend radius | weight/m | old article no. | new article no. | standard length | max. production length |
bar | bar | mm | kg | m | m | |||
50 | 0.85 | 0.35 | 30 | 0.5 | 252-050-x | 000361-050-x | 10 | 10 |
55 | 0.78 | 0.29 | 33 | 0.5 | 252-055-x | 000361-055-x | 10 | 10 |
60 | 0.68 | 0.24 | 36 | 0.6 | 252-060-x | 000361-060-x | 10 | 10 |
65 | 0.59 | 0.21 | 39 | 0.7 | 252-065-x | 000361-065-x | 10 | 10 |
70 | 0.53 | 0.17 | 42 | 0.7 | 252-070-x | 000361-070-x | 10 | 10 |
75 | 0.47 | 0.15 | 45 | 0.8 | 252-075-x | 000361-075-x | 10 | 10 |
80 | 0.43 | 0.14 | 48 | 0.8 | 252-080-x | 000361-080-x | 10 | 10 |
90 | 0.355 | 0.11 | 54 | 0.9 | 252-090-x | 000361-090-x | 10 | 10 |
100 | 0.3 | 0.09 | 60 | 1 | 252-100-x | 000361-100-x | 10 | 10 |
110 | 0.258 | 0.07 | 66 | 1.1 | 252-110-x | 000361-110-x | 10 | 10 |
120 | 0.224 | 0.06 | 72 | 1.1 | 252-120-x | 000361-120-x | 10 | 10 |
125 | 0.21 | 0.05 | 75 | 1.2 | 252-125-x | 000361-125-x | 10 | 10 |
130 | 0.197 | 0.05 | 78 | 1.2 | 252-130-x | 000361-130-x | 10 | 10 |
140 | 0.175 | 0.05 | 84 | 1.3 | 252-140-x | 000361-140-x | 10 | 10 |
150 | 0.157 | 0.04 | 90 | 1.3 | 252-150-x | 000361-150-x | 10 | 10 |
160 | 0.14 | 0.03 | 96 | 1.3 | 252-160-x | 000361-160-x | 10 | 10 |
170 | 0.128 | 0.03 | 102 | 1.4 | 252-170-x | 000361-170-x | 10 | 10 |
175 | 0.123 | 0.03 | 105 | 1.4 | 252-175-x | 000361-175-x | 10 | 10 |
180 | 0.117 | 0.03 | 108 | 1.4 | 252-180-x | 000361-180-x | 10 | 10 |
200 | 0.099 | 0.02 | 120 | 1.6 | 252-200-x | 000361-200-x | 10 | 10 |
215 | 0.088 | 0.02 | 151 | 1.8 | 252-215-x | 000361-215-x | 10 | 10 |
225 | 0.082 | 0.02 | 158 | 2 | 252-225-x | 000361-225-x | 10 | 10 |
250 | 0.069 | 0.02 | 175 | 2.1 | 252-250-x | 000361-250-x | 10 | 10 |
275 | 0.059 | 0.01 | 193 | 2.3 | 252-275-x | 000361-275-x | 10 | 10 |
300 | 0.052 | 0.01 | 210 | 2.4 | 252-300-x | 000361-300-x | 10 | 10 |
315 | 0.048 | 0.01 | 221 | 2.6 | 252-315-x | 000361-315-x | 10 | 10 |
325 | 0.046 | 0.01 | 228 | 2.8 | 252-325-x | 000361-325-x | 10 | 10 |
350 | 0.04 | 0.01 | 245 | 3.3 | 252-350-x | 000361-350-x | 10 | 10 |
375 | 0.036 | 0.01 | 263 | 3.5 | 252-375-x | 000361-375-x | 10 | 10 |
400 | 0.033 | 0.01 | 280 | 3.8 | 252-400-x | 000361-400-x | 10 | 10 |
450 | 0.027 | 0.01 | 360 | 4.2 | 252-450-x | 000361-450-x | 10 | 10 |
500 | 0.023 | 0.01 | 400 | 4.7 | 252-500-x | 000361-500-x | 10 | 10 |
550 | 0.02 | 0.01 | 440 | 5.3 | 252-550-x | 000361-550-x | 10 | 10 |
600 | 0.017 | 0.01 | 480 | 5.9 | 252-600-x | 000361-600-x | 10 | 10 |
700 | 0.014 | 0.01 | 560 | 6.9 | 252-700-x | 000361-700-x | 6 | 6 |
800 | 0.011 | 0.01 | 640 | 7.6 | 252-800-x | 000361-800-x | 6 | 6 |
900 | 0.009 | 0.01 | 720 | 8.2 | 252-900-x | 000361-900-x | 6 | 6 |
All data refers to a medium and ambient temperature of +20 °C. *Available on request Subject to technical changes and colour deviations. |
Product Features
Maximum Temperature | 250 ºC |
Diameter Range | 50-900 mm |
