Master Clip SPARK

Product Description

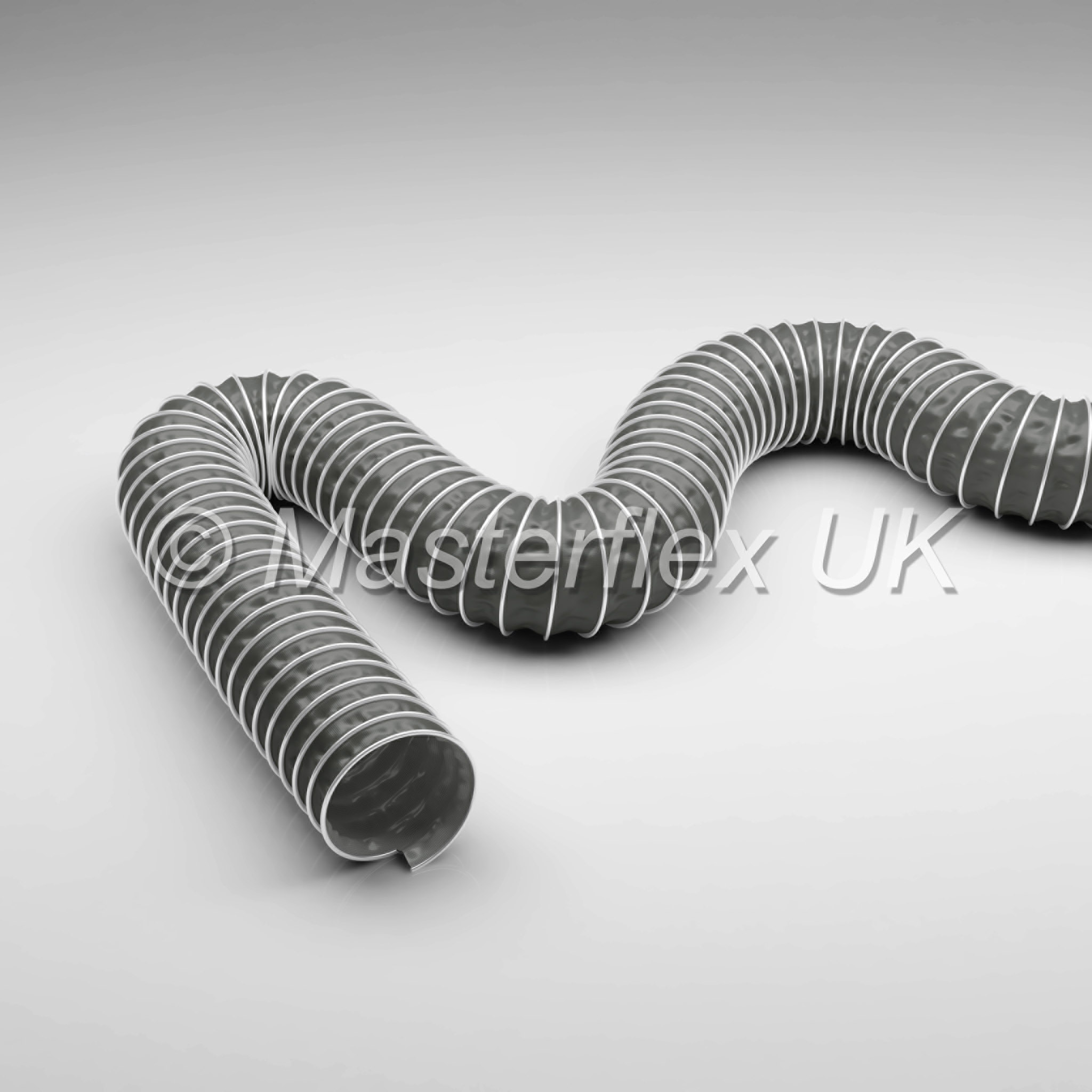

Master Clip SPARK

Description

We offer Welding Fume Extraction Hose (suitable for many industries)!

To Learn About Welding Fumes, Cancer, Health & Safety:

Read Our Welding Fume Extraction Post and Welding Fumes – Danger in the Workplace

• PVC coated glass fabric ducting
• Reinforced with external galvanised steel helix.

Fume Extraction Hose Properties

• Highly flexible and compressible
• Outer helix protects against abrasion and scuffing
• Fire retardant to M1 standard.

Fume Extraction Hose Application

Weld fume extraction in all industries (view all Welding Fume Extraction Hose)

Other applications:

• air-conditioning and ventilation systems
• air supply and extraction
• tent heating
• solder fume extraction
• low pressure range
• extractor units

Colour

Dark Grey

Size Range

50mm to 900mm

Temp Range

-20ºC to +90ºC (intermittent to +110ºC)

Options

• Special diameters
• Other lengths are available on request.

Master Clip SPARK Hose Data Sheet

Download Masterflex Chemical Resistance Data Sheet

Learn About Welding Fumes Being Classified As Carcinogenic

DNC4:J3C4:K41	op. pressure	vacuum	bend radius	weight/m	old article no.	new article no.	standard length	max. production length
	bar	bar	mm	kg			m	m
50	0.85	0.31	30	0.4	215-050-x	000264-050-x	10	10
55	0.78	0.26	33	0.4	215-055-x	000264-055-x	10	10
60	0.68	0.22	36	0.5	215-060-x	000264-060-x	10	10
65	0.59	0.19	39	0.5	215-065-x	000264-065-x	10	10
70	0.53	0.16	42	0.5	215-070-x	000264-070-x	10	10
75	0.47	0.14	45	0.6	215-075-x	000264-075-x	10	15
80	0.43	0.12	48	0.6	215-080-x	000264-080-x	10	20
90	0.355	0.1	54	0.6	215-090-x	000264-090-x	10	20
100	0.3	0.08	60	0.6	215-100-x	000264-100-x	10	25
110	0.258	0.07	66	0.7	215-110-x	000264-110-x	10	25
120	0.224	0.06	72	0.7	215-120-x	000264-120-x	10	25
125	0.21	0.05	75	0.8	215-125-x	000264-125-x	10	25
130	0.197	0.05	78	0.8	215-130-x	000264-130-x	10	25
140	0.175	0.04	84	0.8	215-140-x	000264-140-x	10	25
150	0.157	0.04	90	0.9	215-150-x	000264-150-x	10	25
160	0.14	0.03	96	0.9	215-160-x	000264-160-x	10	25
170	0.128	0.03	102	0.9	215-170-x	000264-170-x	10	25
175	0.123	0.03	105	1	215-175-x	000264-175-x	10	25
180	0.117	0.02	108	1	215-180-x	000264-180-x	10	25
200	0.099	0.02	120	1.2	215-200-x	000264-200-x	10	25
215	0.088	0.02	151	1.3	215-215-x	000264-215-x	10	25
225	0.082	0.02	158	1.4	215-225-x	000264-225-x	10	25
250	0.069	0.01	175	1.6	215-250-x	000264-250-x	10	25
275	0.059	0.01	193	1.9	215-275-x	000264-275-x	10	25
300	0.052	0.01	210	2.1	215-300-x	000264-300-x	10	25
315	0.048	0.01	221	2.1	215-315-x	000264-315-x	10	15
325	0.046	0.01	228	2.2	215-325-x	000264-325-x	10	15
350	0.04	0.01	245	2.5	215-350-x	000264-350-x	10	15
375	0.036	0.01	263	2.9	215-375-x	000264-375-x	10	15
400	0.033	0.01	280	3.1	215-400-x	000264-400-x	10	15
450	0.027	0	360	3.6	215-450-x	000264-450-x	10	15
500	0.023	0.01	400	4.1	215-500-x	000264-500-x	10	10
550	0.02	0.01	440	4.6	215-550-x	000264-550-x	10	10
600	0.017	0.01	480	5.1	215-600-x	000264-600-x	10	10
700	0.013	0.01	560	6	215-700-x	000264-700-x	10	10
800	0.011	0.01	640	6.9	215-800-x	000264-800-x	10	10
900	0.009	0.01	720	7.8	215-900-x	000264-900-x	10	10
All data refers to a medium and ambient temperature of +20 °C. *Available on request Subject to technical changes and colour deviations.
