Combiflex PU Fixed Flange

Product Description

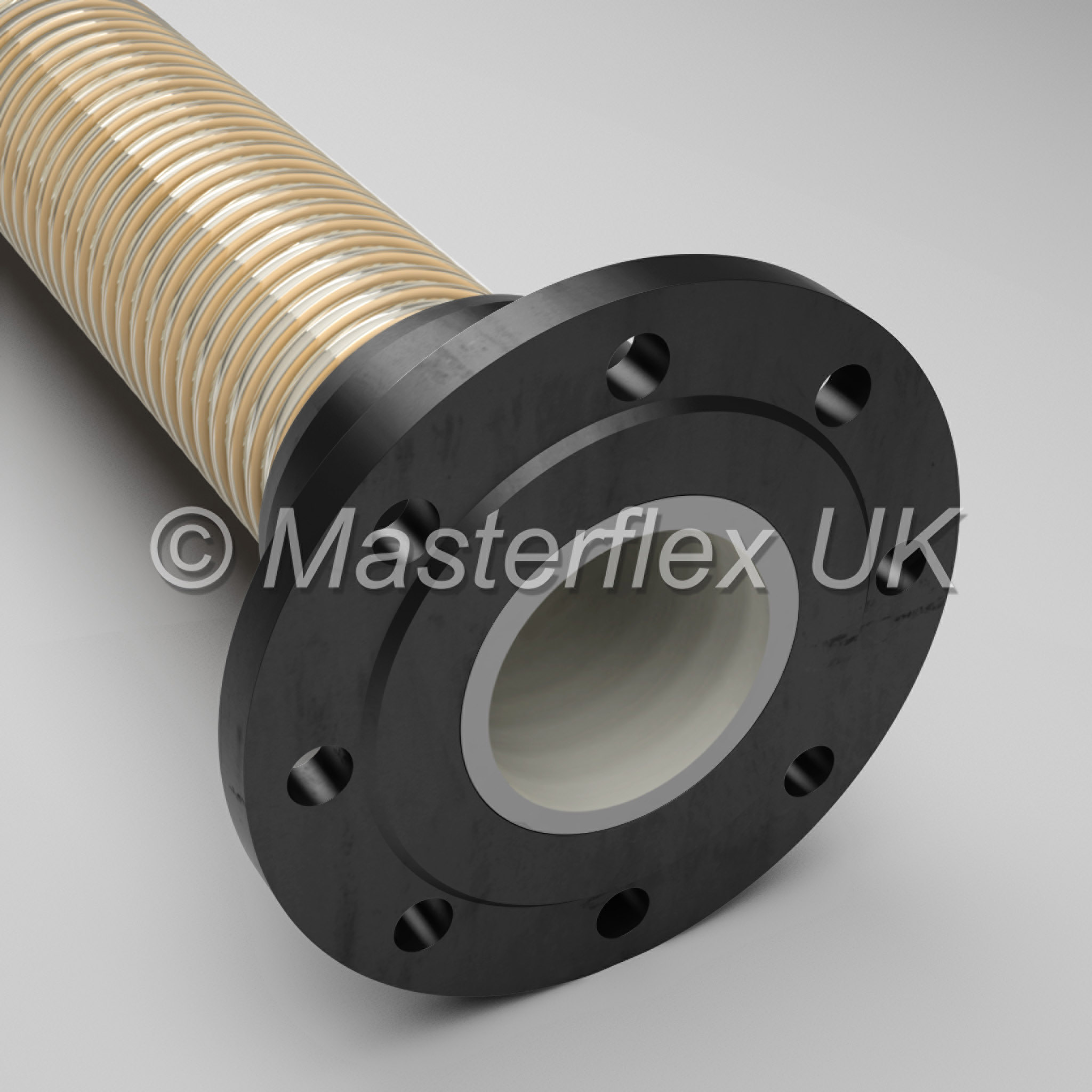

Screwed Flanges:

Material

1 highly abrasion-resistant polyurethane
2 colour: black

Applications

Plastic screwed flanges for the hose types Master-PUR L/H/HX

Properties

• abrasion and microbe-resistant
• lightweight
• connection option without the adjustable constriction of the cross-section
• high tension-proof
• reusable and exchangeable
• simple mounting
• shock-proof
• pressure level PN 6 at DN 200 or PN 10/16 at all other DN
• dissipation of electrostatic charge via integrated earthing plate available for prefixed version

Temperature Range

• -40°C to +90°C
• peaks to +125°C

Available on request

Available on request in a permanently mounted version for watertight, tensile strengthened connections, other DN sizes, coloured.

DN hose	total length	weight piece	D: outer Ø flange	Da: outer Ø socket	t1: screw-in depth of hose	di: inner Ø pipe	for Master PUR type	old article no.	new article no.
	mm	Kg	mm	mm	mm	mm
50	57	50	125	0.4	75	66	L	560-050-057	1857
50	60.3	50	125	0.4	75	66	L	560-050-060	1858
65	76.1	65	145	0.5	90	76	L	560-065-076	1859
65	76.1	70	145	0.55	90	76	L	560-070-076	1860
80	88.9	75	160	0.6	105	76	L	560-075-088	1861
80	88.9	80	160	0.65	105	76	L	560-080-088	1862
100	108	100	180	0.8	131	86	L	560-100-108	1863
100	114.3	100	180	0.8	131	86	L	560-100-114	1864
125	133	120	210	0.95	156	92	L	560-120-133	1865
125	139.7	120	210	0.95	156	92	L	560-120-139	1866
125	133	125	210	1	156	92	L	560-125-133	1867
125	139.7	125	210	1	156	92	L	560-125-139	1868
150	159	140	240	1.2	184	98	L	560-140-159	1869
150	159	150	240	1.4	184	98	L	560-150-159	1870
150	168.3	150	240	1.4	184	98	L	560-150-168	1871
150	177.8	160	240	1.5	184	103	L	560-160-168	1872
175	193.7	180	270	1.8	210	103	L	560-180-193	1873
200	219.1	200	295	2	210	103	L	560-200-219	1874
250	267	250	350	3	292	118	L	560-250-267	1876
250	273	250	350	3	292	118	L	560-250-273	1877
300	323.9	300	400	4	344	123	L	560-300-323	1879
50	57	50	125	0.4	75	66	H	561-050-057	1881
50	60.3	50	125	0.4	75	66	H	561-050-060	1882
65	76.1	65	145	0.5	90	76	H	561-065-076	1883
65	76.1	70	145	0.55	90	76	H	561-070-076	6476
80	88.9	75	160	0.6	105	76	H	561-075-088	1884
80	88.9	80	160	0.65	105	76	H	561-080-088	1885
100	108	100	180	0.8	131	86	H	561-100-108	1886
100	114.3	100	180	0.8	131	86	H	561-100-114	1887
125	133	120	210	0.95	156	92	H	561-120-133	6132
125	139.7	120	210	0.95	156	92	H	561-120-139	1888
125	133	125	210	1	156	92	H	561-125-133	1889
125	139.7	125	210	1	156	92	H	561-125-139	1890
150	159	140	240	1.2	184	98	H	561-140-159	/
150	159	150	240	1.4	184	98	H	561-150-159	1891
150	168.3	150	240	1.4	184	98	H	561-150-168	1892
150	177.8	160	240	1.5	184	103	H	561-160-168	6780
175	193.7	180	270	1.8	210	103	H	561-180-193	1893
200	219.1	200	295	2	210	103	H	561-200-219	1894
250	267	250	350	3	292	118	H	561-250-267	1896
250	273	250	350	3	292	118	H	561-250-273	1897
300	323.9	300	400	4	344	123	H	561-300-323	1899
50	57	50	125	0.4	75	66	HX	563-050-057	1912
50	60.3	50	125	0.4	75	66	HX	563-050-060	1913
65	76.1	65	145	0.5	90	76	HX	563-065-076	1914
65	76.1	70	145	0.55	90	76	HX	563-070-076	1915
80	88.9	75	160	0.6	105	76	HX	563-075-088	1916
80	88.9	80	160	0.65	105	76	HX	563-080-088	1917
100	108	100	180	0.8	131	86	HX	563-100-108	1918
100	114.3	100	180	0.8	131	86	HX	563-100-114	1919
125	133	120	210	0.95	156	92	HX	563-120-133	1921
125	139.7	120	210	0.95	156	92	HX	563-120-139	/
125	133	125	210	1	156	92	HX	563-125-133	1922
125	139.7	125	210	1	156	92	HX	563-125-139	1923
150	159	140	240	1.2	184	98	HX	563-140-159	1924
150	159	150	240	1.4	184	98	HX	563-150-159	1925
150	168.3	150	240	1.4	184	98	HX	563-150-168	1926
150	177.8	160	240	1.5	184	103	HX	563-160-168	1927
175	193.7	180	270	1.8	210	103	HX	563-180-193	1928
200	219.1	200	295	2	210	103	HX	563-200-219	1929
250	267	250	350	3	292	118	HX	563-250-267	1930
250	273	250	350	3	292	118	HX	563-250-273	1931
300	323.9	300	400	4	344	123	HX	563-300-323	1932
50	57	50	125	0.4	75	66	Performance	565-051-057	1941
50	60.3	50	125	0.4	75	66	Performance	565-051-060	6839
65	76.1	65	145	0.5	90	76	Performance	565-065-076	5976
65	76.1	70	145	0.55	90	76	Performance	565-070-076	6186
80	88.9	75	160	0.6	105	76	Performance	565-076-088	5957
80	88.9	80	160	0.65	105	76	Performance	565-080-088	1942
100	108	100	180	0.8	131	86	Performance	565-102-108	1943
100	114.3	100	180	0.8	131	86	Performance	565-102-114	1944
125	133	120	210	0.95	156	92	Performance	565-120-133	/
125	139.7	120	210	0.95	156	92	Performance	565-120-139	/
125	133	125	210	1	156	92	Performance	565-127-133	6115
125	139.7	125	210	1	156	92	Performance	565-127-139	5778
150	159	140	240	1.2	184	98	Performance	565-140-159	/
150	159	150	240	1.4	184	98	Performance	565-152-159	/
150	168.3	150	240	1.4	184	98	Performance	565-152-168	1945
150	177.8	160	240	1.5	184	103	Performance	565-160-168	/
All data refers to a medium and ambient temperature of +20 °C. Subject to technical changes and colour deviations.
